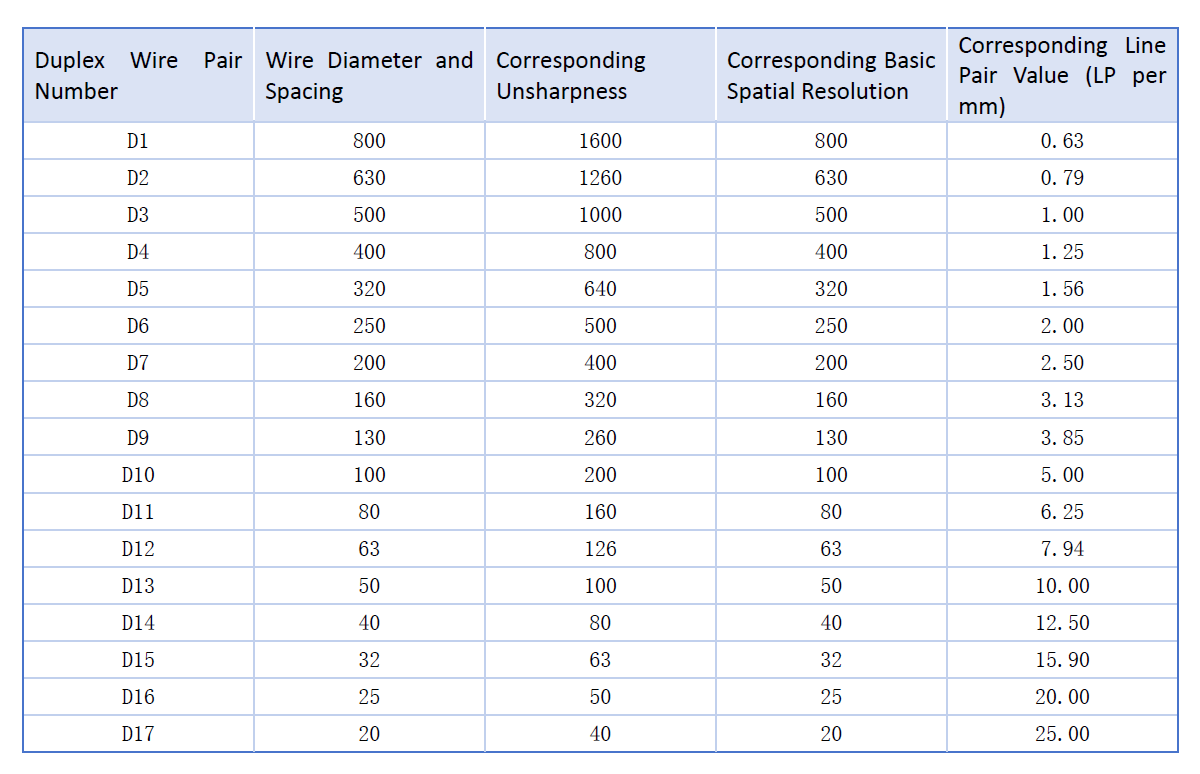

Duplex Wire Pair Number | D13 | D15 | D17 |
Item No | 11 00155 | 11 00160 | 11 00165 |
| SRb | Standard resolution version | High resolution version | Ultra high resolution version |
Corresponding Line Pair Value (LP per mm) | 10.00lp/mm | 15.90lp/mm | 25.00lp/mm |
Wire Diameter and Spacing | 50μm | 32μm | 20μm |
Dimension | 70x15x4 mm | 78.5 x15 x 4 mm | — |
|
|
|
