System Parameters
| Ray Machine | Model of X-ray Machine | EVO300D/1200 | Detector | Model of Detector | iStar4343M |
| Type of X-ray Machine | High Frequency Constant-voltage X-ray | Scintillator | CsI | ||
| Focal Spot Size | 3.0mm | Pixel Pitch | 100μm | ||
| Tube Voltage Range | 60kV~300kV | Pixel Matrix | 430mmX430mm | ||
| Tube Current Range | 0.5mA~6.5mA | Spatial Resolution | 5.0lp/mm | ||
| Power Supply | AC | Power Supply | Battery/AC | ||
| Weight | 36kg+13kg | Weight | 4.0kg |

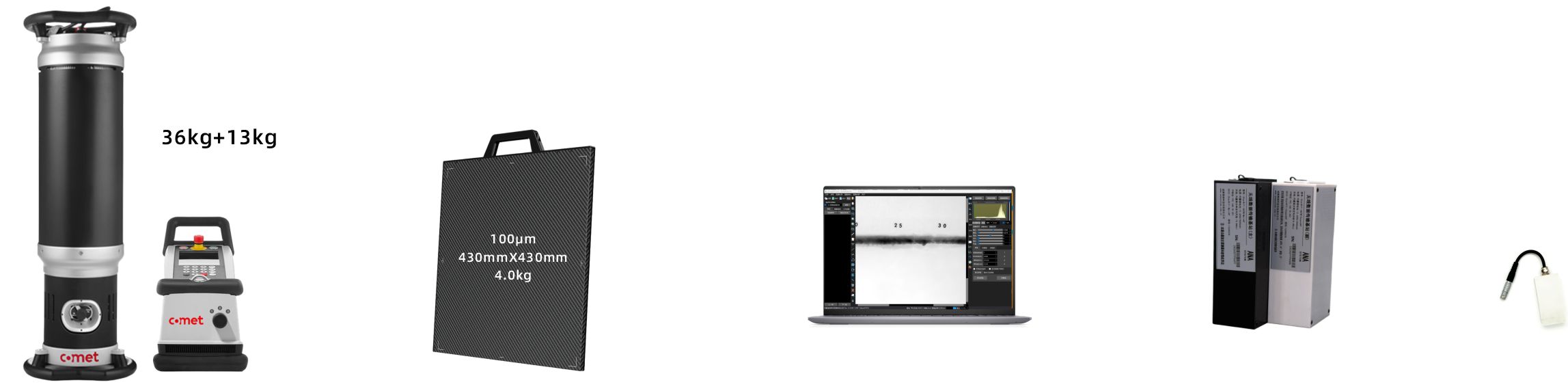

Standard Configuration
| Serial Number | Name | Model | Number |
| 1 | X-ray Machine | EVO300D/1200 | 1 |
| 2 | Wireless Dynamic FPD | iStar4343M | 1 |
| 3 | Digital Radiographic Imaging DR Acquisition and ProcesSing Software (Dongle) | XimageDR | 1 |
| 4 | Portable Wireless Router | iStarWiFi-867M | 1 set |
| 5 | Wireless Ray Controller | iStarTrigWiFi-EVO | 1 |
| 6 | Acquisition Computer | ThinkBook 16 | 1 |

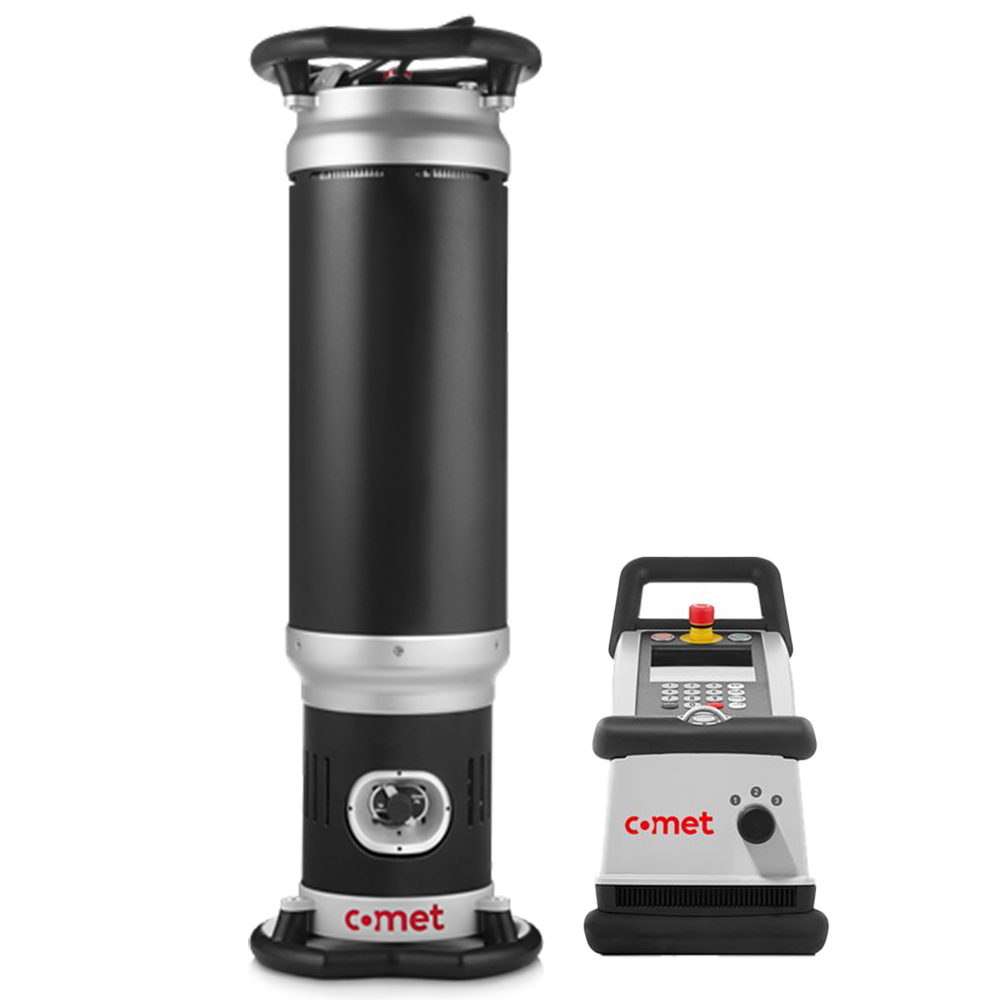

 | •X-ray radiation is generated only after high voltage startup •New electronic packaging with strong adaptability to equipment environments • Software wireless control • Battery powered, flexible and portable |

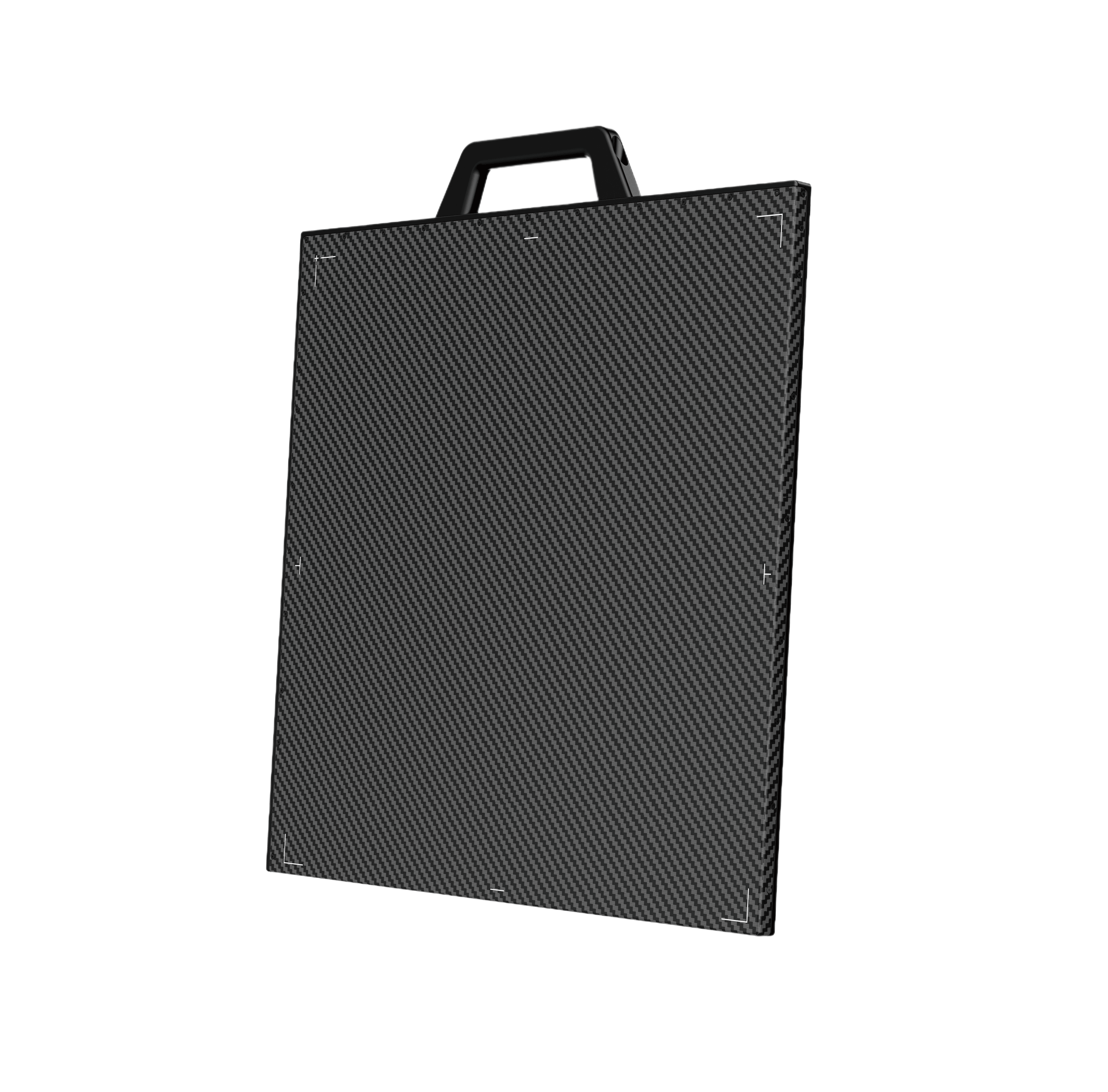

• Amorphous silicon wireless dynamic FPD • 100μm pixel pitch, with 16 bit ADC for more image details • Better image detail and lower exposure dose • Intelligent workflow and high endurance • Support 2.4GHz and 5.8GHz wireless transmission |  |
 | •Follow relevant standards such as NDT47013.11, GB/T35388, ISO19636, ASTM, etc •Long term upgrade service to update latest DR technology •Simplify the collection process and reduce training costs •Compatible with most detectors on the market, without repeated training •One click image enhancement requires no professional processing knowledge |

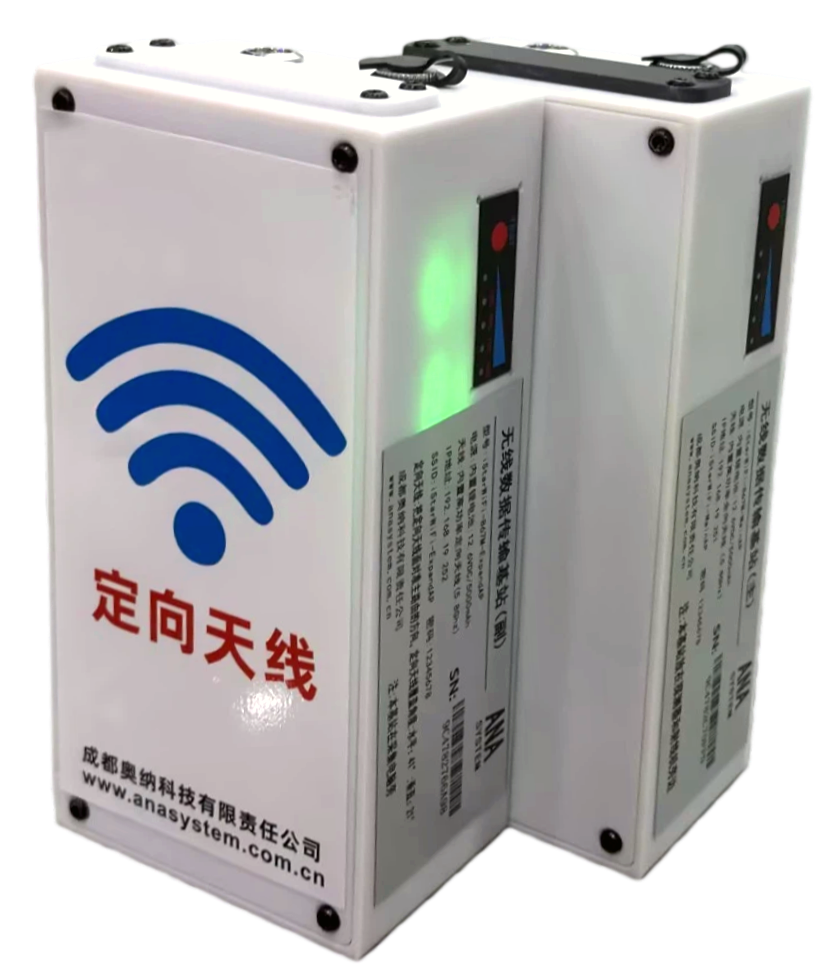

•5.8Ghz WiFi communication technology, small delay and large bandwidth •Endurance of over 8 hours, ensuring no need for external power supply on site •Support connection between main AP and extended AP, with a distance of 2km •Built in directional antenna ensures easy field operation •Dual gigabit network port, which can be directly connected to the detector |  |

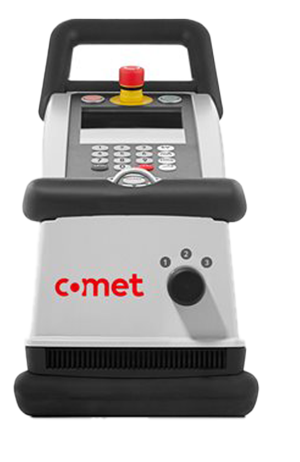

| •Control the X-ray machine via WiFi without wire connection •The X-ray machine is powered by the internal power supply without batteries •Built-in omni-directional antenna |
•Image acquisition by software control of ray machine and detector with one touch •No tedious synchronization process |  |
