System Parameters
| Ray Machine | Model of X-ray Machine | XPS150BSL | Detector | Model of Detector | iStar3543ZF | UAV | Takeoff Weight (with battery) | 9.75kg |
| Type of X-ray Machine | High Frequency Constant-voltage X-ray | Scintillator | CsI | Max Payload | 6kg | |||
| Focal Spot Size | 0.5mm | Pixel Pitch | 99μm | Max Ascent Speed | 10 m/s | |||
| Tube Voltage Range | 40kV~150kV | Pixel Matrix | 353mmX430mm | Max Flight Time (no wind) | 59 minutes | |||
| Tube Voltage Range | 0.2mA~1.0mA | Spatial Resolution | 5.0lp/mm | Max Takeoff Altitude | 7km | |||
| Power Supply | Battery/AC | Power Supply | Battery/AC | Max Range (no wind) | 49 km | |||
| Weight | 5.4kg | Weight | 3.0kg | Max Tilt Angle | 35° |
Standard Configuration
| Serial Number | Name | Model | Number |
| 1 | X-ray Machine | XPS150BSL | 1 |
| 2 | Wireless FPD | iStar3543ZF | 1 |

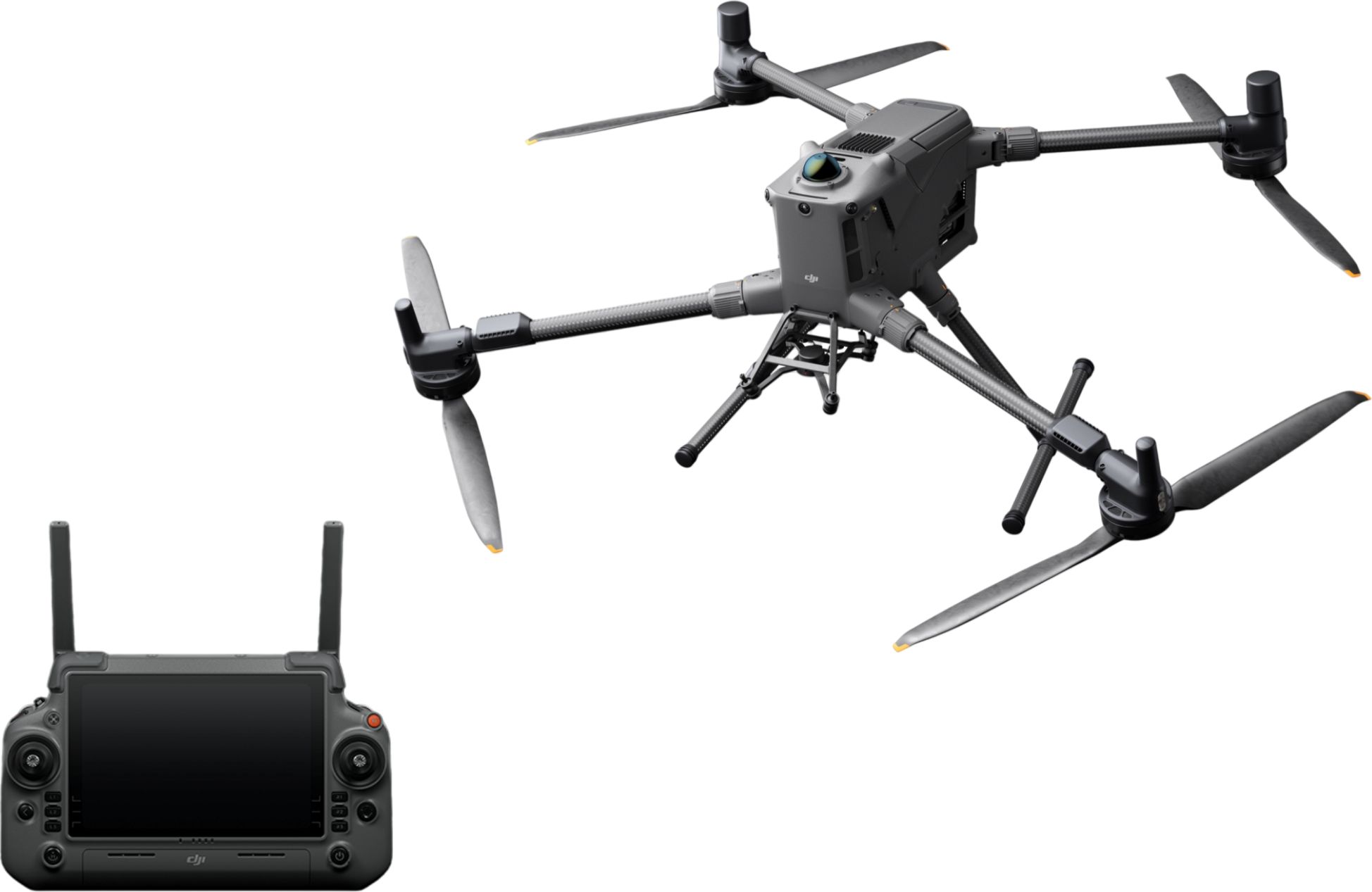

| 3 | UAV | DJI Matrice 400 | 2 set |
| 4 | Digital Radiographic Imaging DR Acquisition and ProcesSing Software (Dongle) | XimageDR | 1 |
| 5 | Portable Wireless Router | iStarWiFi-867M | 1 set |
| 6 | Wireless Ray Controller | iStarTrigWiFi-XPS | 1 |
| 7 | Acquisition Computer | ThinkBook 16 | 1 |

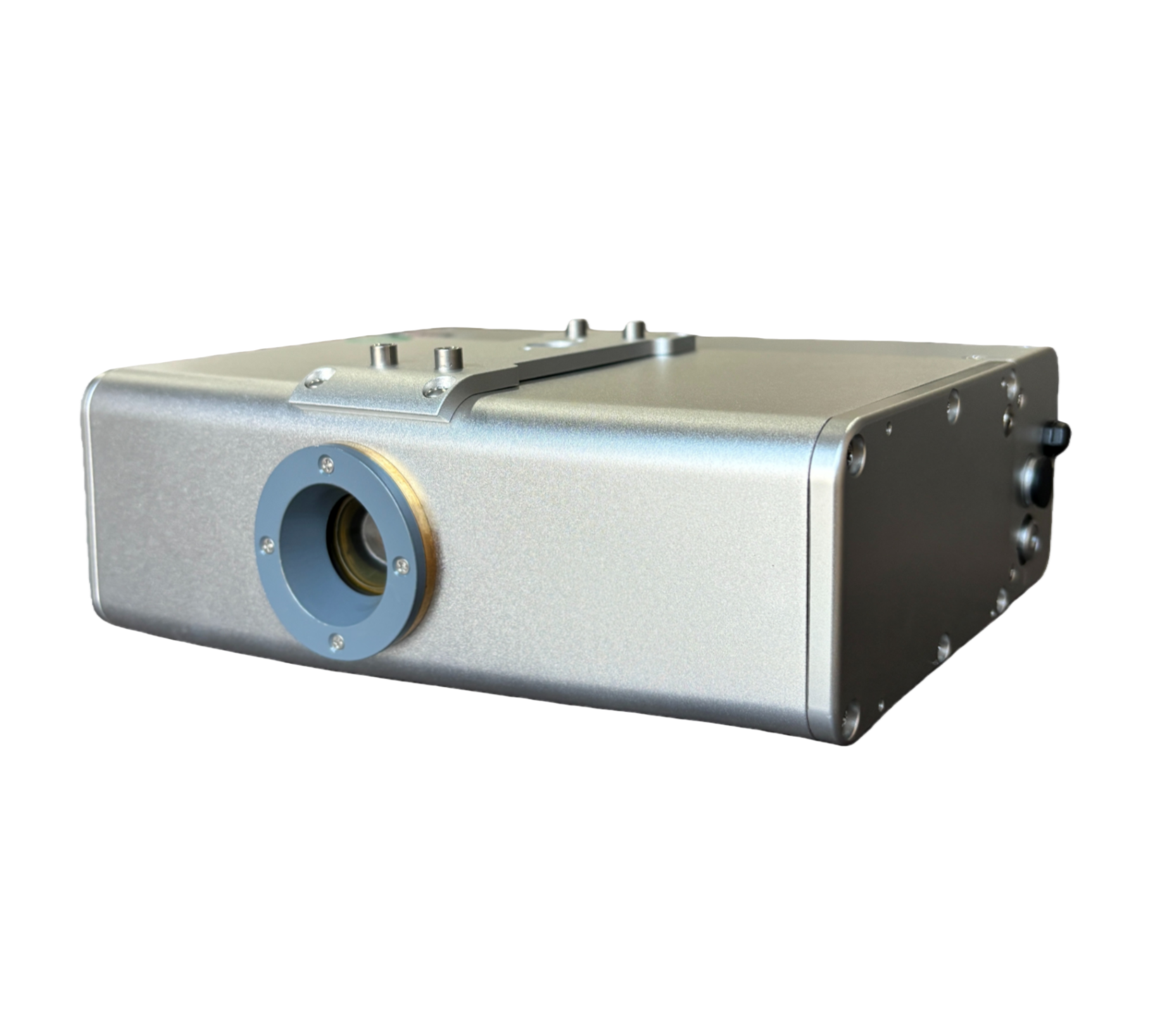

| •X-ray radiation is generated only after high voltage startup •New electronic packaging with strong adaptability to equipment environments • Software wireless control • Battery powered, flexible and portable |
• 59 minutes forward flight endurance with added load, 53 minutes hover • Maximum load of 6 kg, flight speed up to 25 m/s • Super image to image capability, powerful intelligence capabilities • Automated operations, high efficiency |
|

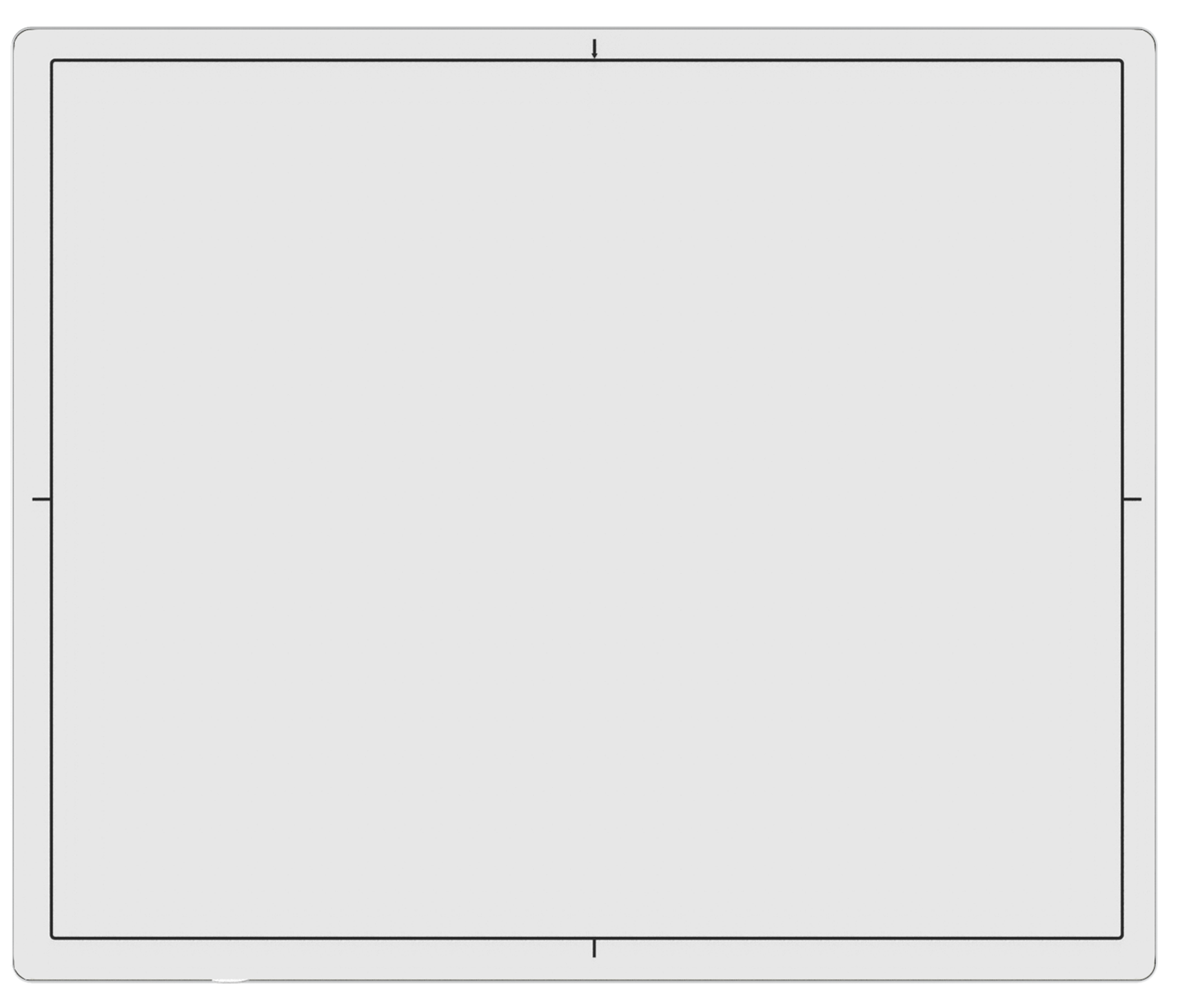

| • Amorphous silicon wireless static FPD • 99 μm pixel pitch, with 16 bit ADC for more image details • Better image detail and lower exposure dose • Intelligent workflow and high endurance • Support 2.4GHz and 5.8GHz wireless transmission |
•Follow relevant standards such as NDT47013.11, GB/T35388, ISO19636, ASTM, etc •Long term upgrade service to update latest DR technology •Simplify the collection process and reduce training costs •Compatible with most detectors on the market, without repeated training •One click image enhancement requires no professional processing knowledge |
|

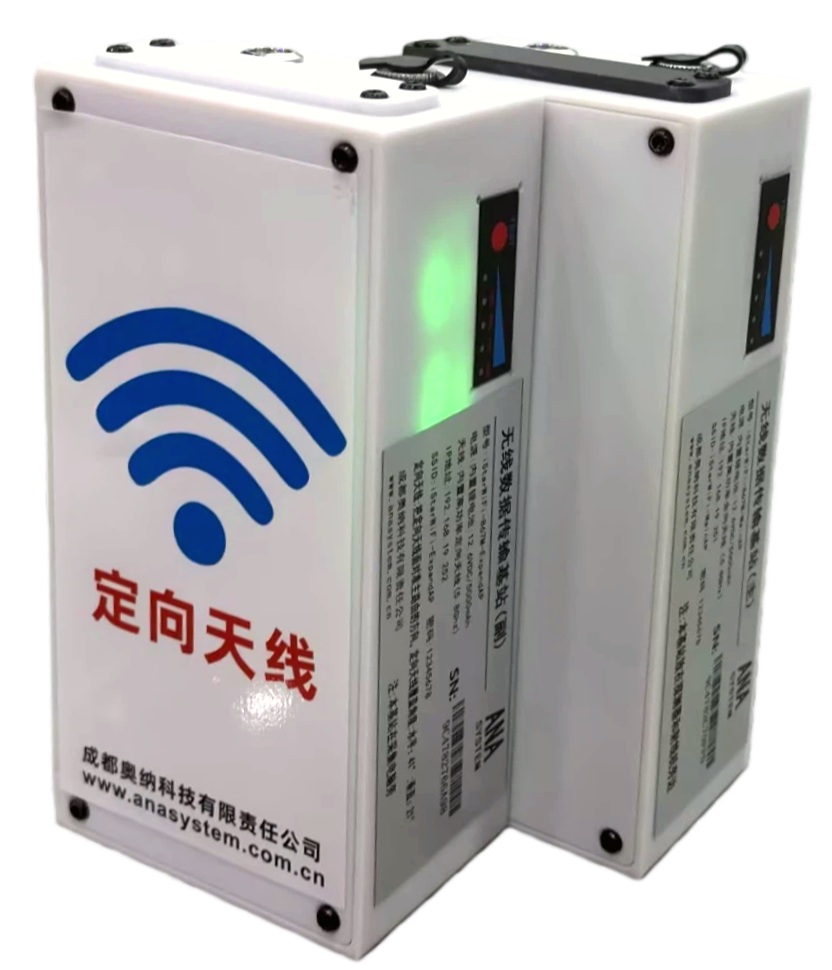

| •5.8Ghz WiFi communication technology, small delay and large bandwidth •Endurance of over 8 hours, ensuring no need for external power supply on site •Support connection between main AP and extended AP, with a distance of 1km •Built in directional antenna ensures easy field operation •Dual gigabit network port, which can be directly connected to the detector |

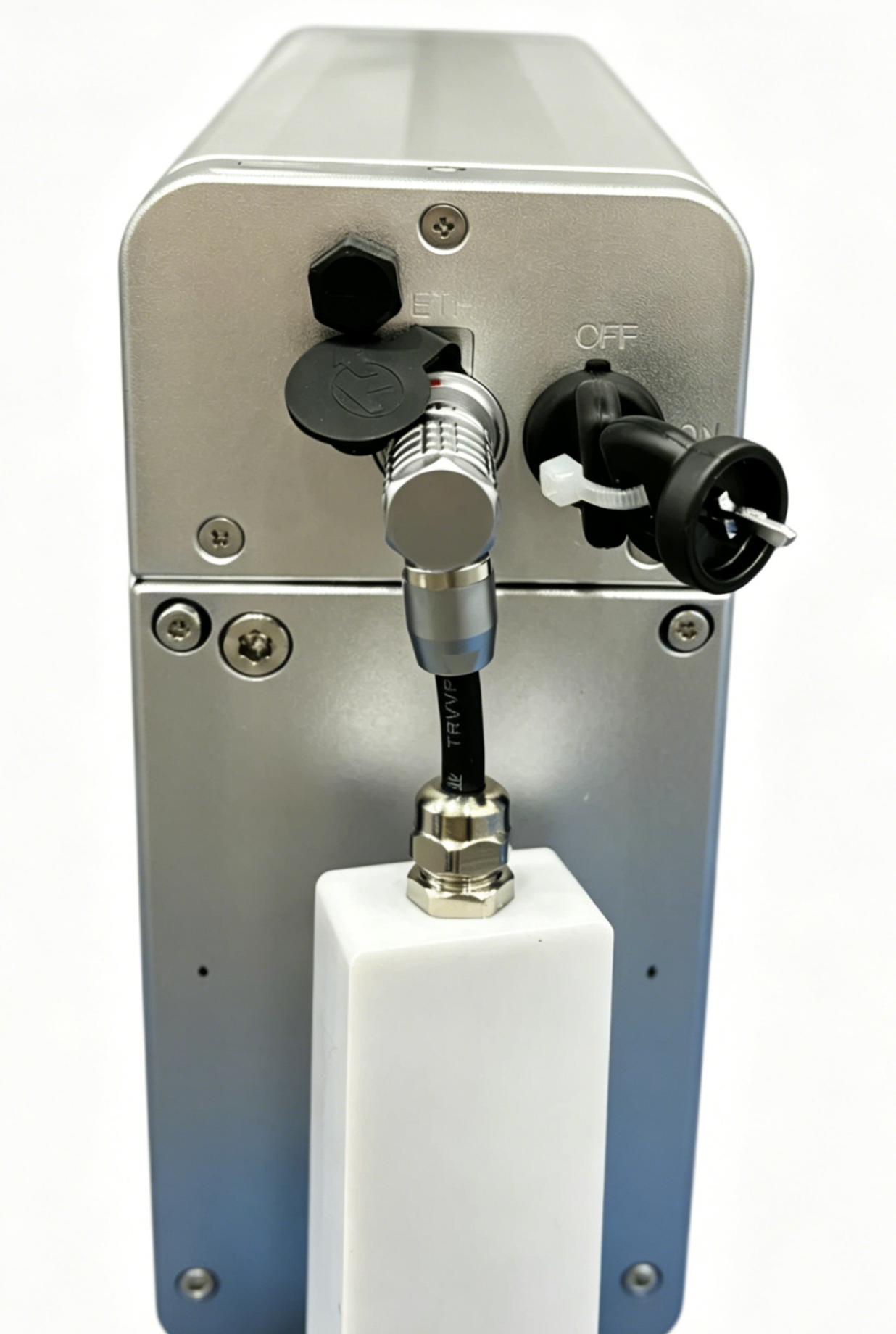

•Control the X-ray machine via WiFi without wire connection •The X-ray machine is powered by the internal power supply without batteries •Built-in omni-directional antenna |
|

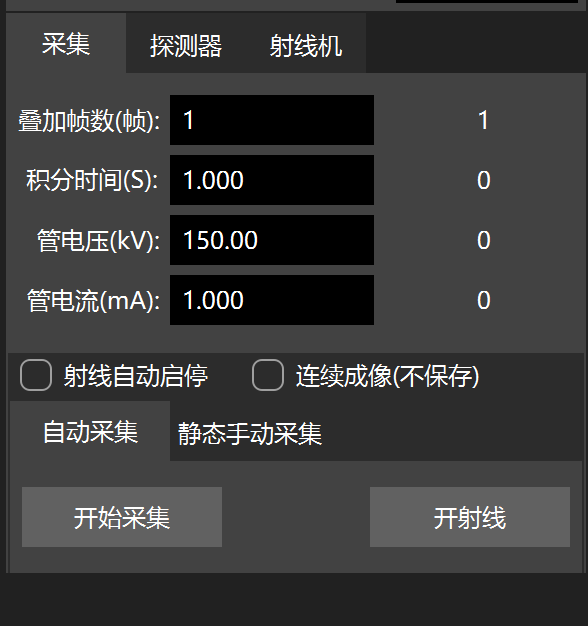

| •Image acquisition by software control of ray machine and detector with one touch •No tedious synchronization process |

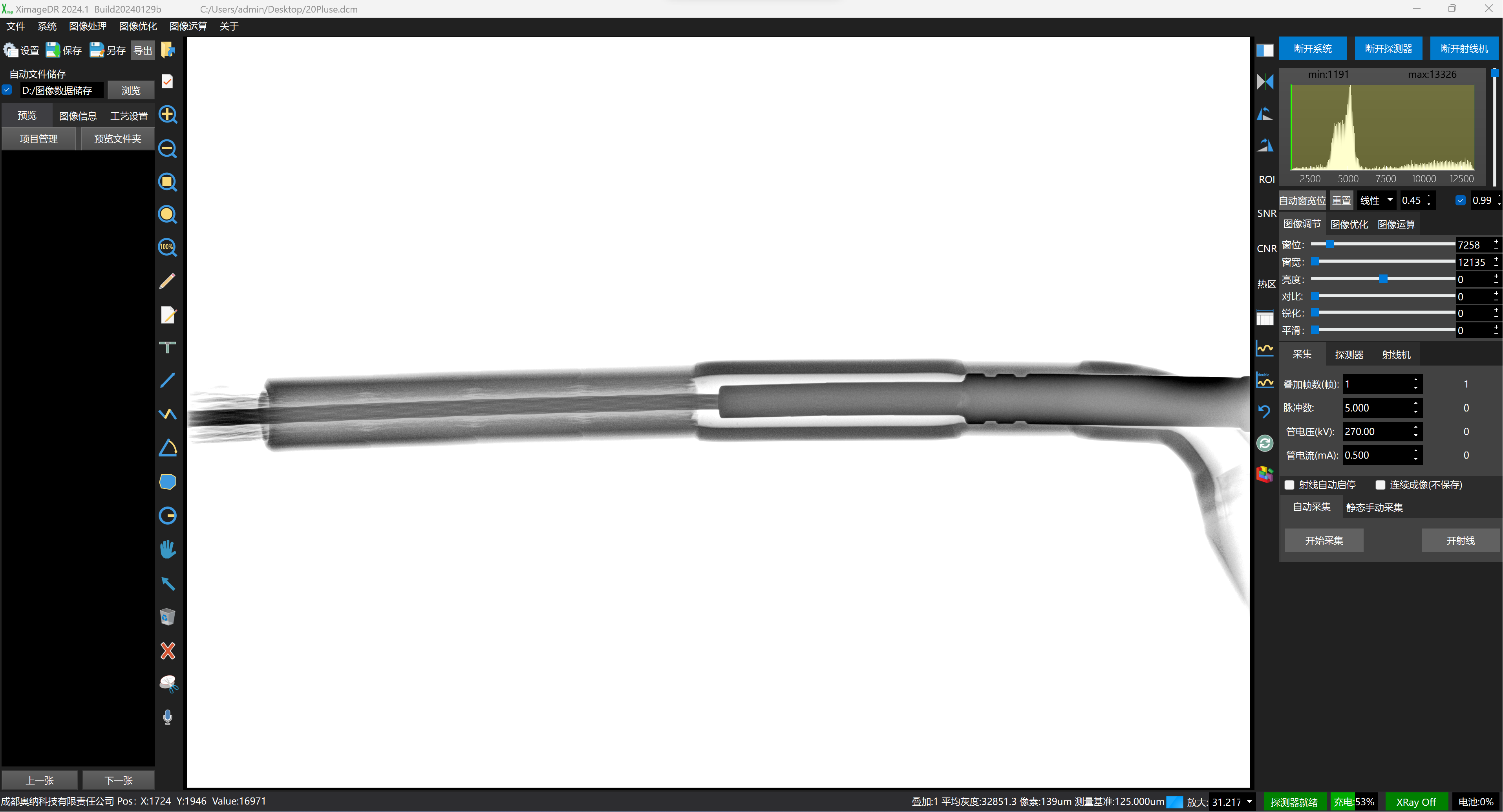

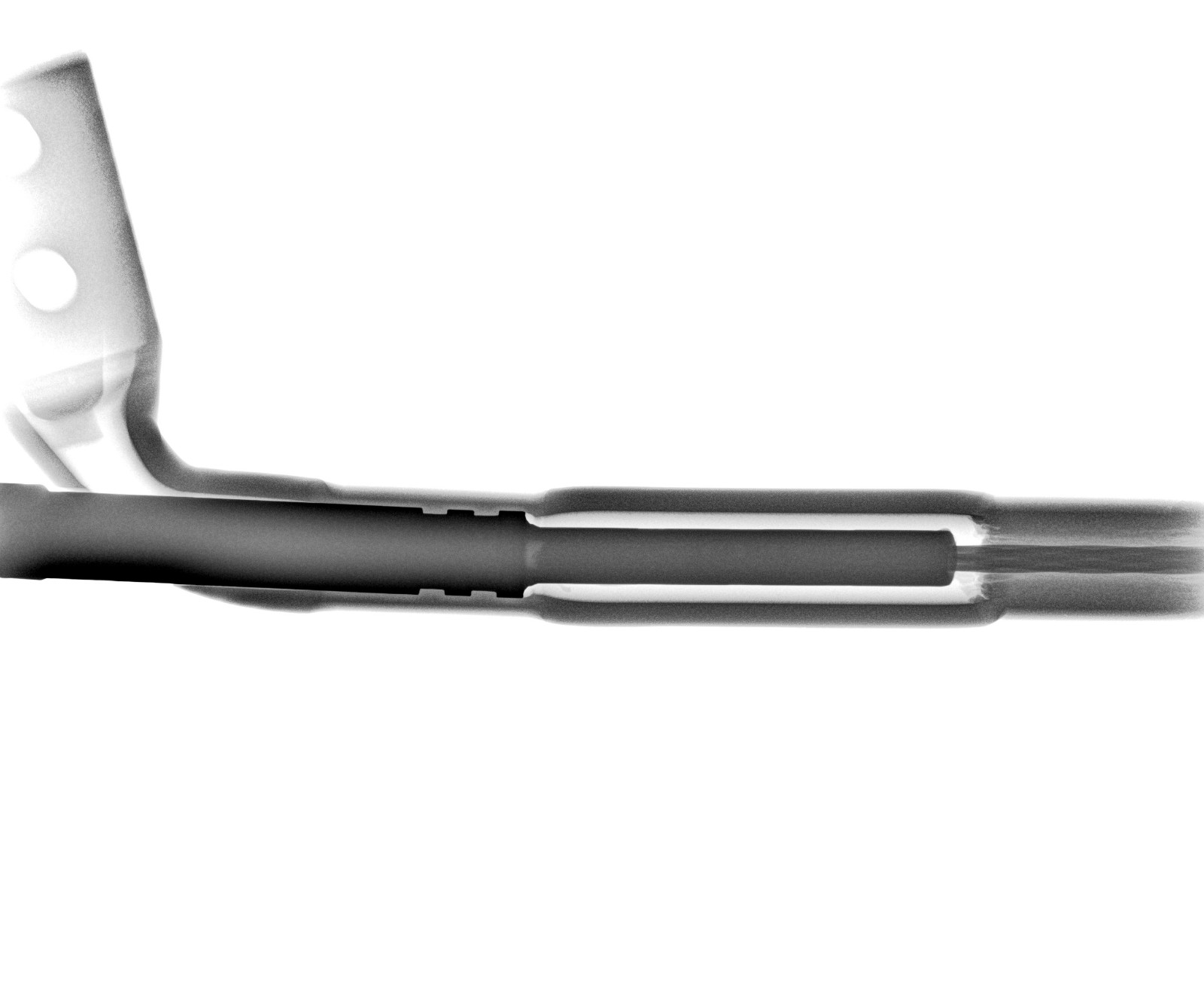

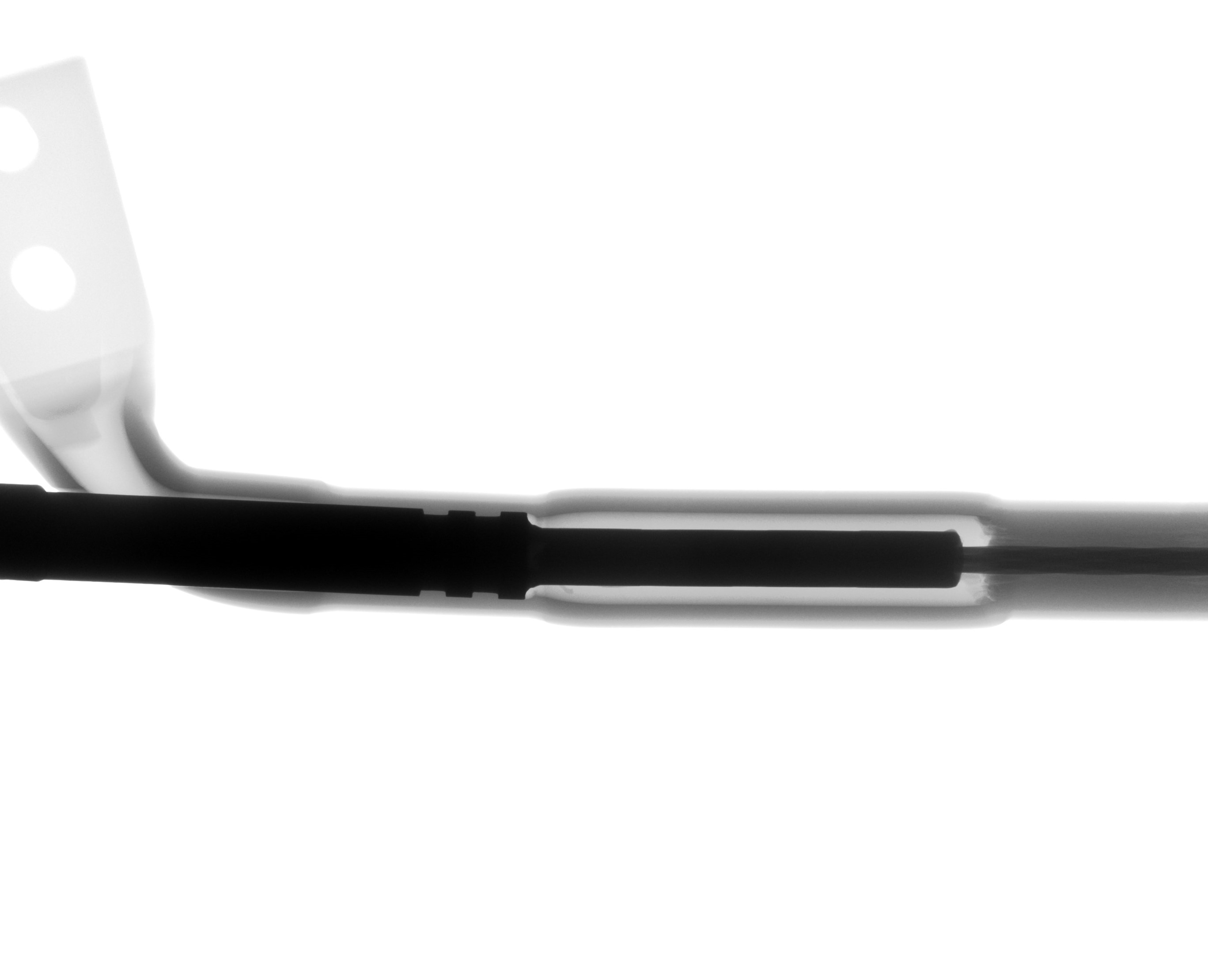

Strain clamp not enhanced |
|

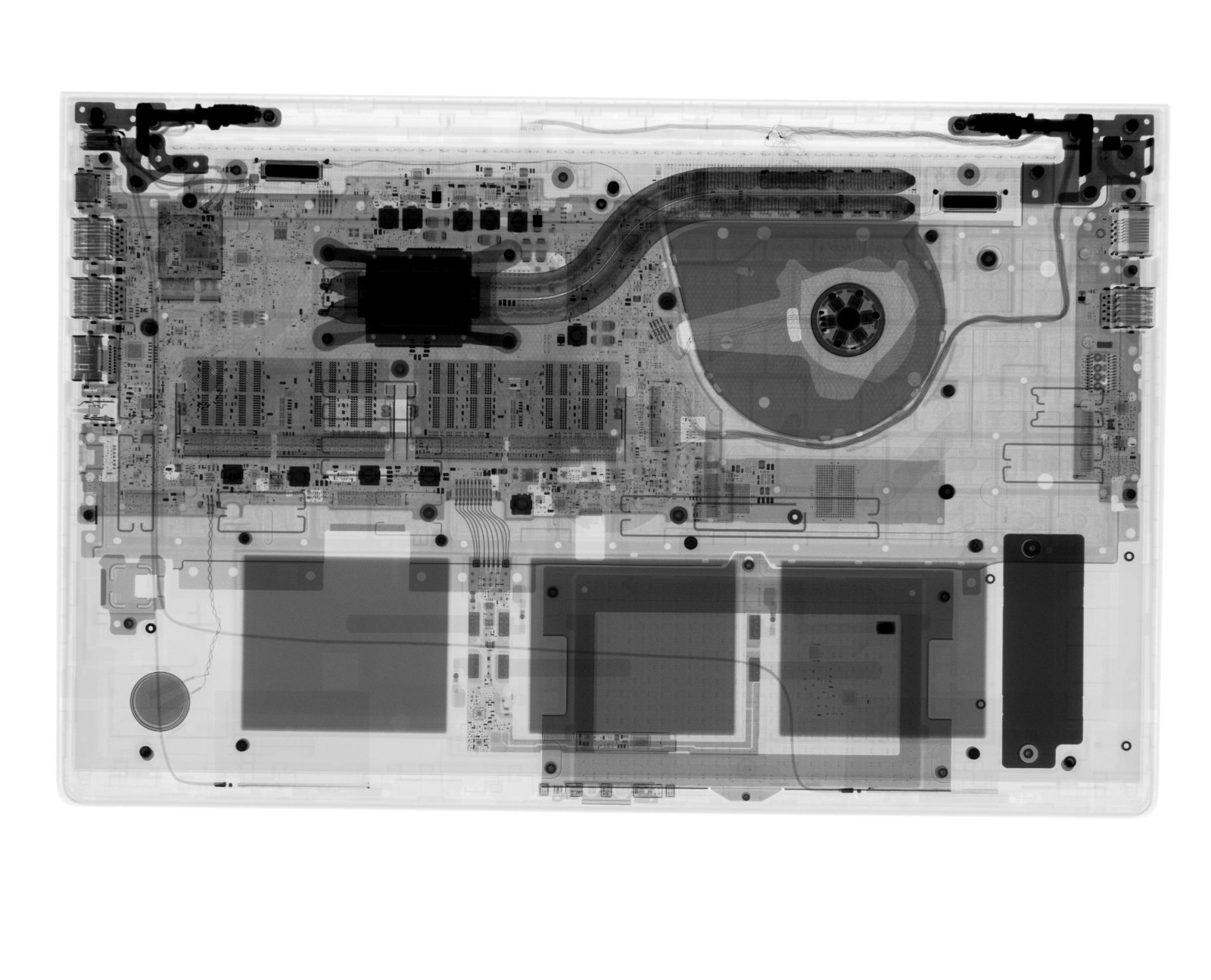

Laptop not enhanced |

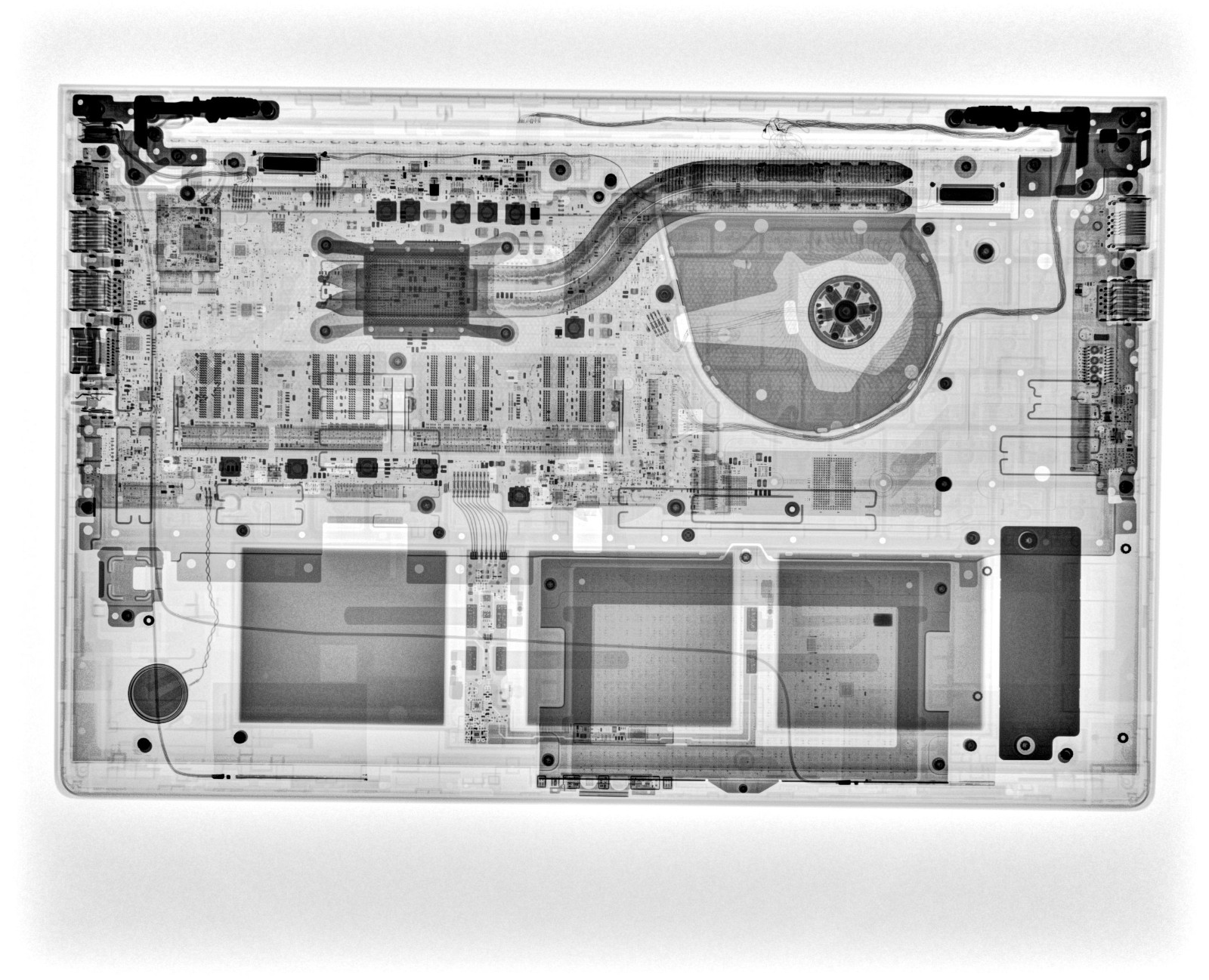

Laptop enhanced once |
 |  |
 |  |
