DR penetration imaging system parameters

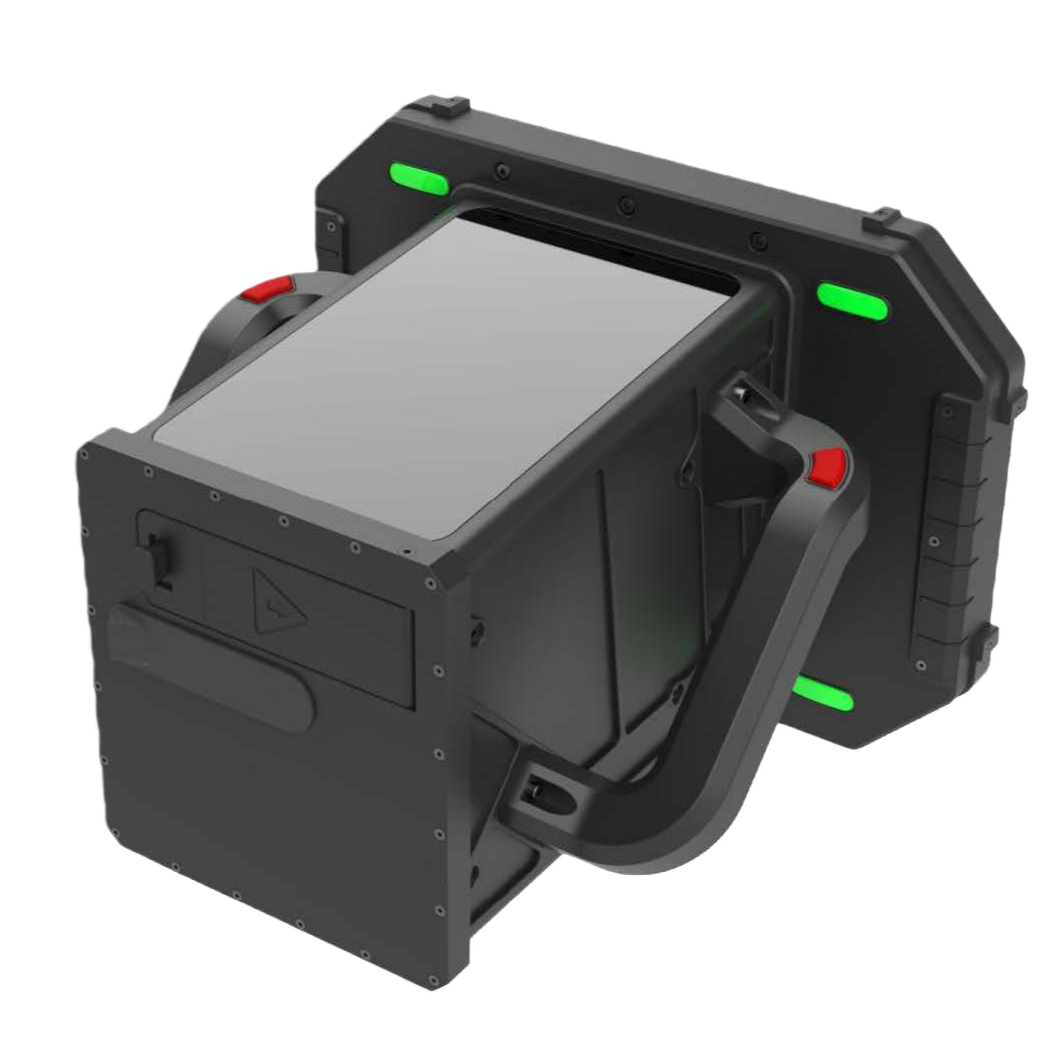

| Model of X-ray machine | iStarBack-140S |
| Tube Voltage | 140kV |
| Overall dimension (mm) | (229±2)×(275±2)×(197±2) |
| Weight | 4.8±0.1kg（Including battery） |

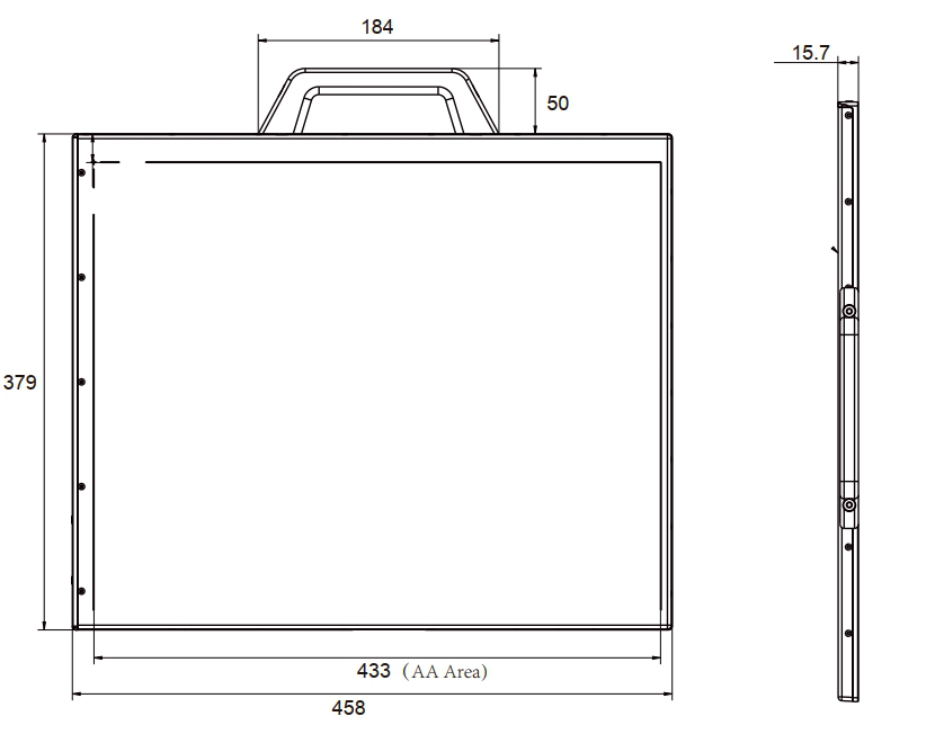

| Detector model | iStar4343M |
| Pixel Pitch | 100μm |
| Pixel Matrix | 430mmX430mm |
| ADC | 16bit |
| Scintillator | CSI |
| Spatial Resolution | 5.0LP/mm |
| Power Supply | Fully battery powered, maximum 8 hours |
| Weight | 4.0kg |

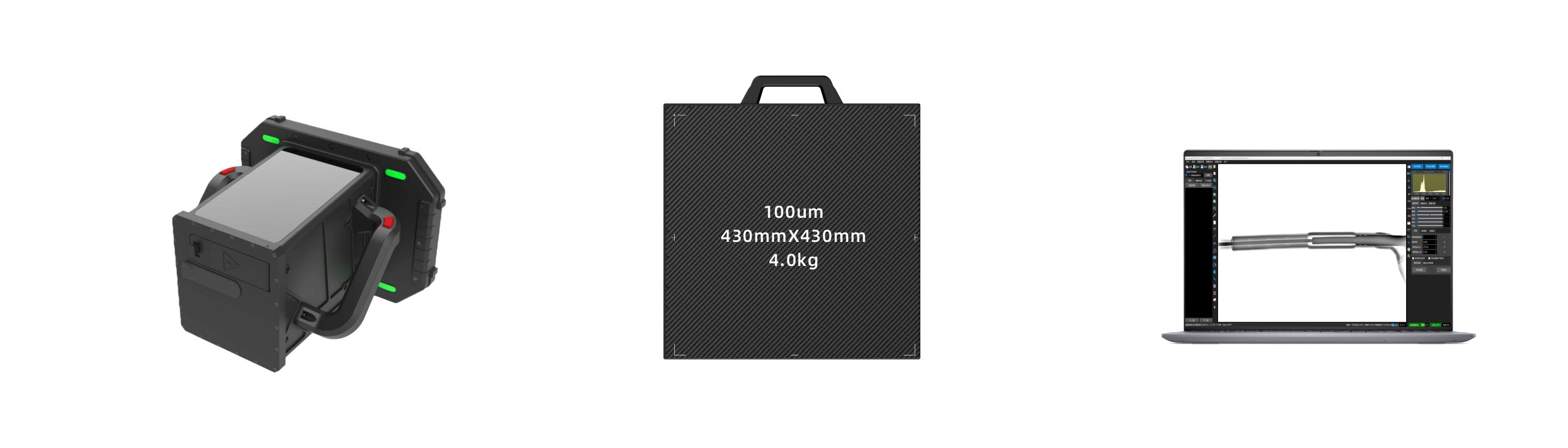

DR penetration imaging standard configuration
| Serial Number | Name | Model | Number |
| 1 | X-ray machine | iStarBack-140S | 1 |
| 2 | FPD | iStar4343M | 1 |
| 3 | Digital Radiographic Imaging DR Acquisition and ProcesSing Software (Dongle) | XimageDR | 1 |
| 4 | Acquisition Computer | ThinkBook 16 | 1 |
Backscatter imaging system parameters
| Tube Voltage | 140kV |
| Scanning Speed | 150~300mm/s |
| Maximum Scanning Time | 25s |
| Image Acquisition Mode | Real time imaging |
| Image Processing | Denoising, enhancing, stitching, labeling, pseudocolor, photography&correlation |
| Detection Capability | Explosives, explosive devices, drugs, liquids, organics |
| Penetration capacity (steel) | ≧8mm |
| Spatial Resolution | ≤1.5mm Polyethylene wire pair |
| Line detection force | ≤0.2mm Copper wire |
| Battery Life | 6h (Depends on operating characteristics) |
| Storage Capacity | 128GB,Configurable as required |
| Operate Environment | Temperature：-20℃~50℃，Humidity：0%~90%（No condensation） |
| Storage Environment | Temperature：-25℃~60℃，Humidity：0%~90%（No condensation） |
| Overall dimension | (229±2)×(275±2)×(197±2) |
| Weight | 4.8±0.1kg（Including battery） |
 | •Free of radioactive substances and only generates X-ray radiation at startup •Automatic image optimization, providing intuitive visual information display •High resolution, real-time imaging •Optional backscatter and DR transmission imaging, meeting the requirements of efficient multi-task inspection |
• Amorphous silicon static FPD • 100 μm pixel pitch, with 16 bit ADC for more image details • Better image detail and lower exposure dose • Intelligent workflow and high endurance |  |

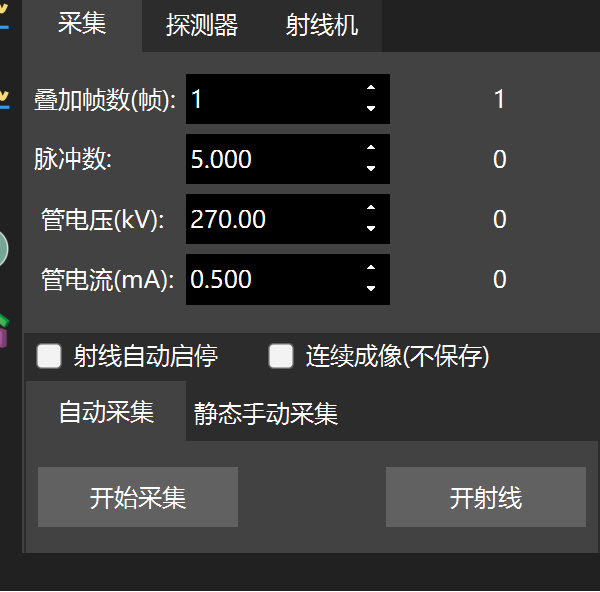

| •Image acquisition by software control of ray machine and detector with one touch •No tedious synchronization process |
|
|
One click image enhancement One click image enhancement can enhance image details through various algorithms, allowing the scene to automatically adjust the image to the best judgment of internal conditions without the need for professional learning. | |

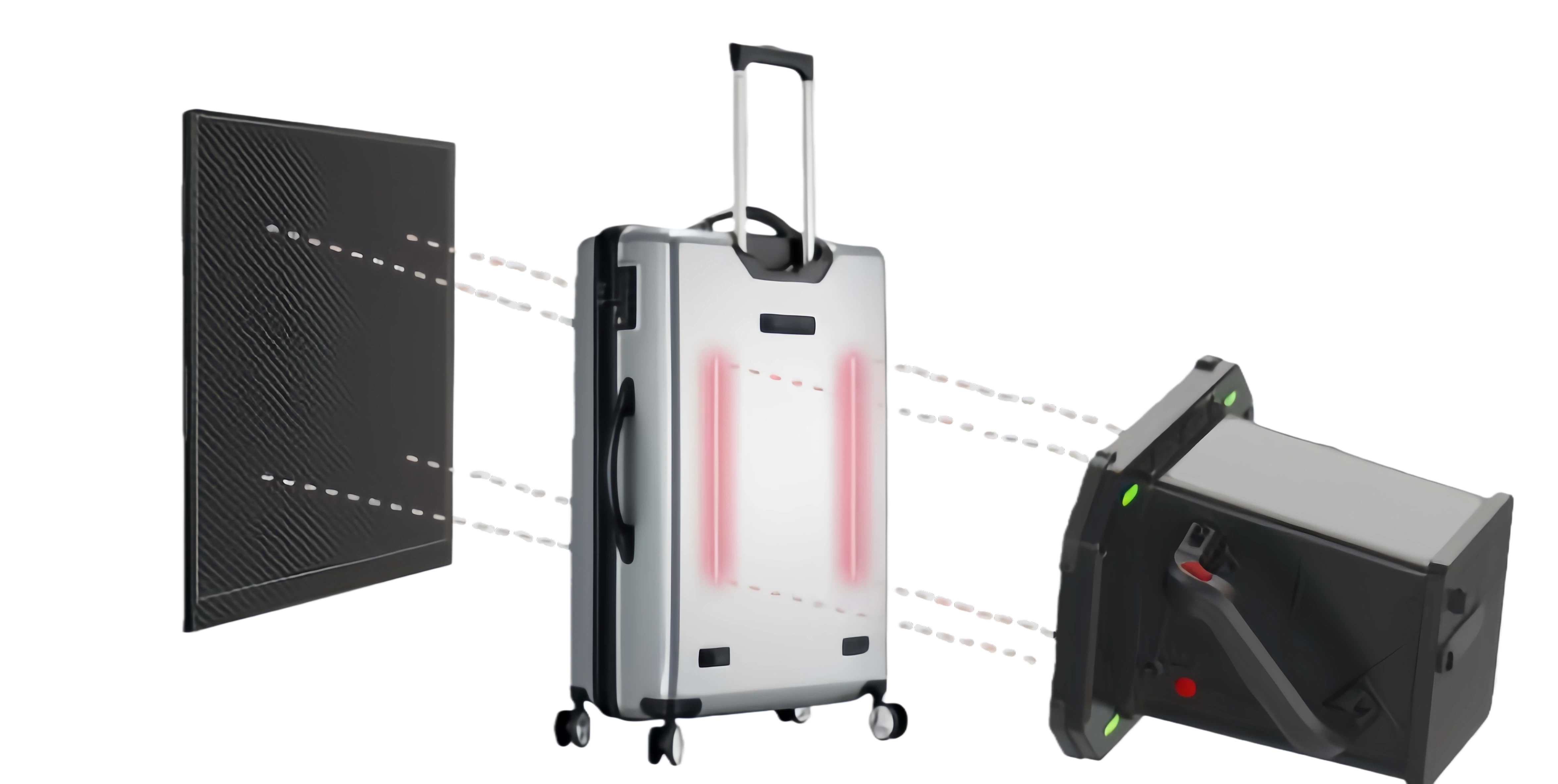

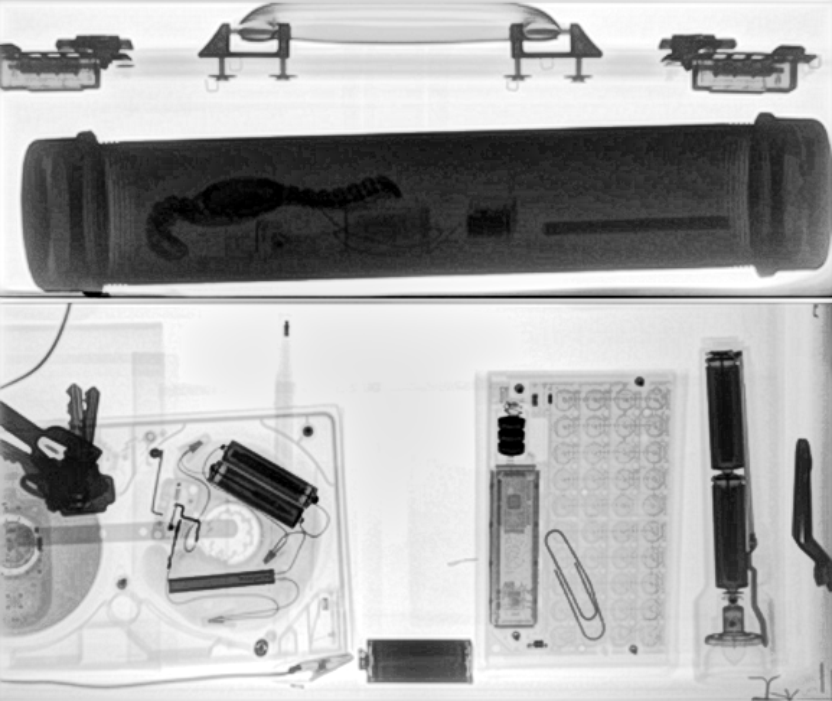

DR imaging

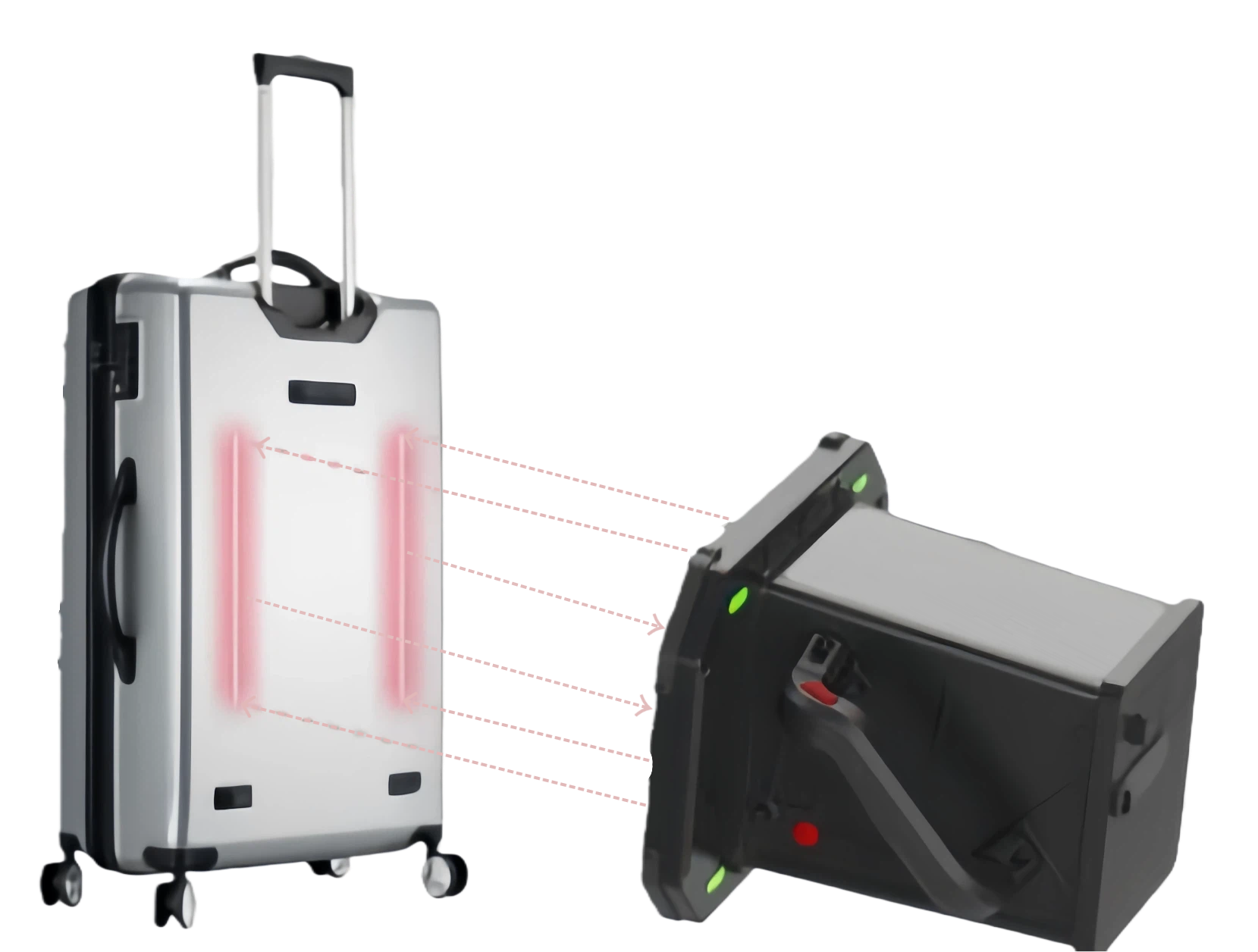

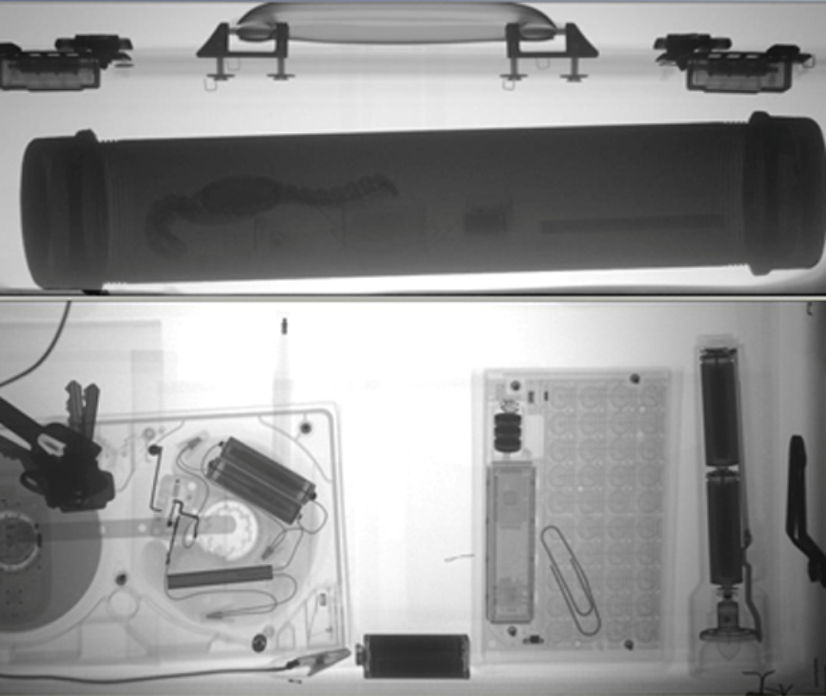

Backscatter imaging | |
