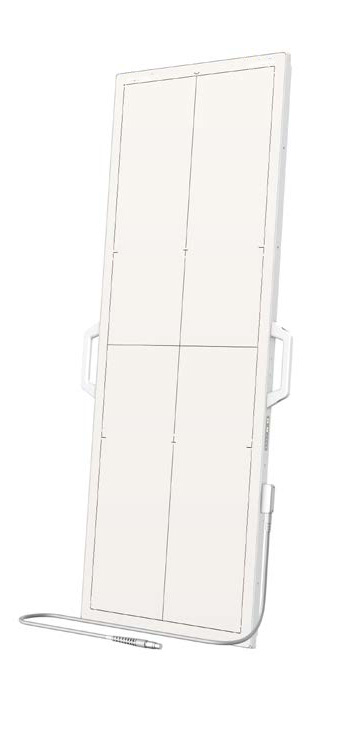

iStar43120 is a new generation of high-resolution 427mm×1208mm wireless static FPD。 It adopts 139 μm pixel pitch,and the scintillator adopts CsI, which has higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar43120 | |||
| Type of Detector | Amorphous Silicon | Frame Rate | - |
| Scintillator | CsI | Maximum Exposure Window | 180s |
| Pixel Pitch | 139μm | Radiographic Capability Range | - |
| Imaging Area | 425mmX1208mm | Overall Dimensions | 487mmX1271mmX21mm |
| Pixel Matrix | 3064X8696 | Weight | 15.00kg |
| Image Resolution | 3.6lp/mm | Ingress Protection | IP1X |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | Soft | Battery Life | 8h |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
