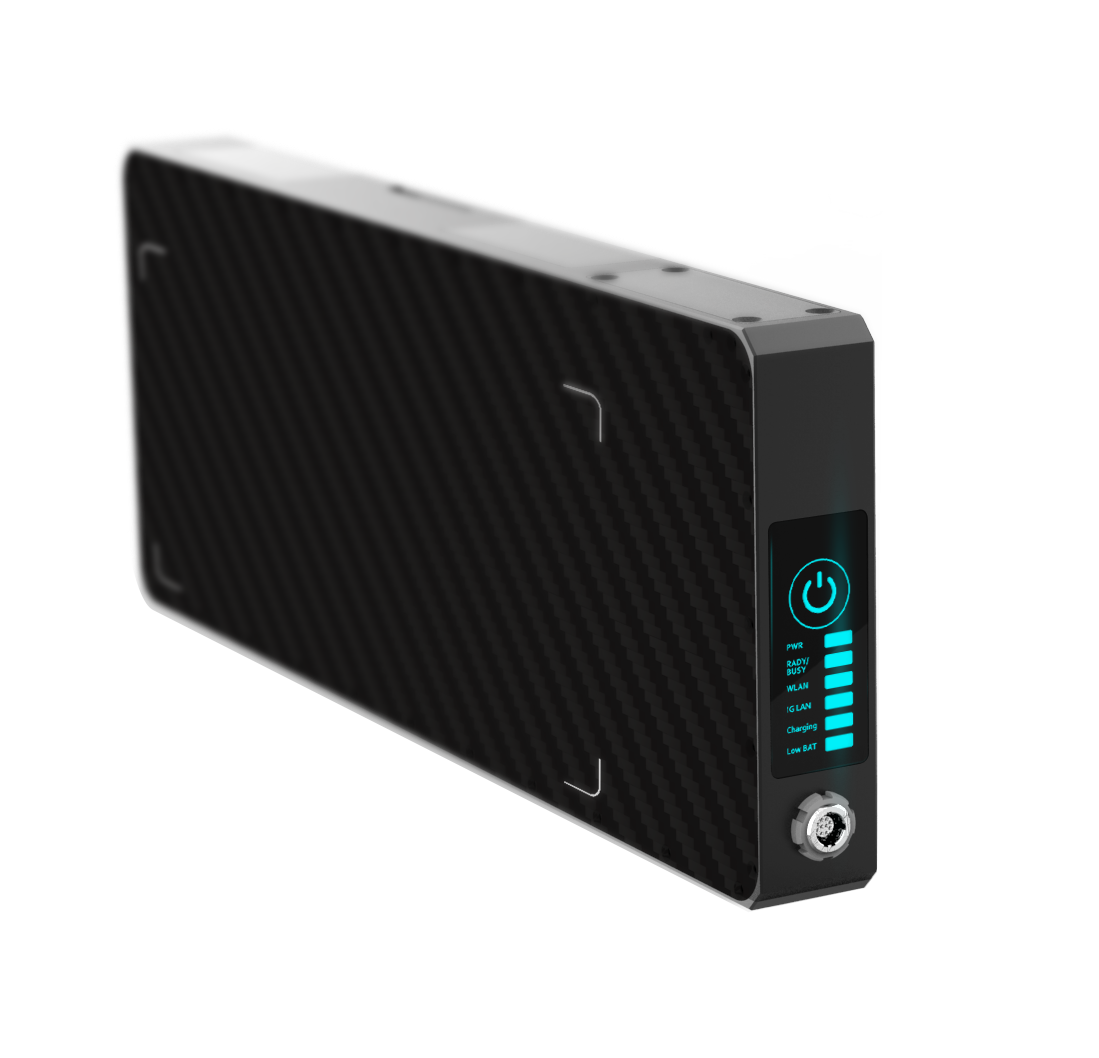

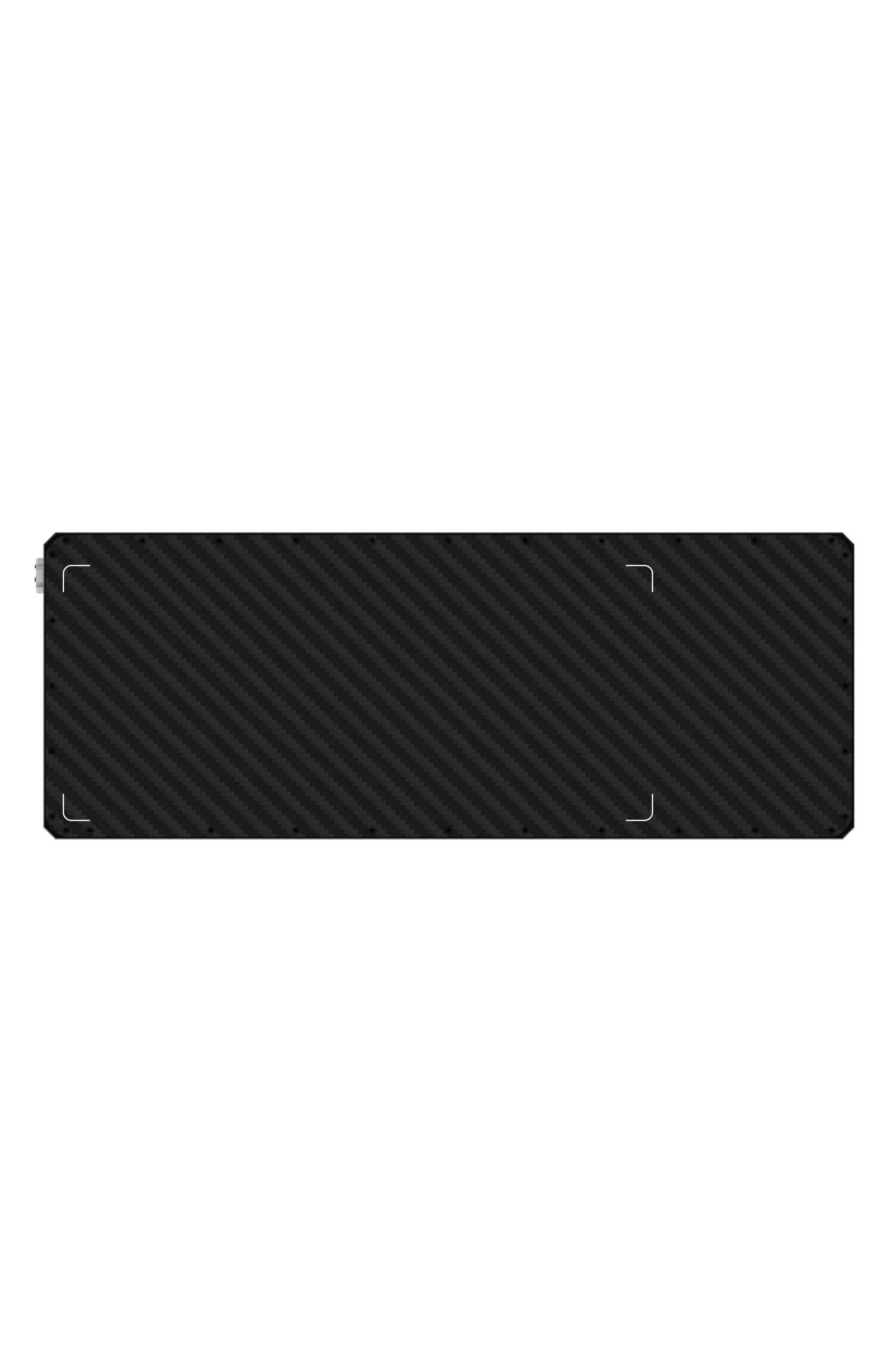

iStar1024S is a new generation of high-resolution 97mm×233mm wireless static FPD. It adopts 76 μm pixel pitch, and the scintillator adopts DRZ+(GOS) for smaller shadow, higher image detail expression and endurance.
| iStar1024S | |||
| Type of Detector | Amorphous Silicon | Frame Rate | - |
| Scintillator | DRZ+(GOS) | Maximum Exposure Window | 180s |
| Pixel Pitch | 76μm | Radiographic Capability Range | 40-160kV/370kV |
| Imaging Area | 97mm×233mm | Overall Dimensions | 335mm×132mm×30mm |
| Pixel Matrix | 1280×3072 | Weight | 1.3kg/2.2KG |
| Image Resolution | 5.0lp/mm | Ingress Protection | IP67 |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | Soft | Battery Life | 6h |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Operate Environment | Temperature:0℃-45℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
