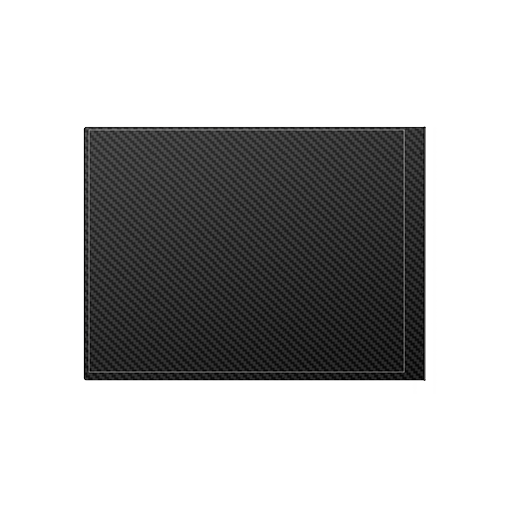

iStar2533L is a new generation of high-resolution 252mm×331mm wireless static FPD. It adopts 100 μm pixel pitch,and the scintillator adopts CSI/GOS for higher image detail expression and endurance.
| iStar2533L | |||
| Type of Detector | Amorphous Silicon | Frame Rate | - |
| Scintillator | CSI/DRZ+(GOS) | Maximum Exposure Window | 180s |
| Pixel Pitch | 100μm | Radiographic Capability Range | 40-160kV/320kV |
| Imaging Area | 252mm×331mm | Overall Dimensions | 269mm×362mm×16mm |
| Pixel Matrix | 2528×3318 | Weight | 2.2kg |
| Image Resolution | 5.0lp/mm | Ingress Protection | - |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | AED/Soft | Battery Life | 8h |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
