Advanced Technology

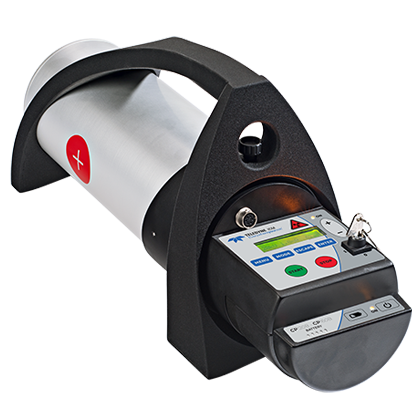

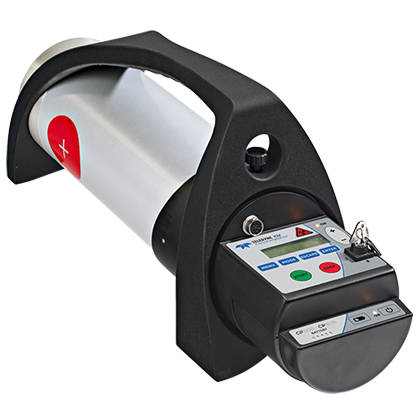

CP120B and CP160B are ultra-light portable constant-potential X-ray generators, which have been specially developed to provide a new concept that can match the significant advances in imaging technology in recent years.These constant potential generators are capable of penetrating 10 mm (CP120B) and 21 mm (CP160B) steel in very short exposure times, even with ultra compact dimensions and weights. In addition, our CPB is able to distribute a constant DC output, easily outperforming any modern 150 kV and 200 kV pulse generator. Finally, CP120B and CP160B can run continuously for several minutes without interrupting any cooling, which means you will be able to perform multiple continuous analyses.
In addition, these state-of-the-art CP generators are compatible with the entire series of digital radiographic detectors and software, enabling them to operate with any type of inspection equipment.
Lithium Ion Batteries and Fast Battery Chargers
Equipped with 37V lithium ion battery, our CP120B and CP160B generators can continuously expose for 300 seconds! Unlike other conventional batteries, our lithium-ion batteries are fully charged and can be used in just one hour.
A moving fixture that makes everything different .....
In addition, we take special care to help ensure faster, more accurate and easier field work. Rugged, shock-absorbing and visually attractive handling fixture designed to fully anticipate user needs.
Remote operation
Thanks to CPB's serial port RS232, kV, mA, exposure time and warning time can be changed from a distance, which allows the operator to customize his or her lens in a safe place. The communication receives text commands based on an echo mode protocol and is also equipped with wireless operation and Bluetooth functionality.
 |  | |
| Model | CP120B | CP160B |
| Type | High-frequency Constant-pressure Ray Machine | High-frequency Constant-pressure Ray Machine |
| Tube Voltage | 40kV-120kV | 40kV-160kV |
| Tube Current | 0.1mA-1.0mA | 0.1mA-0.5mA |
| Tube Power | 120W | 80W |
| Focal Spot Size | 0.8mmX0.5mm | 0.8mmX0.7mm |
| Angle of Radiation | 50°X50° | 60°X60° |
| Steel Penetration | 10mm Fe | 21mm Fe |
| Built-in Filter | 3.5mmAL | 3.5mmAL |
| Size | Ø124mmX476mm | Ø124mmX520mm |
| Weight | 7.5kg | 9.2kg |
| Power Supply | 37V Lithium Battery | 37V Lithium Battery |
| Preheat | Training Machine Required | Training Machine Required |
| Operate Temperature | -25℃~50℃ | -25℃~50℃ |
| Storage Temperature | -40℃~80℃ | -40℃~80℃ |
| IP | IP54 | IP54 |
