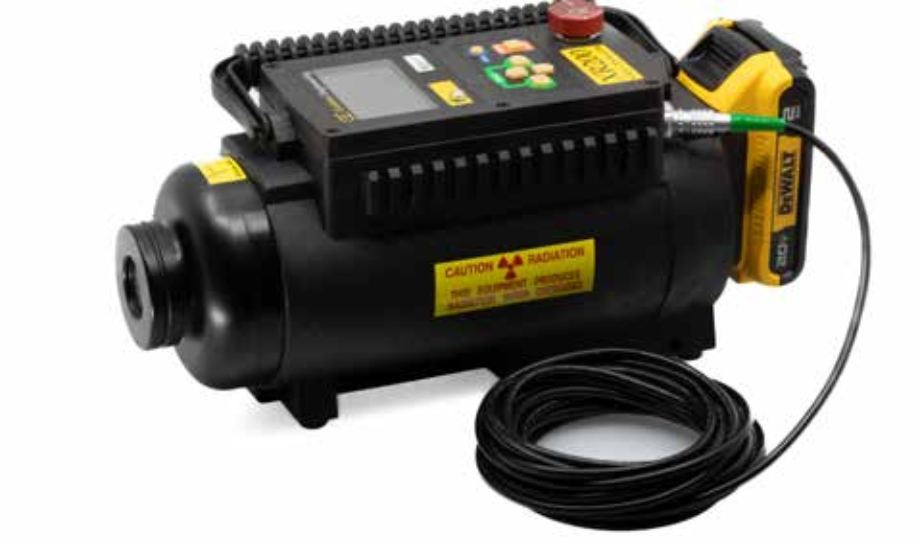

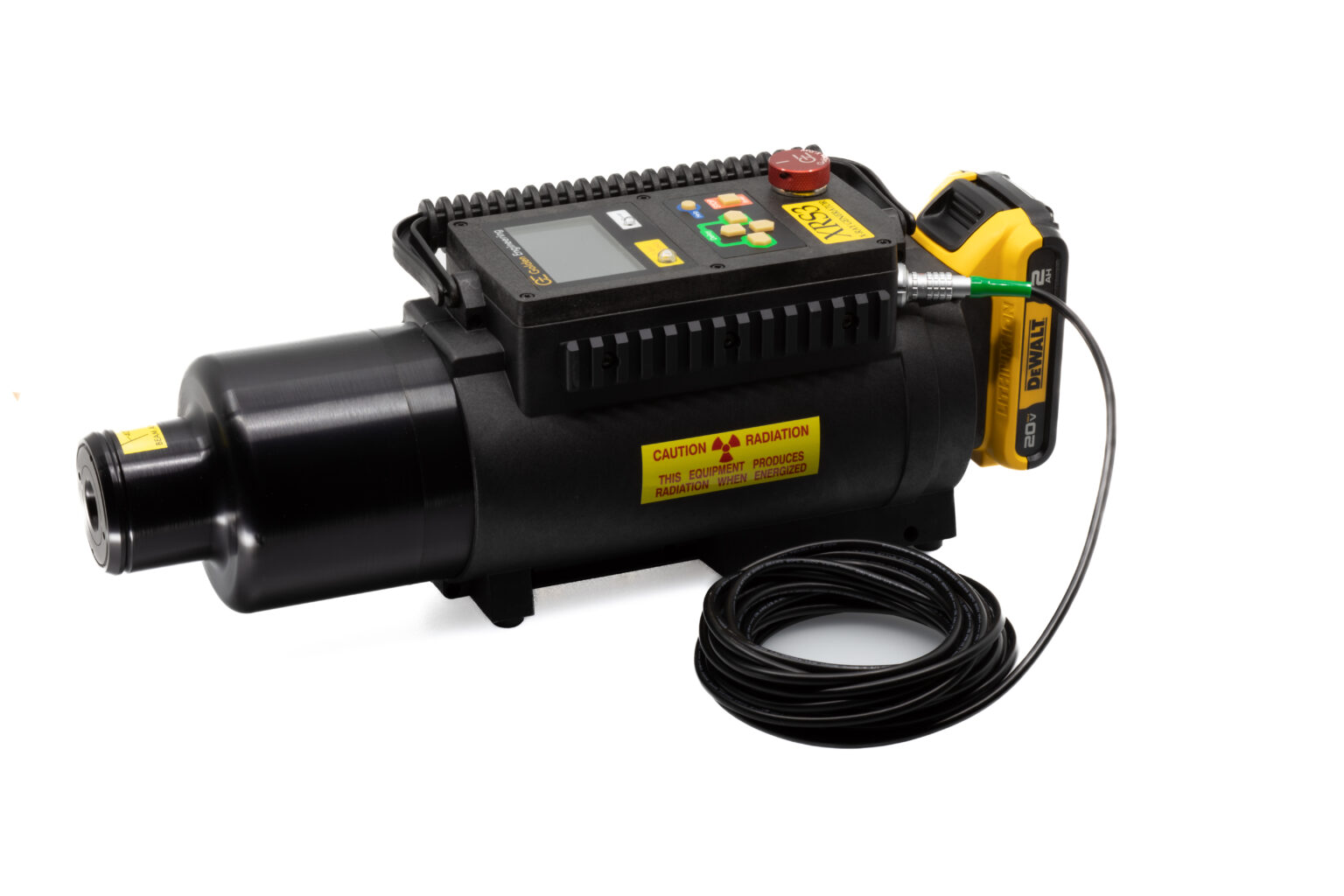

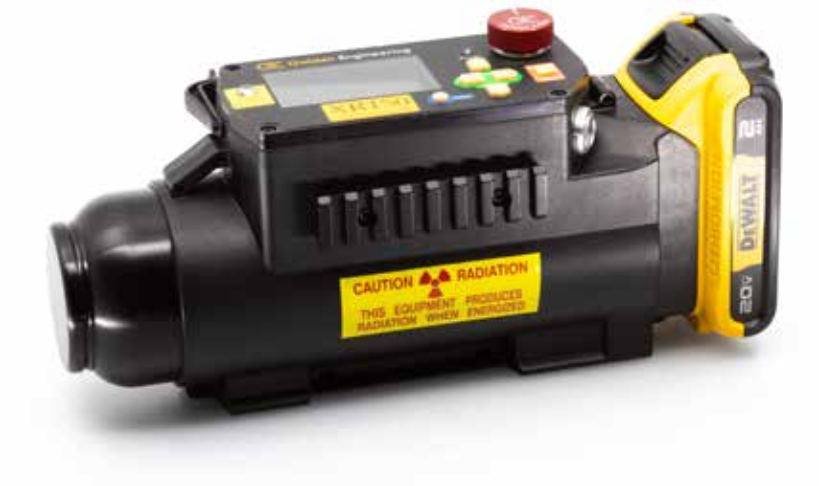

Golden is a lightweight, portable X-ray source that requires little maintenance. The modular design facilitates the replacement of parts and saves costs. Golden's lead shield minimizes radiation leakage to protect the operator, while we provide a time delay button and remote cable to allow the operator sufficient time to transfer to a safe distance while the equipment is operating. When Golden emits, it alerts the operator via audio and video.
 |  |  |  | |
| Model | XRS-4 | XRS-3 | XR200 | XR150 20V |
| Tube Voltage | 370kV/pluse | 270kV/pluse | 150kV/pluse | 150kV/pluse |
| Tube Current | 0.25mA/Pluse | 0.25mA/pluse | 0.5mA/pluse | 0.5mA/pluse |
| Tube Power | 92.5W/Pluse | 67W/Pluse | 75W/Pluse | 75W/Pluse |
| Dose Rate | 4mR/Pluse~8.5mR/Pluse | 2mR/Pluse~4mR/Pluse | 2mR/Pluse~4mR/Pluse | 1.8mR/Pluse~3mR/Pluse |
| Pulse Tube Life | 50000个 | 100000个 | 60000个 | 30000个 |
| Focal Spot Size | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Pulse Width | 10ns | 25ns | 50ns | 50ns |
| Pulse Rate | 9Pluse/s | 21Pluse/s | 10Pluse/s | 11Pluse/s |
| Size | 489.2mmX121.9mmX179.1mm | 391.7mmX108.4mmX148.1mm | 309.1mmX108.2mmX148.1mm | 266.5mmX89.9mmX47.1mm |
| Weight | 8.3kg | 5.4kg | 5.0kg | 2.58kg |
| Power Supply | 18-20V Lithium Battery | 18-20V Lithium Battery | 18-20V Lithium Battery | 18-20V Lithium Battery |
| Preheat | No Preheating Required | No Preheating Required | No Preheating Required | No Preheating Required |
| Operate Temperature | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ |
| Storage Temperature | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ |
| IP | IP54 | IP54 | IP54 | IP54 |
