System Parameters
| Type of X-ray Machine | High Frequency Constant-voltage X-ray |
| Energy of Radiation | Maximum 150kV/1.0mA (150W) |
| X-ray Machine Focal Size | 0.5mm |
| Pixel Pitch | 100μm |
| Pixel Matrix | 430mmX430mm |
| ADC | 16bit |
| Scintillator | CSI |
| Spatial Resolution | 5.0LP/mm |
| Narrowest Blind Spot of Detector | 8.0mm |
| Power Supply | Fully battery powered, up to 8 hours (non continuous acquisition mode) |

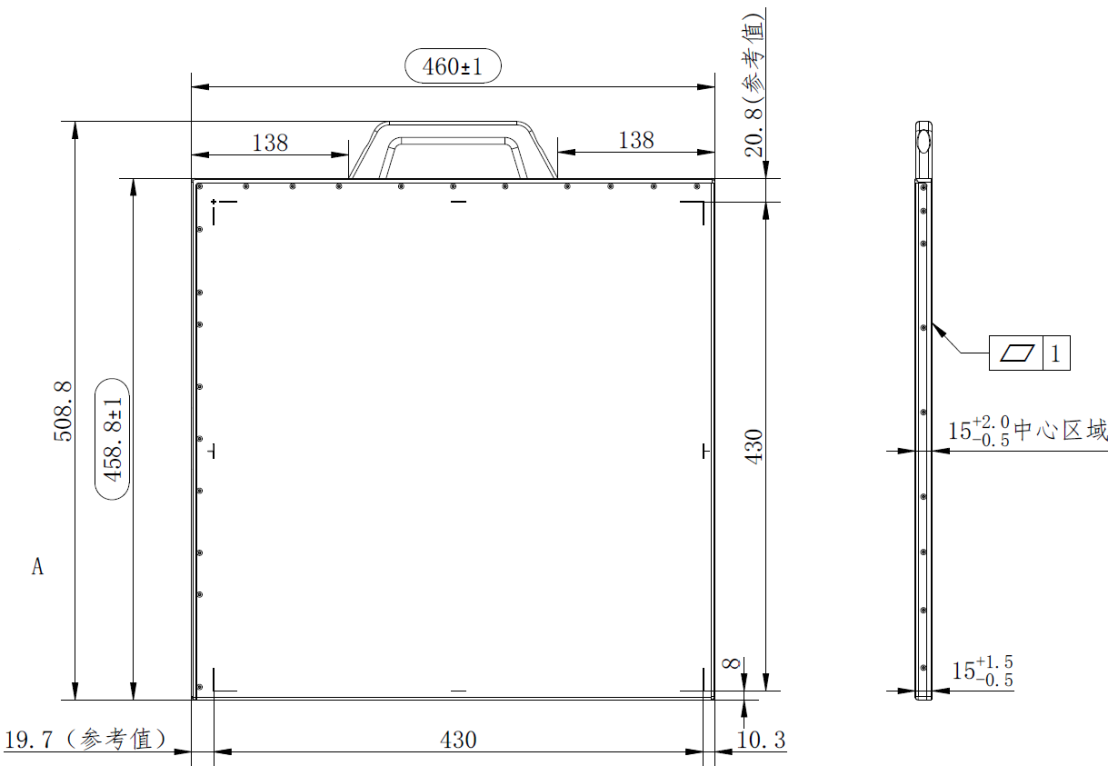

| Detector Size | 460mmX510X15mm |
| System Weight | About 12kg (Excluding Packaging Box) |
| Operating Environment | Temperature：5℃-35℃ Humidity：10%-90% No condensation |
| Storage Environment | Temperature：-20℃-55℃ Humidity：10%-90% No condensation |

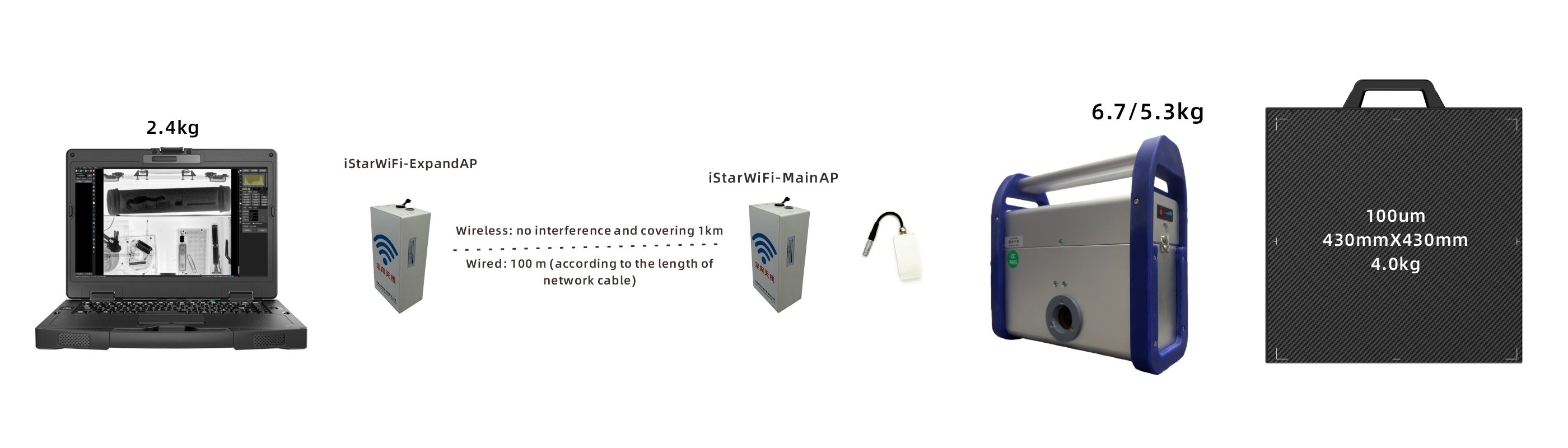

Standard Configuration
| Serial Number | Name | Model | Quantity |
| 1 | High Frequency Constant-voltage X-ray | XPS-150B | 1 |
| 2 | Detector | iStar4343M | 1 |
| 3 | XimageDRForEod(Digital image acquisition and processing software） | XimageDRForEod(Password Dog） | 1 |
| 4 | Portable Wireless Router | iStarWiFi-867M | 2 |
| 5 | Wireless Trigger Module of X-ray Machine | iStarTrigWiFi-GOLDEN | 1 |
| 6 | Ruggedized Acquisition Computer | Getac S410 | 1 |

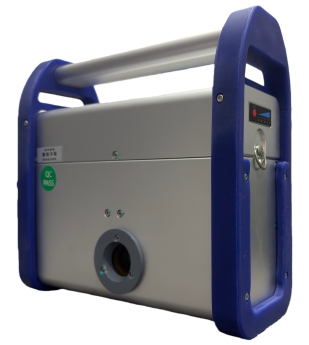

 | High Frequency Constant-voltage X-ray • Battery powered, flexible and portable • X-ray radiation is generated only after high voltage startup • New electronic packaging with strong adaptability to equipment environments |
Detector • Battery powered • Bottom narrow edge dead zone 8mm • 100um minimum pixel pitch |  |

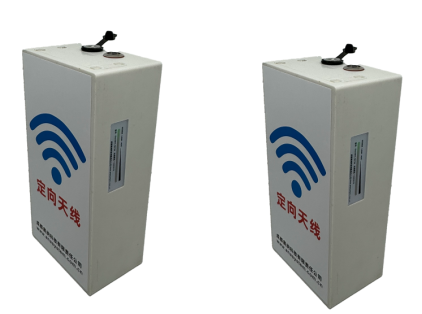

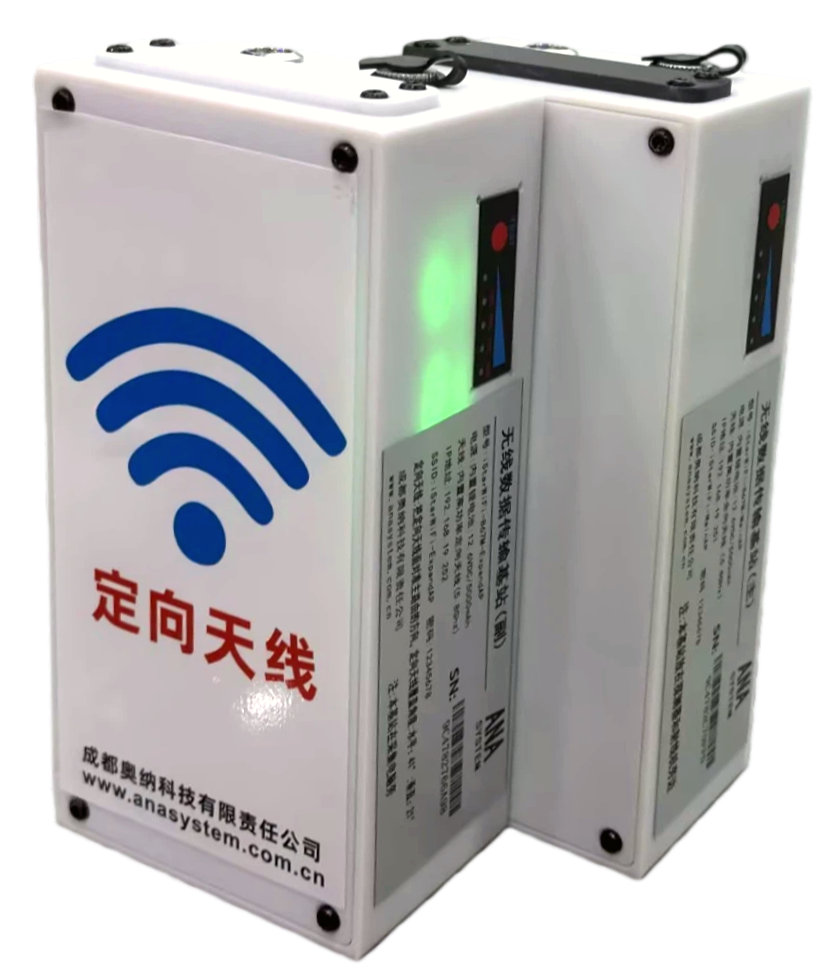

 | Dedicated WiFi Wireless Control Link •Built-in omni-directional antenna •Built-in lithium battery •Dual router mode control distance 1.0km |

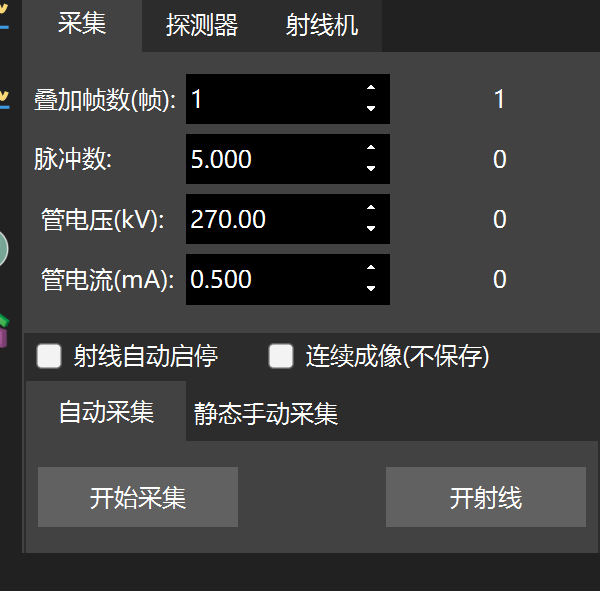

Image Acquisition •The software can set the integral time (number of pulses) •Software to set tube voltage, tube current (adjustable X-ray machine) •Automatic start and stop control of the X-ray machine •Image multi-frame superposition noise reduction (mainly used for dynamic flat plates) |  |
|
|

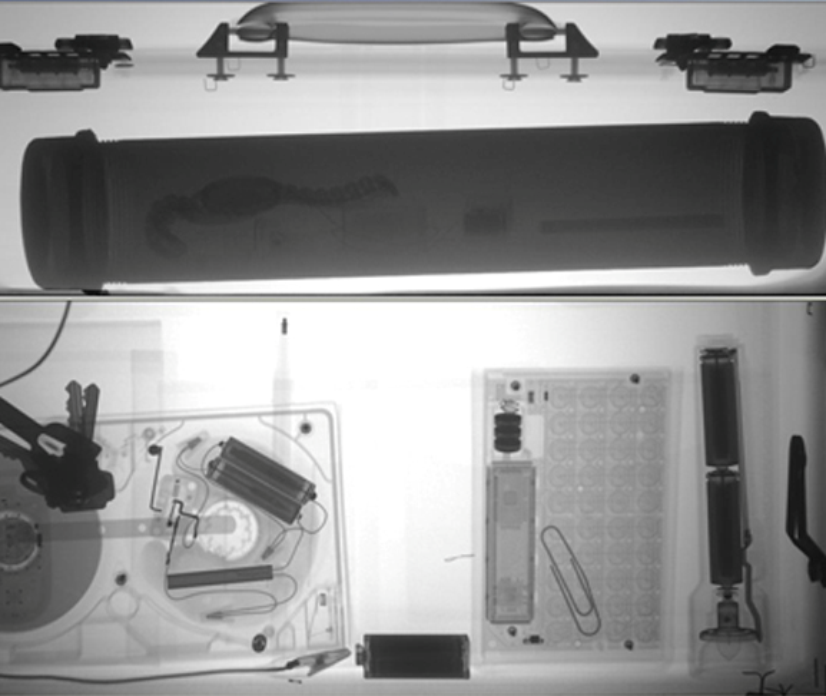

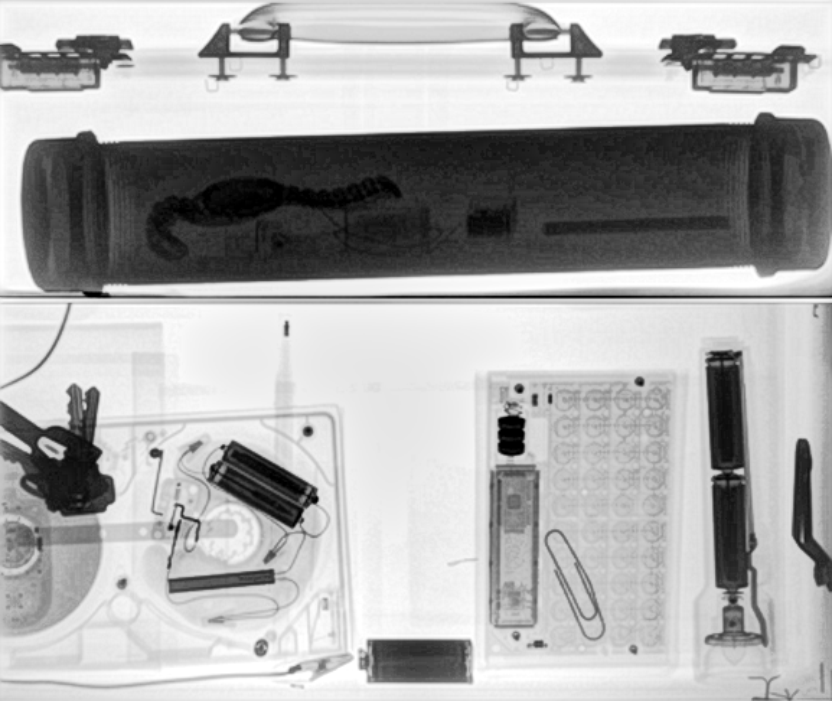

Image One-touch Enhancement Image one-button enhancement can enhance the image details through various algorithms, so that the image can be automatically adjusted to the best internal condition without professional learning on site. | |

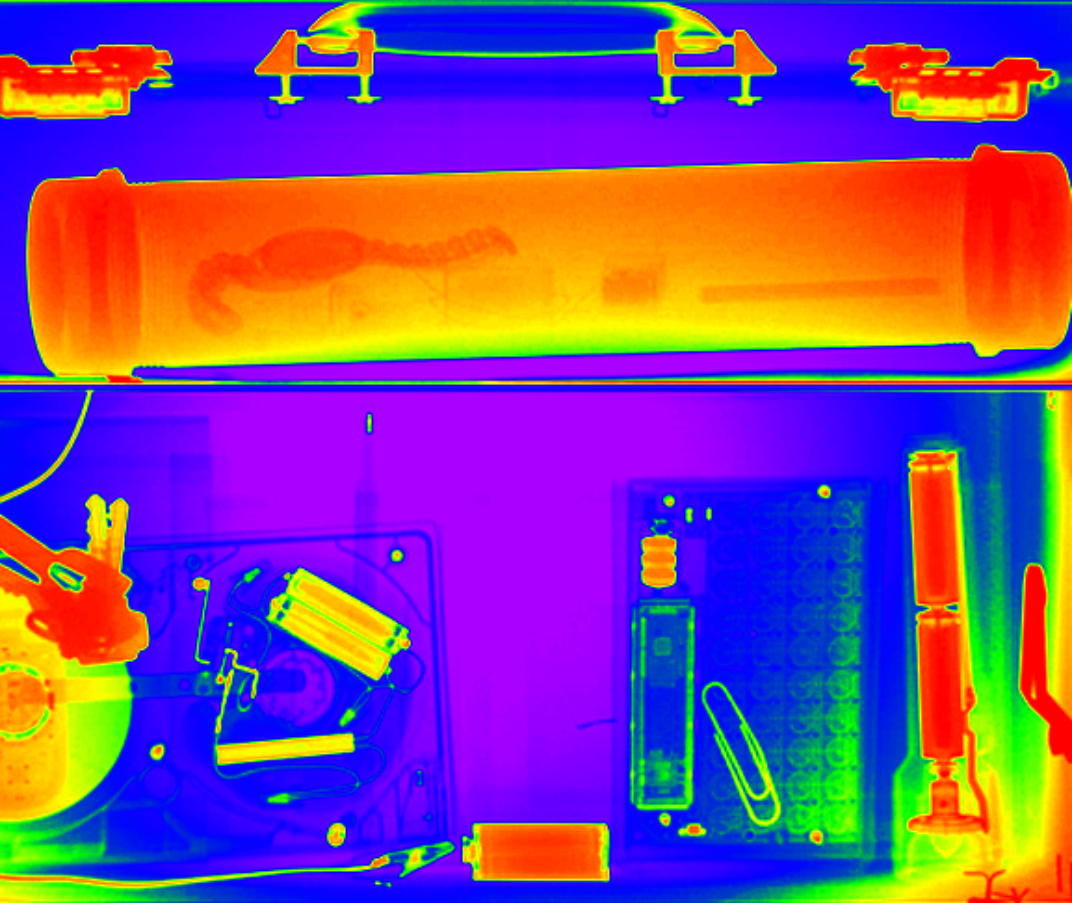

Dual Energy Imaging Distinguish between organic and inorganic materials. | |
