System Parameters
Type of X-ray Machine | Pulse Ray Machine |
Energy of Radiation | 150kV/Pluse ,0.5mA |
X-ray Machine Focal Size | 3.0mm |
Pixel Pitch | 100μm |
Pixel Matrix | 252mmX331mm |
ADC | 16bit |
Scintillator | CSI |
Spatial Resolution | 5.0LP/mm |
Narrowest Blind Spot of Detector | 7.0mm |
Power Supply | Fully battery powered, up to 8 hours (non continuous acquisition mode) |
Detector Size | 269mmX362X16mm |
System Weight | About 7.5kg (Excluding Packaging Box) |
Operating Environment | Temperature：5℃-35℃ Humidity：10%-90% No condensation |
Storage Environment | Temperature：-20℃-55℃ Humidity：10%-90% No condensation |

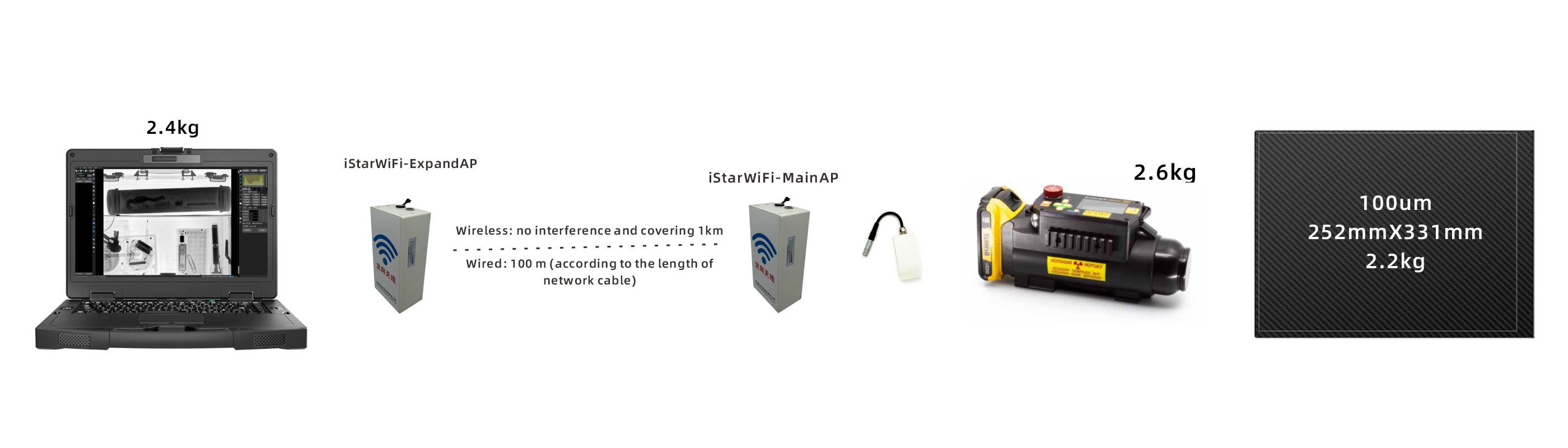

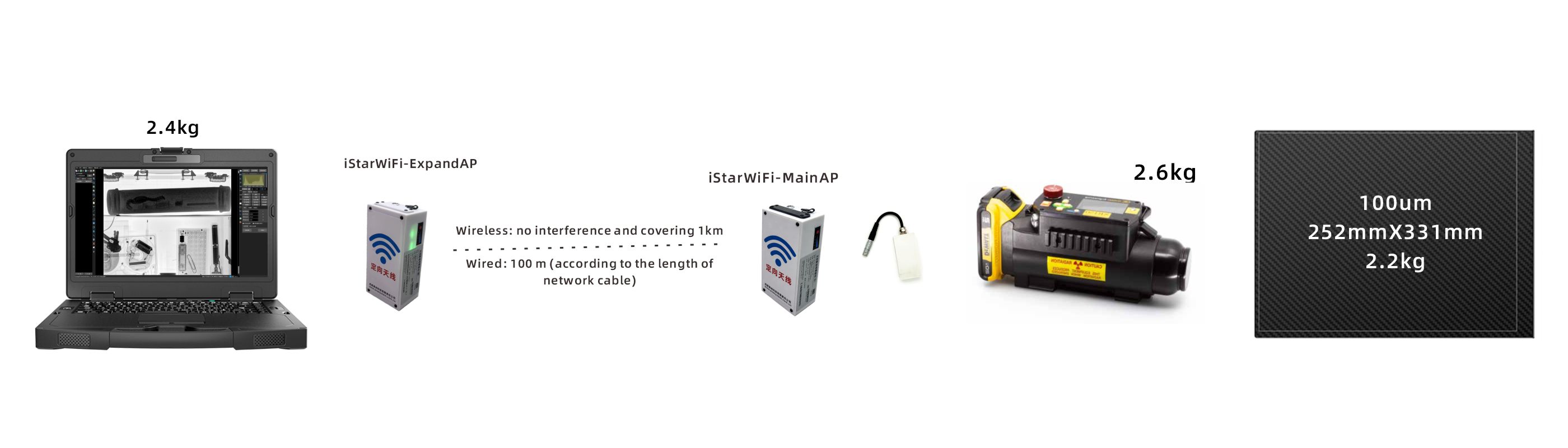

Standard Configuration
Serial Number | Name | Model | Quantity |
1 | Pulse Ray Machine | XR150 20V | 1 |
2 | Detector | iStar2533L | 1 |
3 | XimageDRForEod(Digital image acquisition and processing software） | XimageDRForEod(Password Dog） | 1 |
4 | Portable Wireless Router | iStarWiFi-867M | 2 |
5 | Wireless Trigger Module of X-ray Machine | iStarTrigWiFi-GOLDEN | 1 |
6 | Ruggedized Acquisition Computer | Getac S410 | 1 |

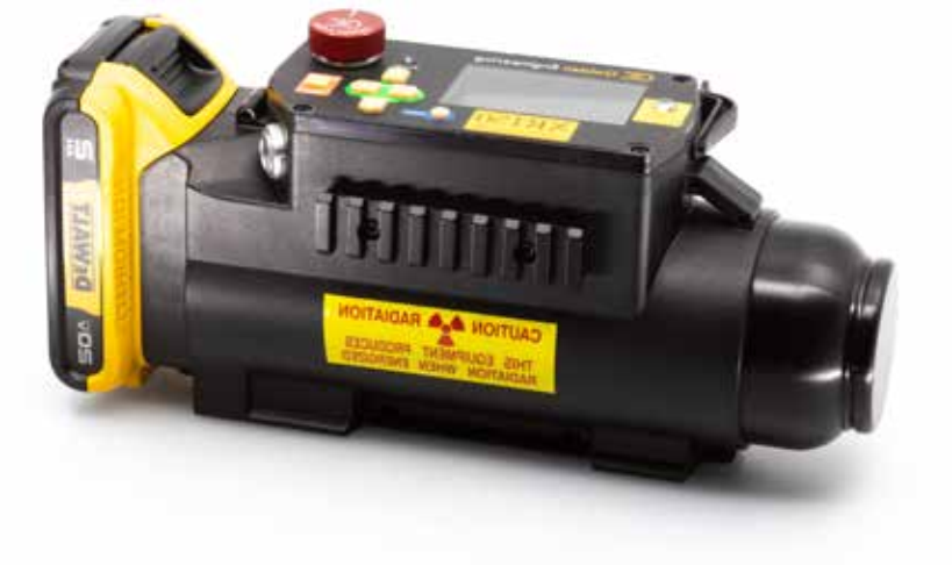

| Pulse Ray Machine • Battery powered, flexible and portable • Only produces pulsed radiation, no radioactive material • 270kV pulse radiation, penetrating 85mm steel plate |
Detector • Battery powered • Three-side narrow edge dead zone 7mm/7mm/9.6mm • 100um minimum pixel pitch |
|

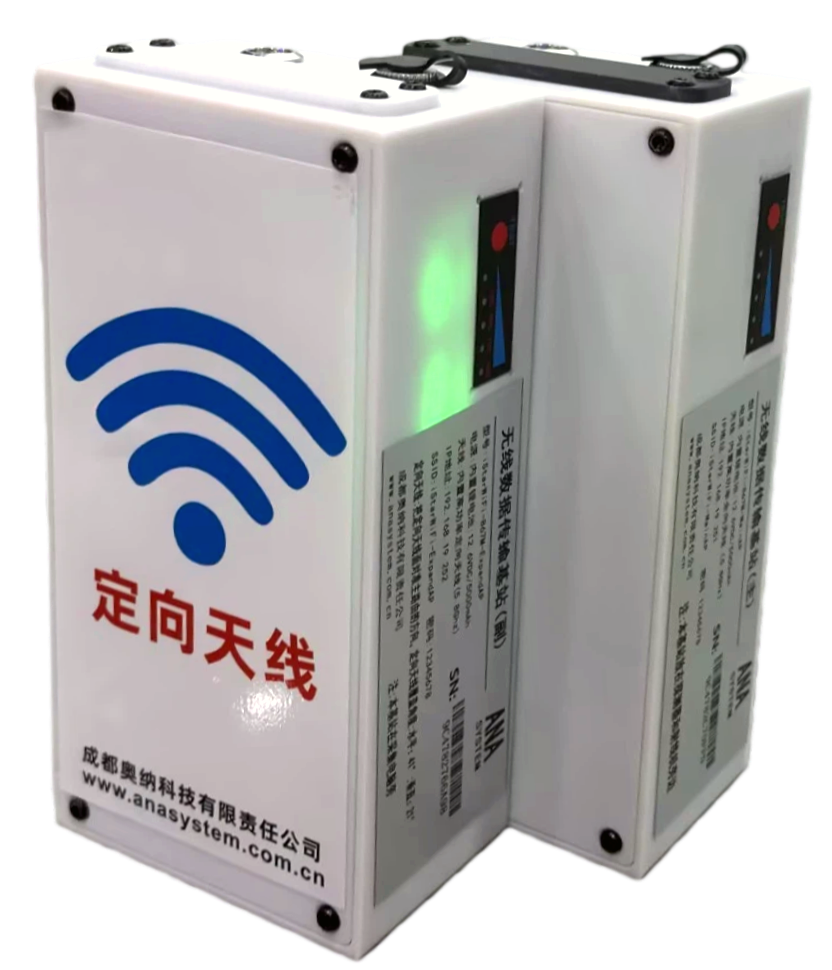

| Dedicated WiFi Wireless Control Link •Built-in omni-directional antenna •Built-in lithium battery •Dual router mode control distance 1.0km |

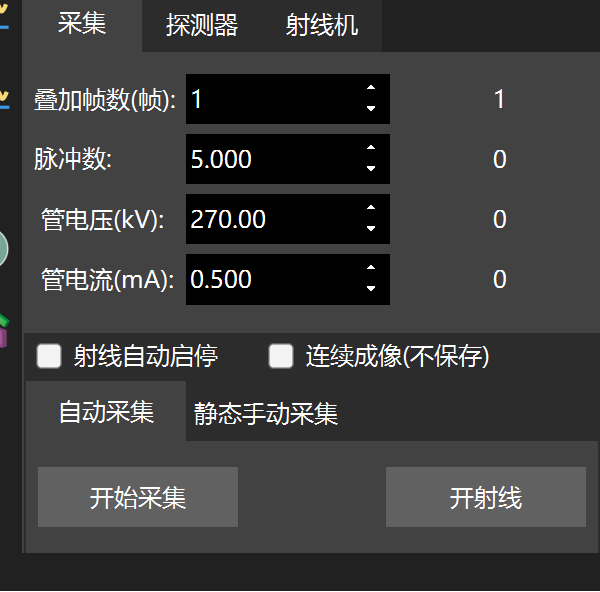

Image Acquisition •The software can set the integral time (number of pulses) •Software to set tube voltage, tube current (adjustable X-ray machine) •Automatic start and stop control of the X-ray machine •Image multi-frame superposition noise reduction (mainly used for dynamic flat plates) |
|
|
|

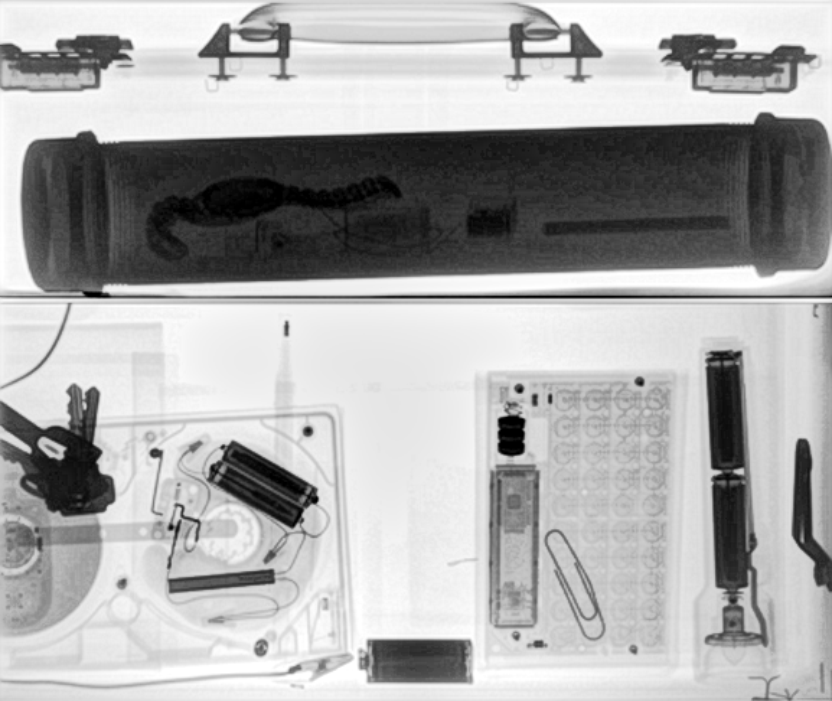

Image One-touch Enhancement Image one-button enhancement can enhance the image details through various algorithms, so that the image can be automatically adjusted to the best internal condition without professional learning on site. | |

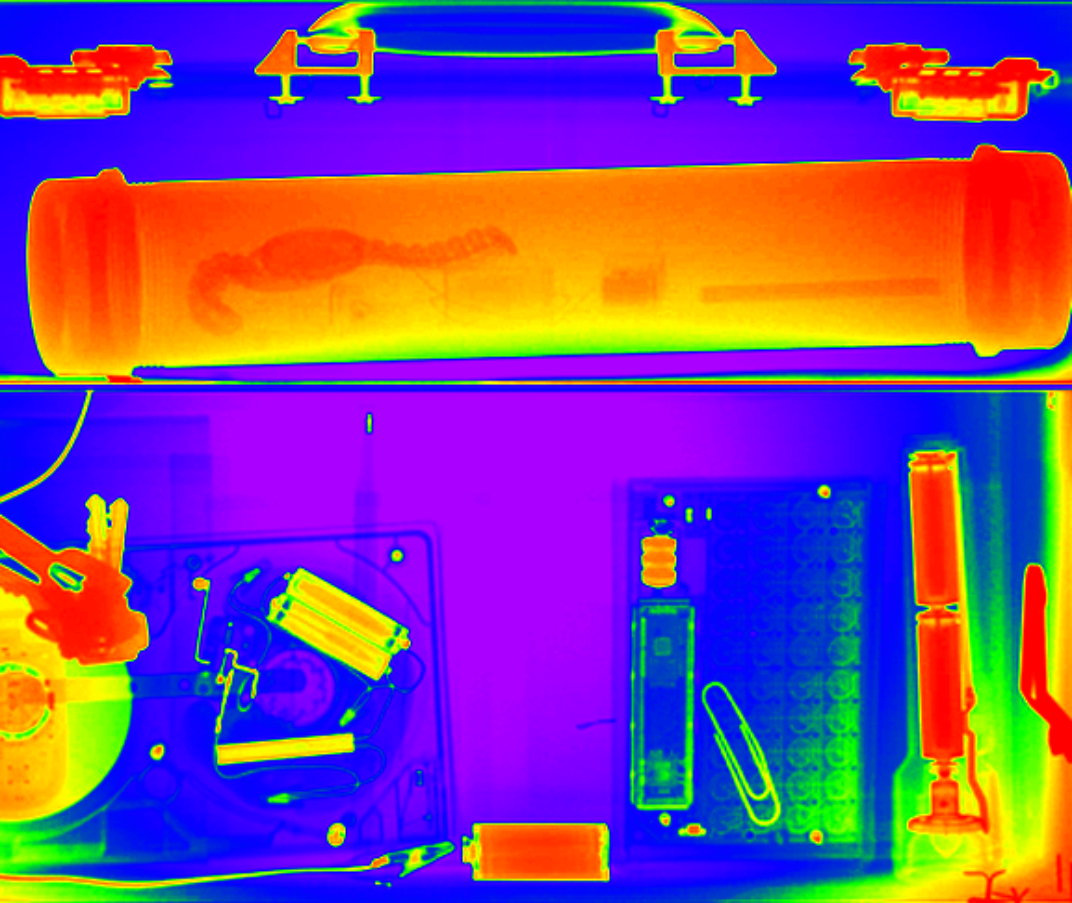

Dual Energy Imaging Distinguish between organic and inorganic materials. | |
