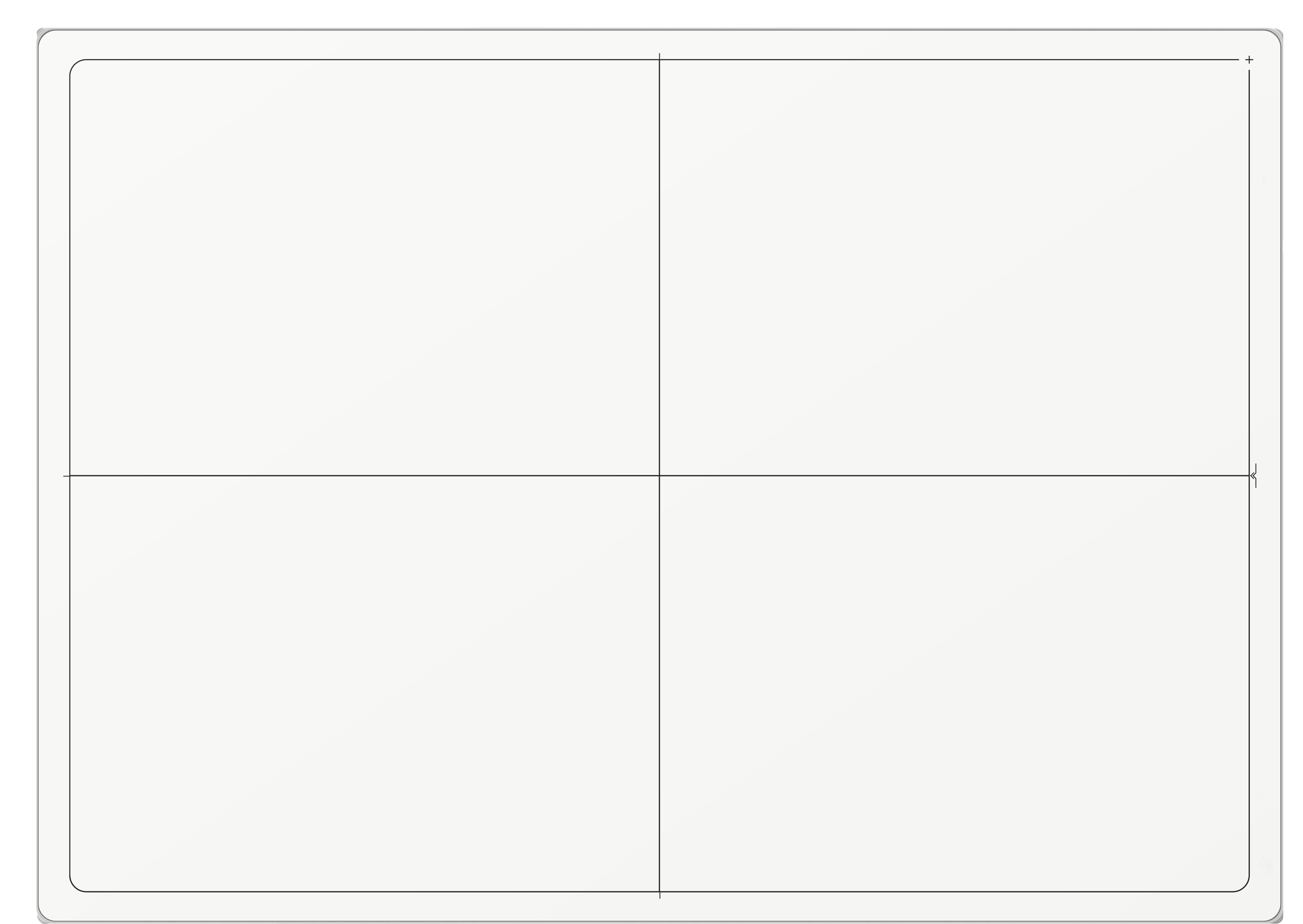

iStar4360 is a new generation of high-resolution 427mm × 604mm wireless static FPD. It adopts139 μm pixel pitch, and the scintillator uses CsI, which has higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar4360 | |||
| Type of Detector | Amorphous Silicon | Frame Rate | Maximum 0.2fps |
| Scintillator | CsI | Maximum Exposure Window | 180s |
| Pixel Pitch | 139μm | Radiographic Capability Range | 40-160kV |

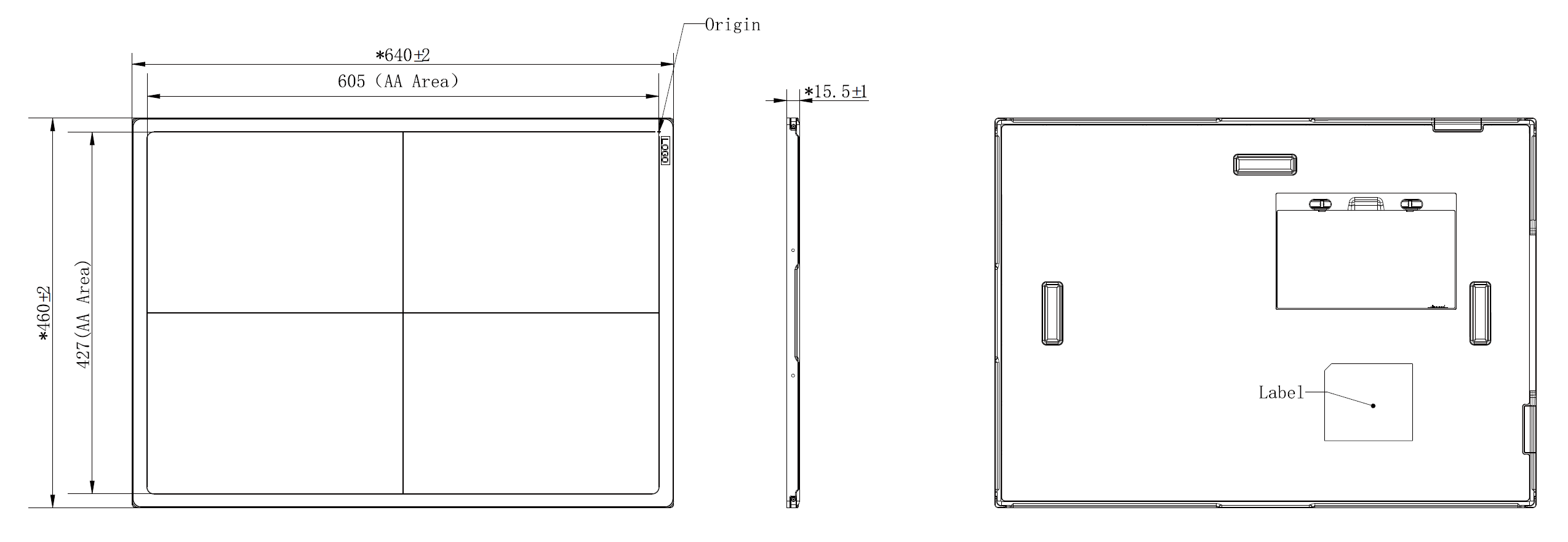

| Imaging Area | 427mmX604mm | Overall Dimensions | 640mmX460mmX15.5mm |
| Pixel Matrix | 3072X4352 | Weight | 5.0kg |
| Image Resolution | 4.6lp/mm | Ingress Protection | IP1X |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | Soft | Battery Life | 8h |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
