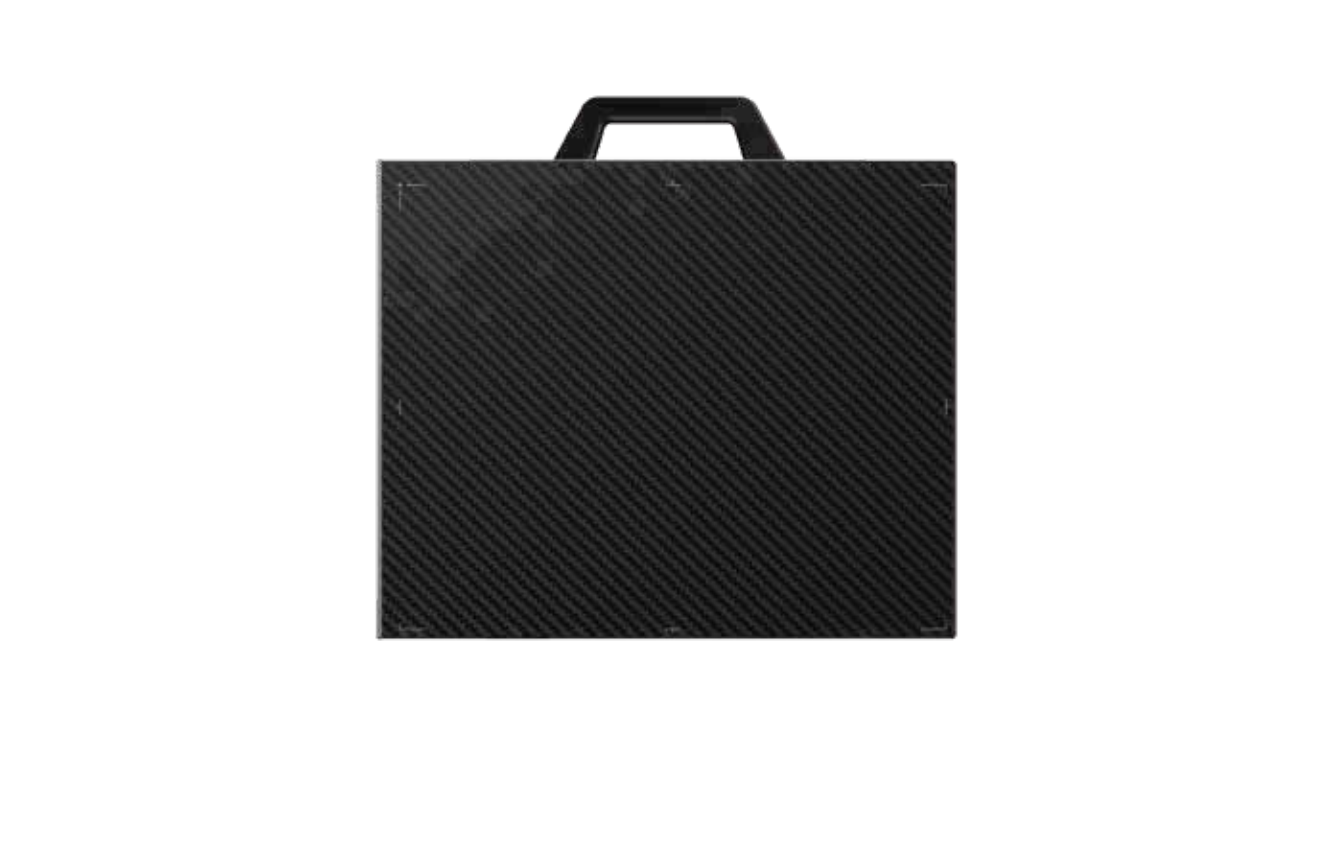

iStar3543L is a new generation of high-resolution 350mm × 430mm wireless static FPD. It adopts 100 μm pixel pitch, and the scintillator uses CSI, which provides higher image detail expression and endurance.
| iStar3543L | |||
| Type of Detector | Amorphous Silicon | Frame Rate | Maximum 1.0fps |
| Scintillator | CSI | Maximum Exposure Window | 180s |
| Pixel Pitch | 100μm | Radiographic Capability Range | - |

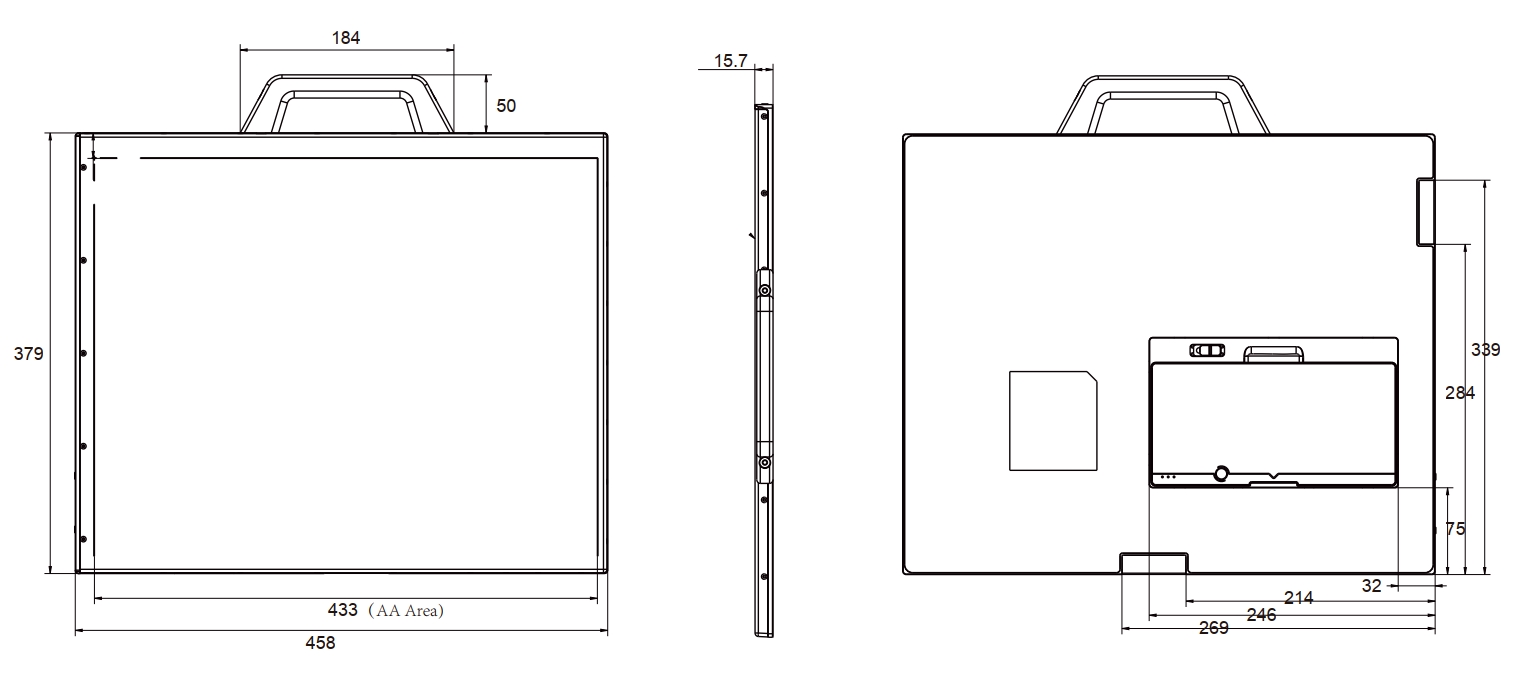

| Imaging Area | 350mmX430mm | Overall Dimensions | 384mmX460mmX15mm |
| Pixel Matrix | 3500X4300 | Weight | 4.0kg |
| Spatial Resolution | 5.0lp/mm | IP | IP67 |
| ADC | 16bit | Power Dissipation | 20W |
| Read Mode | Soft | Battery Life | 8h |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
