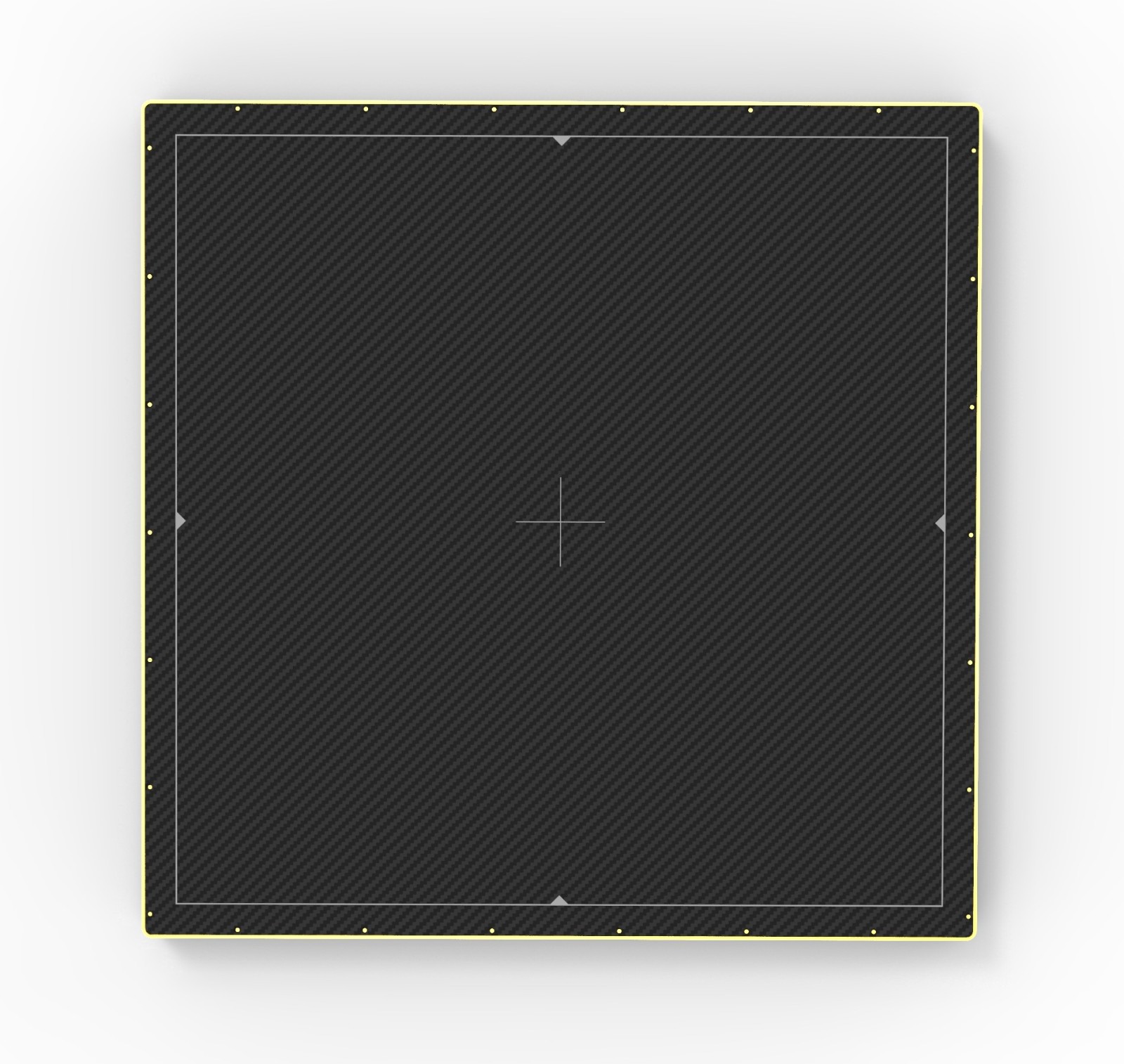

NDT4343DX is a new generation high-resolution 428mm×428mm dynamic FPD. It adopts 100 μm pixel pitch, and the scintillator adopts DRZ+(GOS)/CSI, which provides higher image detail expression and endurance.
| NDT4343DX | |||
| Type of Detector | Amorphous Silicon | Frame Rate | 8fps（1X1） |
| Scintillator | CSI/DRZ+(GOS) | Maximum Exposure Window | 10s |
| Pixel Pitch | 100μm | Radiographic Capability Range | Maximum 450kV Optional |

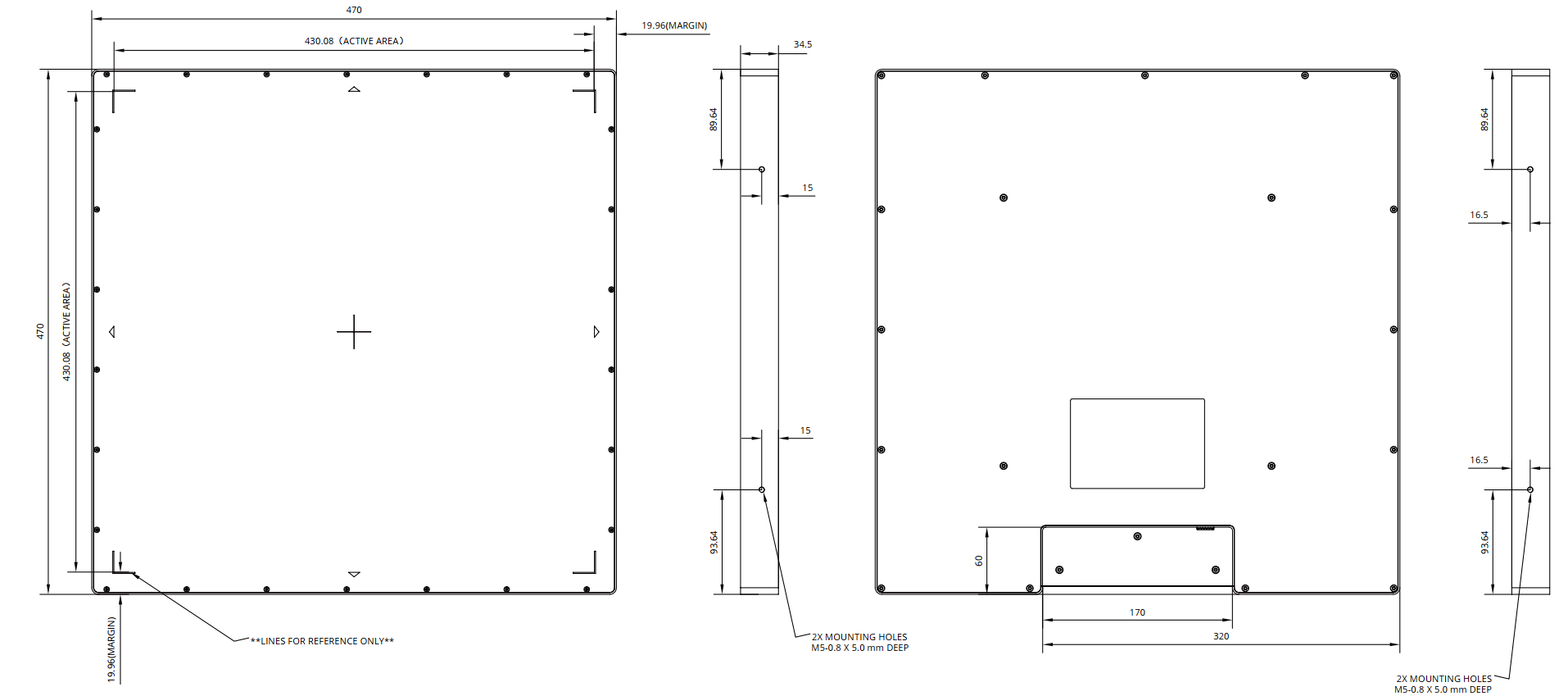

| Imaging Area | 428mmX428mm | Overall Dimensions | 470mmX470mmX34.5mm |
| Pixel Matrix | 4288X4288 | Weight | 10.8kg |
| Image Resolution | 5.0lp/mm | Ingress Protection | IPX0 |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | Soft | Power Supply | AC/DC |
| Data Interface | Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
