NDT1313X is a new generation high-resolution 130mm × 130mm dynamic FPD. It adopts 85 μm pixel pitch, and the scintillator adopts DRZ+(GOS)/CSI, which provides higher image detail expression and endurance.
| NDT1313X | |||
| Type of Detector | Amorphous Silicon | Frame Rate | 20fps（1X1) 40fps（2X2） |
| Scintillator | CSI/DRZ+(GOS) | Maximum Exposure Window | 10s |
| Pixel Pitch | 85μm | Radiographic Capability Range | 40-320kV |

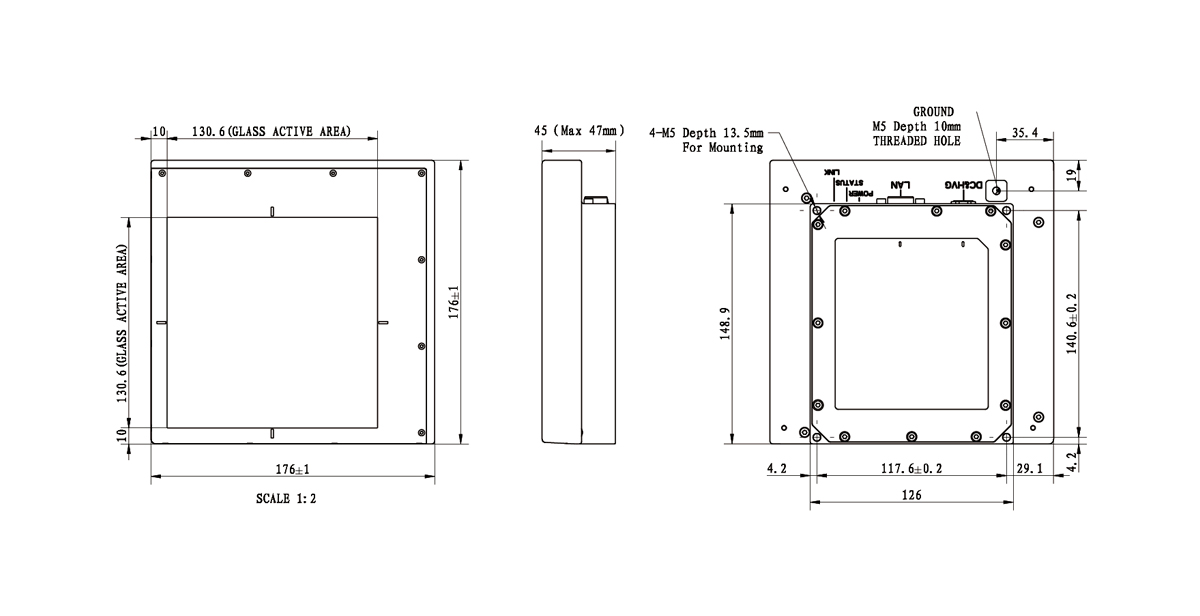

| Imaging Area | 130mmX130mm | Overall Dimensions | 176mmX176mmX47mm |
| Pixel Matrix | 1536X1536 | Weight | 2.2kg |
| Image Resolution | 5.8lp/mm | Ingress Protection | IPX0 |
| ADC | 16bit | Power Dissipation | 12W |
| Trigger Mode | Soft | Power Supply | AC/DC |
| Data Interface | Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
