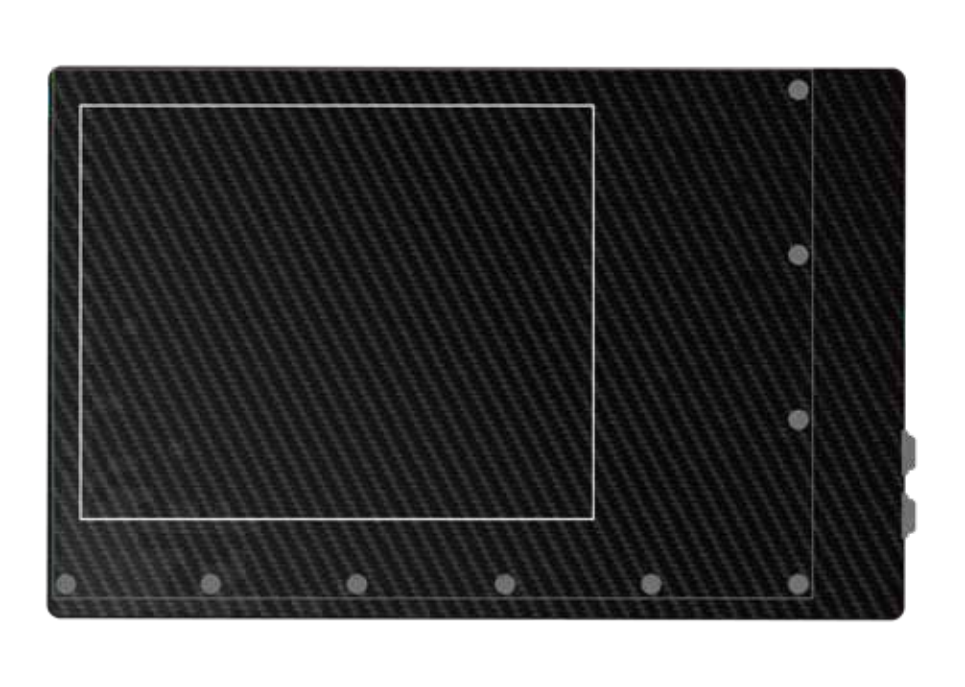

NDT1215X is a new generation high-resolution 116mm × 143mm dynamic FPD. It adopts 50 μm pixel pitch, and the scintillator uses CSI, which provides higher image detail expression and endurance. Adopting CMOS flat panel imaging technology, with minimal residual images.。
| NDT1215X | |||
| Type of Detector | CMOS | Frame Rate | 9fps（1X1） |
| Scintillator | CSI | Maximum Exposure Window | 10s |
| Pixel Pitch | 50μm | Radiographic Capability Range | 40-320kV |
| Imaging Area | 116mmX143mm | Overall Dimensions | 240mmX154mmX29mm |
| Pixel Matrix | 2430X2882 | Weight | 2.5kg |
| Image Resolution | 10.0lp/mm | Ingress Protection | IPX0 |
| ADC | 16bit | Power Dissipation | 24W |
| Trigger Mode | Soft | Power Supply | AC/DC |
| Data Interface | 100 Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
