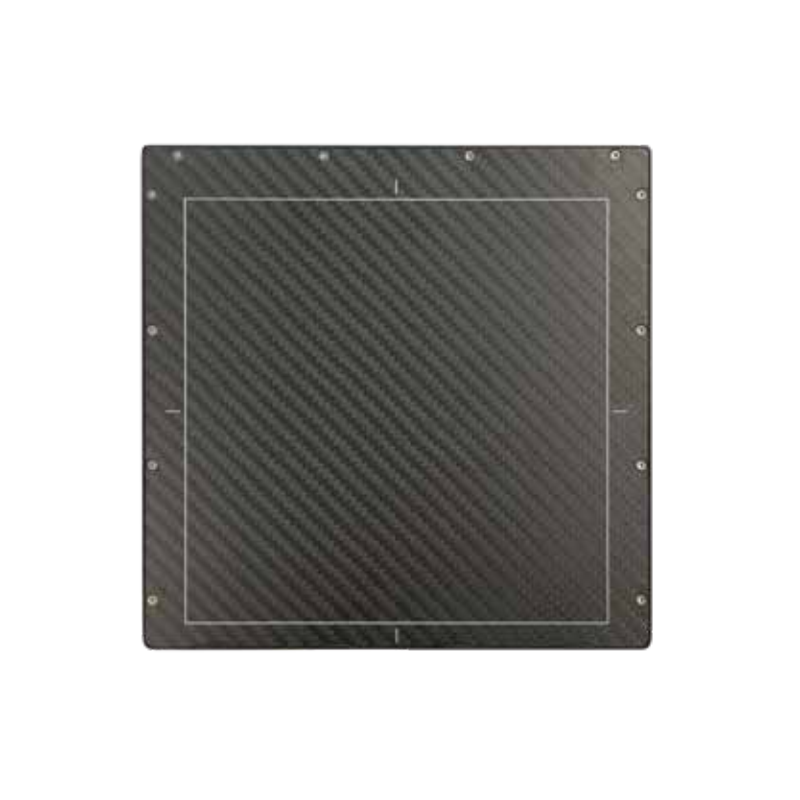

NDT1515X is a new generation high-resolution 154mm × 154mm dynamic FPD. It adopts 100 μm pixel pitch, and the scintillator adopts DRZ+(GOS)/CSI, which provides higher image detail expression and endurance.
| NDT1515X | |||
| Type of Detector | Amorphous Silicon | Frame Rate | 30fps（1X1) 60fps（2X2） |
| Scintillator | CSI/DRZ+(GOS) | Maximum Exposure Window | 10s |
| Pixel Pitch | 100μm | Radiographic Capability Range | 40-320kV |
| Imaging Area | 154mmX154mm | Overall Dimensions | 183mmX187mmX52mm |
| Pixel Matrix | 1536X1536 | Weight | 5.0kg |
| Image Resolution | 5.0lp/mm | Ingress Protection | IPX0 |
| ADC | 16bit | Power Dissipation | 15W |
| Trigger Mode | Soft | Power Supply | AC/DC |
| Data Interface | 100 Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
