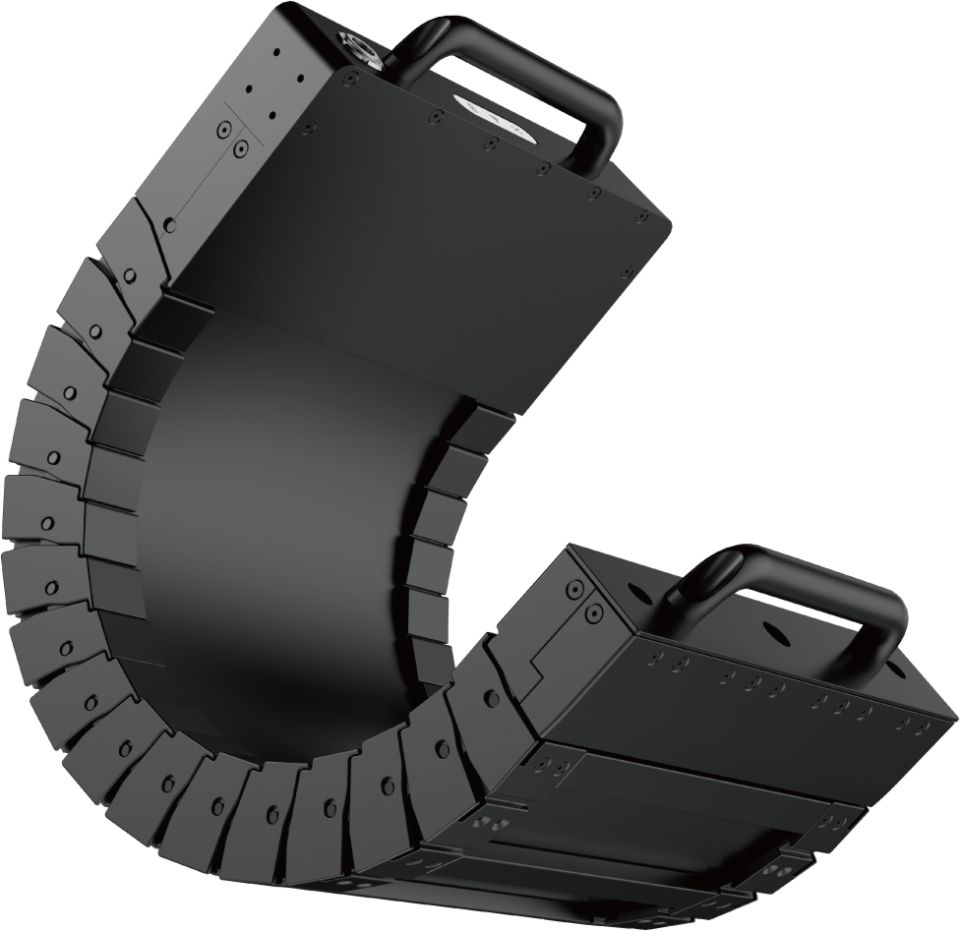

iStar1025BA is a new generation of high-resolution102mm×256mm flexible detector. It adopts 100 μm pixel pitch and GOS for scintillator, with higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar1025BA | |||
| Type of Detector | Amorphous Silicon | Radius of Curvature | ≧80mm |
| Scintillator | GOS | Maximum Exposure Window | 180s |
| Pixel Pitch | 100μm | Image Resolution | 5.0lp/mm |

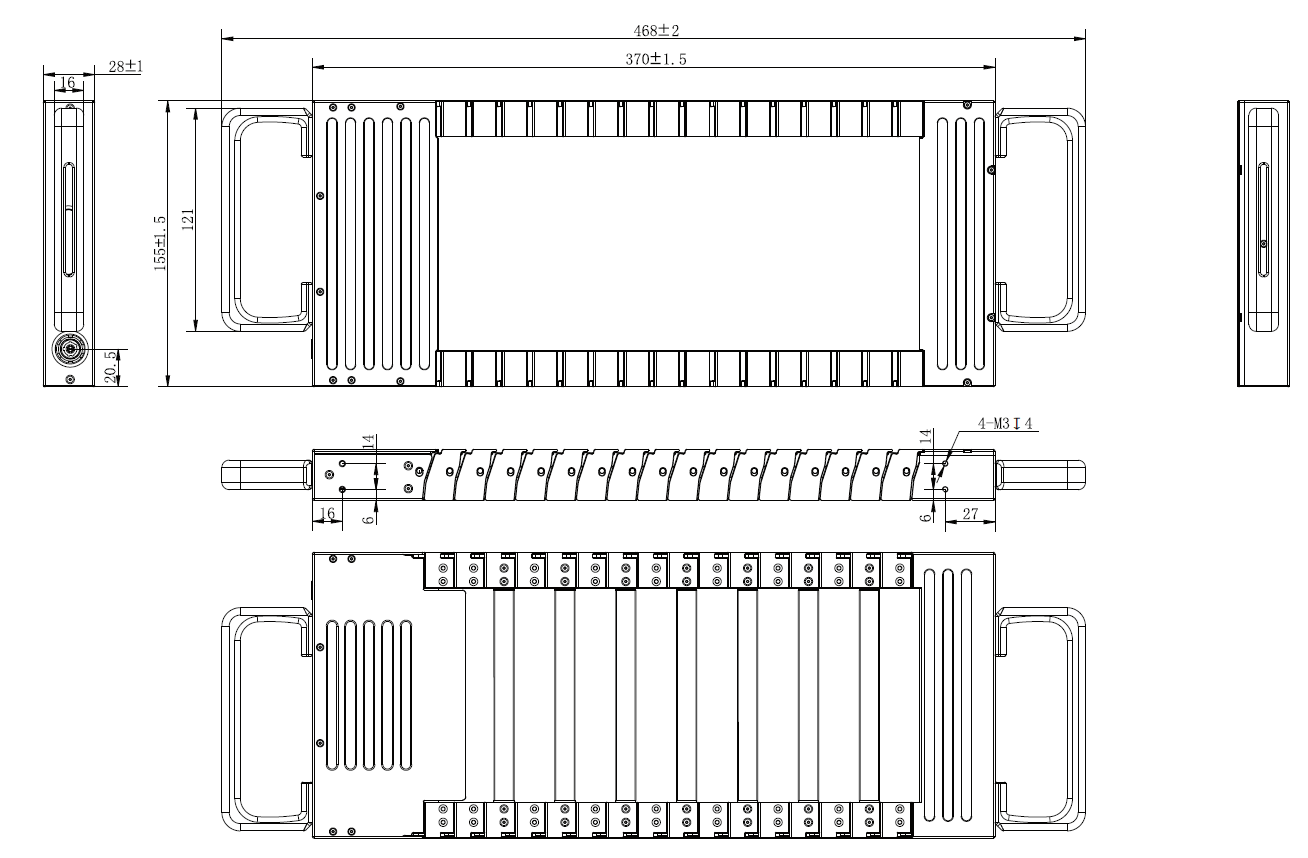

| Imaging Area | 102.4mmX256mm | Overall Dimensions | 155mmX364mmX28mm |
| Pixel Matrix | 1024X2560 | Weight | 2.5kg |
| ADC | 16bit | Battery Life | 8h |
| Trigger Mode | Soft/AED | Operate Environment | Temperature-20℃-50℃ Humidity:5%-90%（No Condensation） |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac、Gigabit Network Cable | Storage Environment | Temperature:-20℃-60℃ Humidity:5%-95%（No Condensation） |
