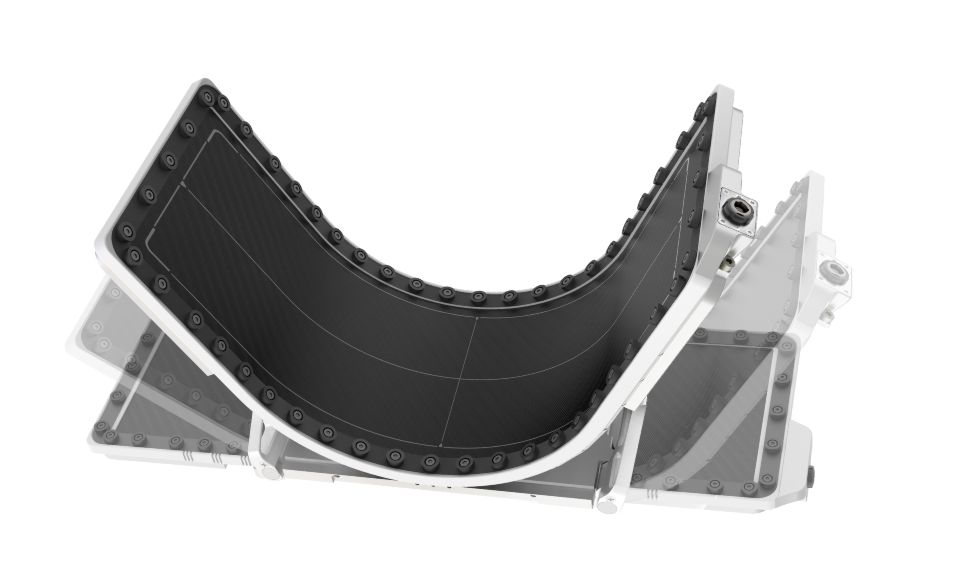

iStar1043B is a new generation of high-resolution 100mm×430mm flexible detector. It adopts 100 μm pixel pitch and GOS for scintillator, with higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar1043B | |||
| Type of Detector | Amorphous Silicon | Radius of Curvature | ≧204mm |
| Scintillator | GOS | Maximum Exposure Window | 180s |
| Pixel Pitch | 100μm | Image Resolution | 5.0lp/mm |
| Imaging Area | 100mm×430mm | Overall Dimensions | 524.8mm×160.3mm×28.7mm |
| Pixel Matrix | 1024×4300 | Weight | 2.1kg |
| ADC | 16bit | Battery Life | 8h |
| Trigger Mode | Soft | Operate Environment | Temperature:-20℃-50℃ Humidity:10%-90%（No Condensation） |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Storage Environment | Temperature:-10℃-55℃ Humidity:10%-90%（No Condensation） |
