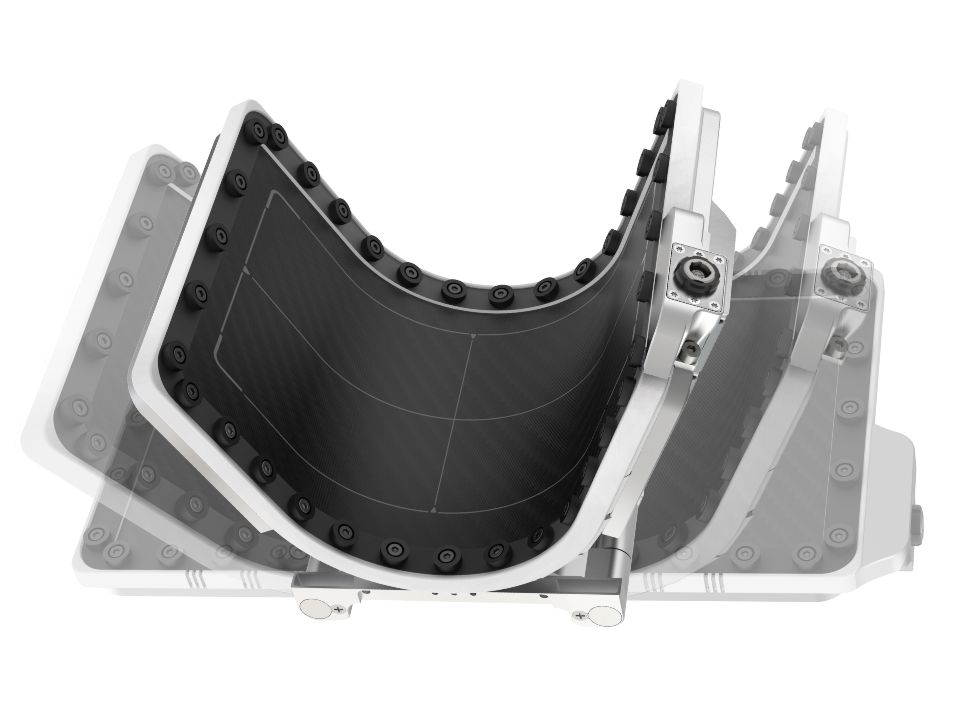

iStar1024B is a new generation of high-resolution 100mm × 240mm flexible detector. It adopts 100 μm pixel pitch and GOS for scintillator, with higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar1024B | |||
| Type of Detector | Amorphous Silicon | Radius of Curvature | ≧51mm |
| Scintillator | GOS | Maximum Exposure Window | 180s |
| Pixel Pitch | 100μm | Image Resolution | 5.0lp/mm |

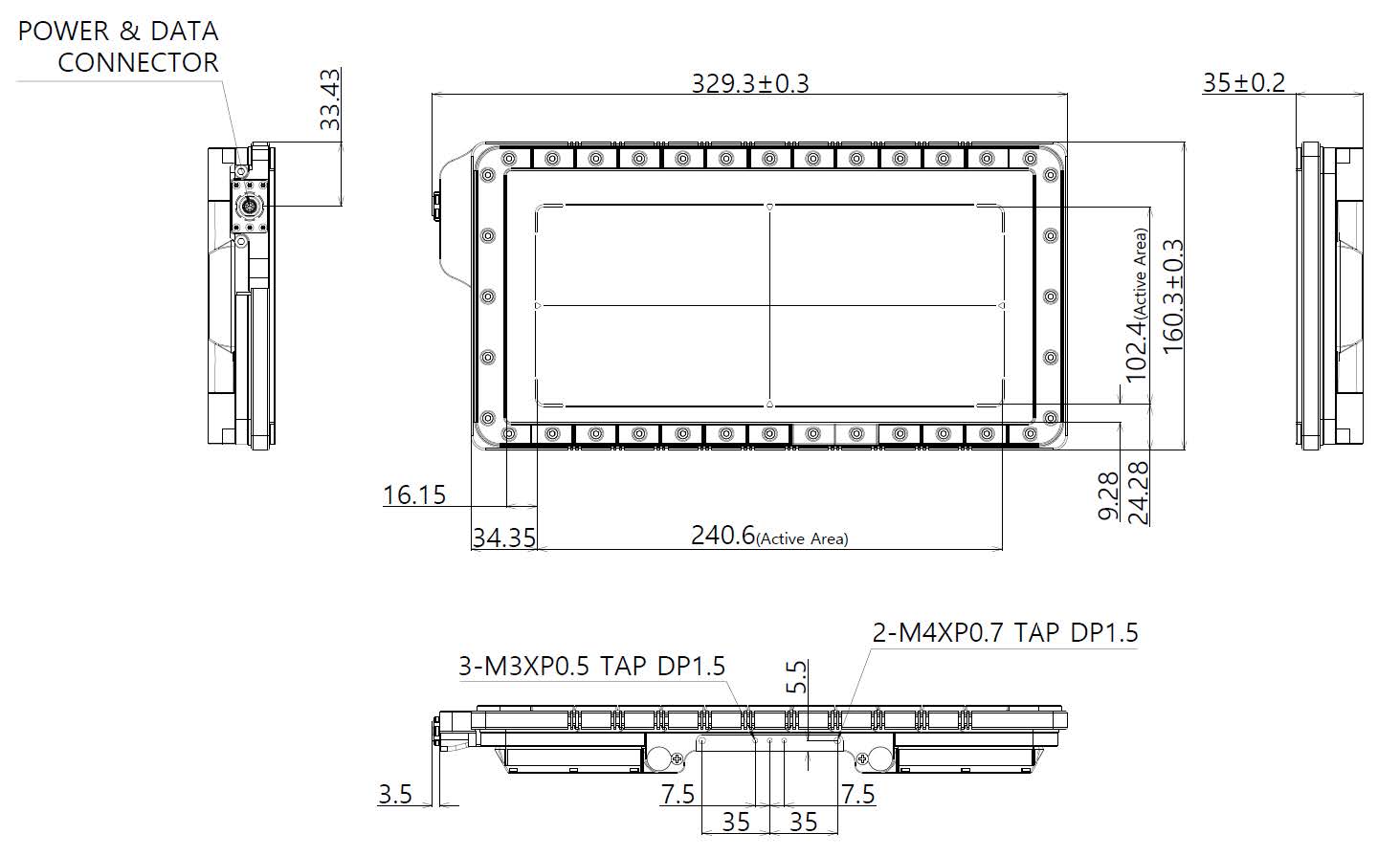

| Imaging Area | 100mmX240mm | Overall Dimensions | 329.3mmX160.3mmX35mm |
| Pixel Matrix | 1024X2406 | Weight | 1.5kg |
| ADC | 16bit | Battery Life | 8h |
| Trigger Mode | Soft | Operate Environment | Temperature:-20℃-50℃ Humidity:10%-90%（No Condensation） |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Storage Environment | Temperature:-10℃-55℃ Humidity:10%-90%（No Condensation） |
