NDT2430D is a new generation high-resolution 243mm × 307mm dynamic FPD. It adopts 100 μm pixel pitch, and the scintillator adopts DRZ+(GOS)/CSI, which provides higher image detail expression and endurance.
| NDT2430D | |||
| Type of Detector | Amorphous Silicon | Frame Rate | 2.5G Ethernet：12fps（1X1) Gigabit Ethernet：6fps（1X1） |
| Scintillator | CSI/DRZ+(GOS) | Maximum Exposure Window | 10s |
| Pixel Pitch | 100μm | Radiographic Capability Range | 40-160kV/370kV |

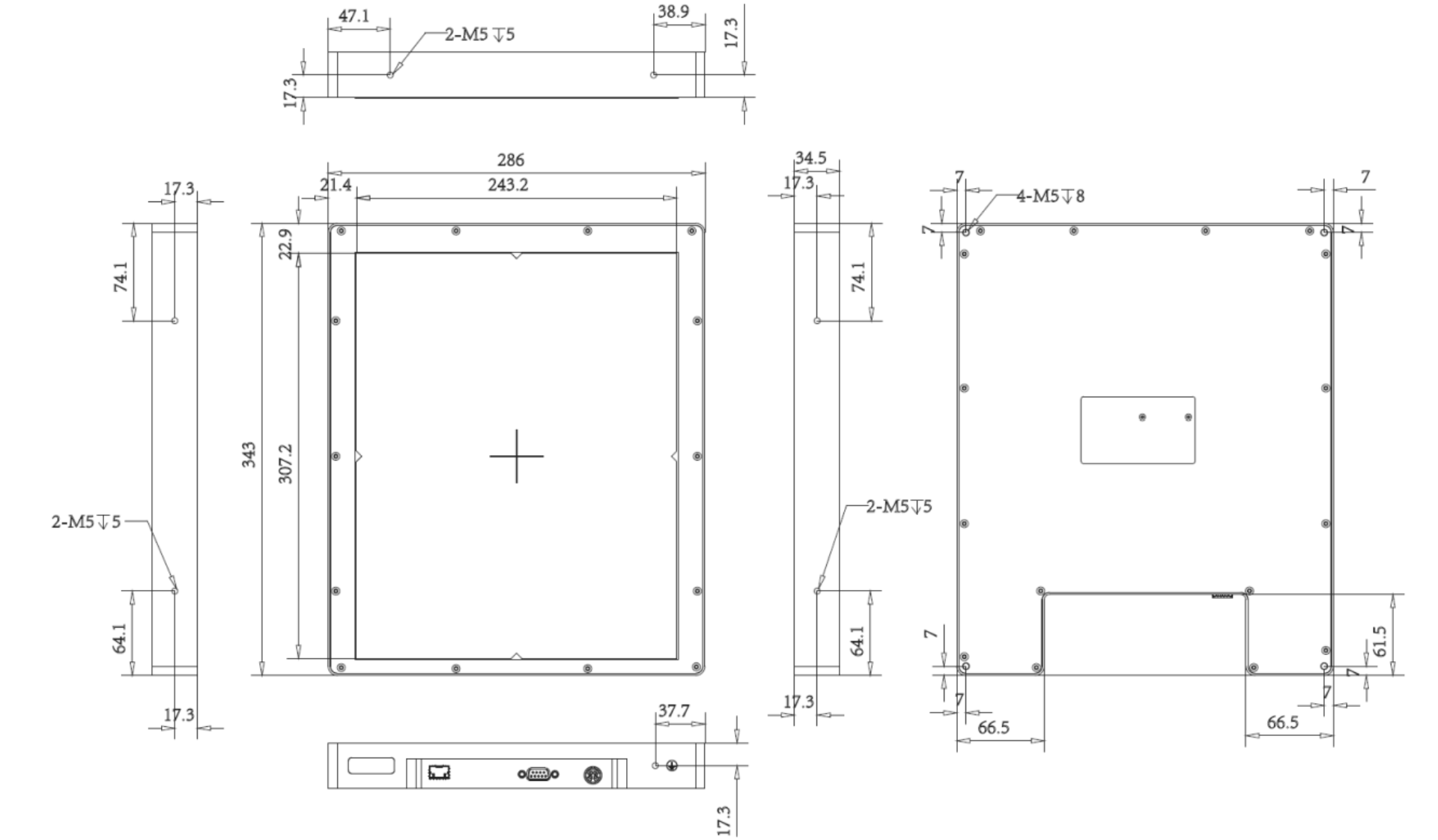

| Imaging Area | 243mmX307mm | Overall Dimensions | 343mmX286mmX34.5mm |
| Pixel Matrix | 2432X3072 | Weight | 4.4kg/6.9kg |
| Spatial Resolution | 5.0lp/mm | Ingress Protection | IPX0 |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | Soft | Power Supply | AC/DC |
| Data Interface | Gigabit Ethernet/2.5G Ethernet | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
