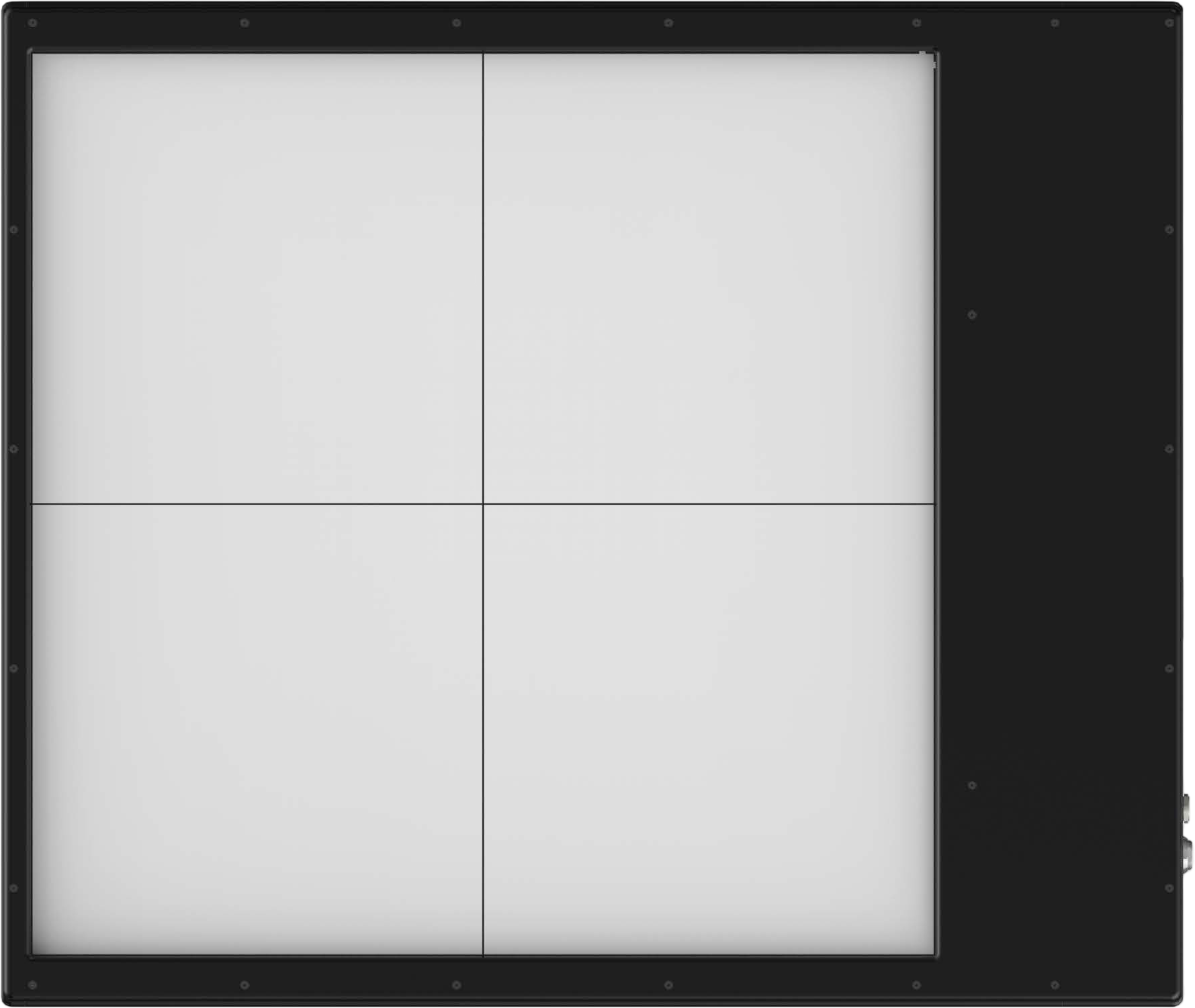

NDT4343M2 is a new generation high-resolution 426mm x 426mm dynamic FPD. It adopts 100 μm pixel pitch, and the scintillator uses Csl / DRZ-Fine, which provides higher image detail expression and endurance.
| NDT4343M2 | |||
| Type of Detector | Amorphous Silicon TFT | Read Mode | 10fps(1x1);20fps(2x2);30fps(3x3);40fps(4x4) |
| Scintillator | Csl / DRZ-Fine | Dynamic range | >70dB |
| Pixel Pitch | 100um | Energy Range | 40kV-450kV |

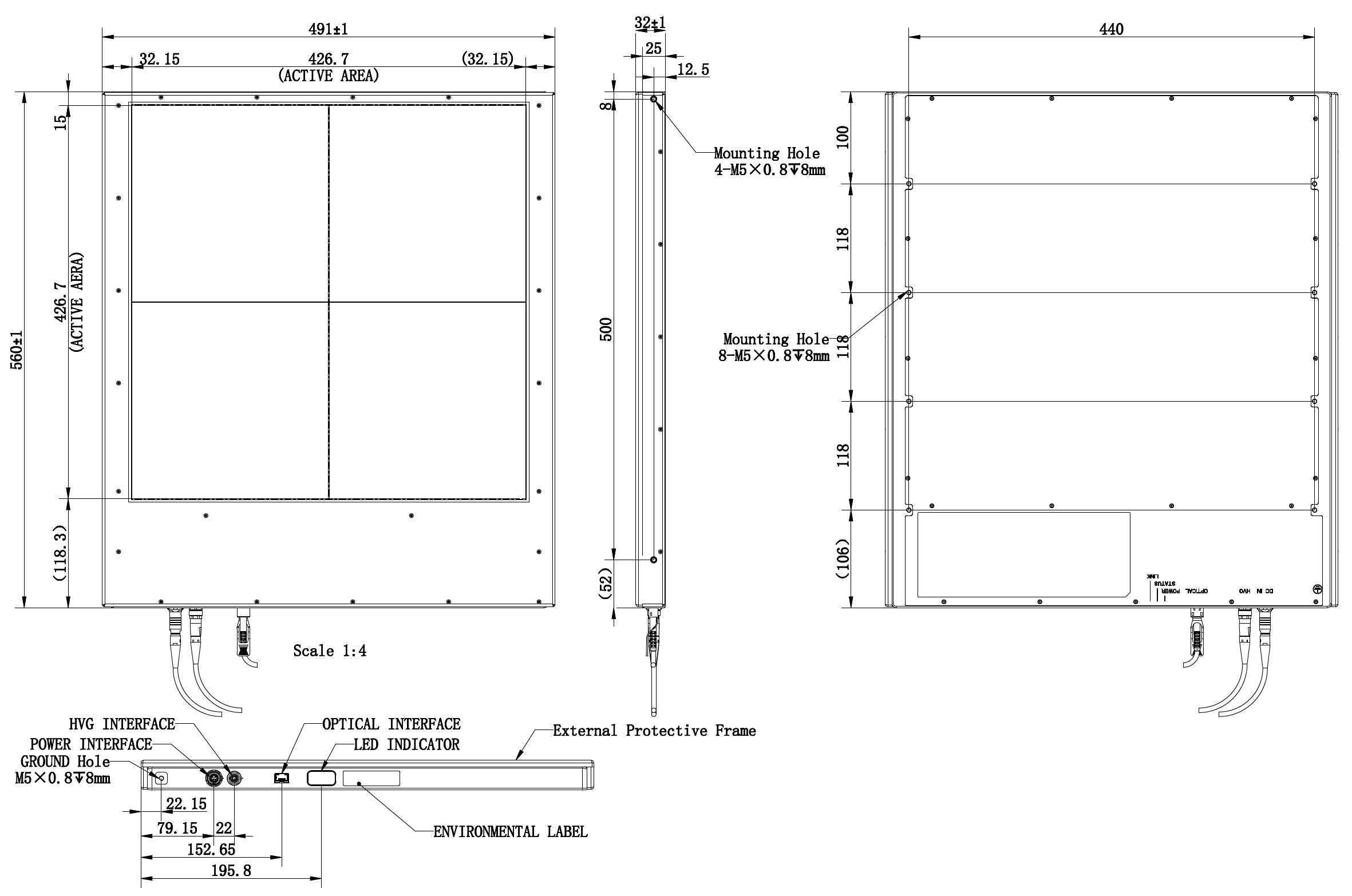

| Imaging Area | 426mm x 426mm | Overall Dimensions | 491mm × 678mm × 32mm |
| Pixel Matrix | 4260x 4260 | Weight | ＜20kg |
| ADC | 16bit | Power Dissipation | 30W |
| Trigger Mode | Continuous Acquisition, Pulse Synchronization | Power Supply | AC/DC |
| Data Interface | Optical fiber | Operate Environment | Temperature:10℃-40℃ |
| Storage Environment | Temperature:-10℃-55℃ | ||
