NDT4343M is a new generation high-resolution 427mm x 427mm dynamic FPD. It adopts 139 μm pixel pitch, and the scintillator uses CsI:Tl/DRZ-Plus, which provides higher image detail expression and endurance.
| NDT4343M | |||
| Type of Detector | Amorphous Silicon TFT | Read Mode | 6fps（1×1）；12fps（2×2）；18fps（3×3）；24fps（4×4） |
| Scintillator | CsI:Tl/DRZ-Plus | Spatial resolution | 3.6lp/mm |
| Pixel Pitch | 139um | Energy Range | 40kV-225kV/450kV |

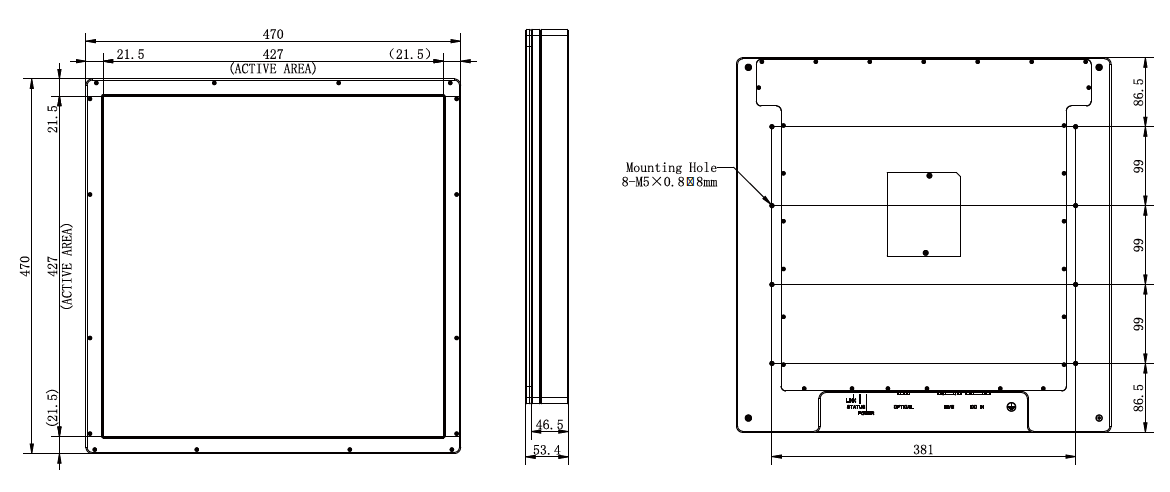

| Imaging Area | 427mm x 427mm | Overall Dimensions | 470 mm × 470 mm× 53.4/46.5mm |
| Pixel Matrix | 3072 × 3072 | Weight | 20kg/26kg |
| ADC | 16bit | Power Dissipation | 24W |
| Trigger Mode | Continuous Acquisition, Pulse Synchronization | Power Supply | AC/DC |
| Data Interface | Optical Fiber | Operate Environment | Temperature:10℃-40℃ |
| Storage Environment | Temperature:-10℃-55℃ | ||
