NDT4343X is a new generation high-resolution 427mm × 427mm dynamic FPD. It adopts139 μm pixel pitch, and the scintillator adopts DRZ+(GOS)/CSI, which provides higher image detail expression and endurance.
| NDT4343X | |||
| Type of Detector | Amorphous Silicon | Frame Rate | Gigabit Network Cable：2fps（1X1） |
| Scintillator | CSI/DRZ+(GOS) | Maximum Exposure Window | 10s |
| Pixel Pitch | 139μm | Radiographic Capability Range | - |

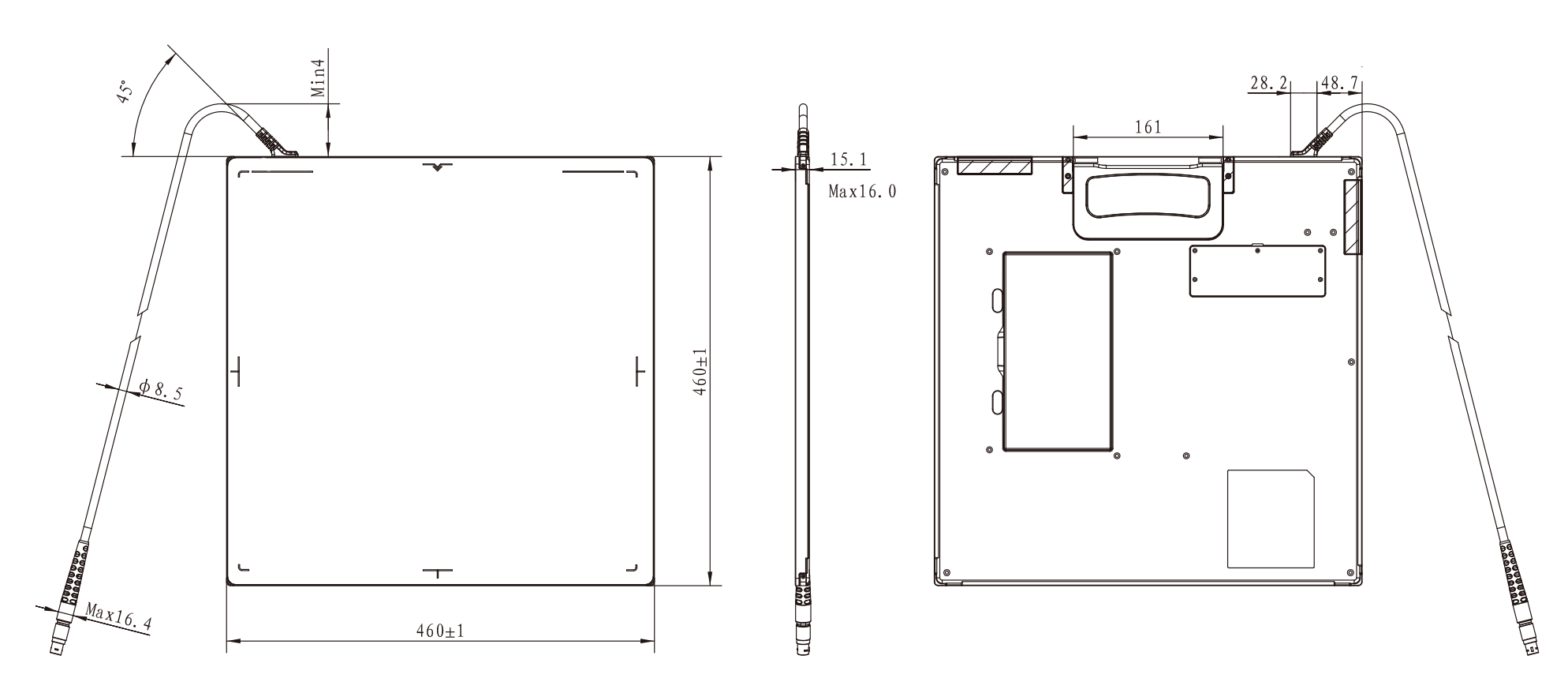

| Imaging Area | 427mmX427mm | Overall Dimensions | 460mmX460mmX16mm |
| Pixel Matrix | 3072X3072 | Weight | 4.0kg |
| Image Resolution | 3.6lp/mm | Ingress Protection | IPX0 |
| ADC | 16bit | Power Dissipation | 20W |
| Trigger Mode | Soft | Power Supply | AC/DC |
| Data Interface | Gigabit Network Cable | Operate Environment | Temperature:5℃-35℃ Humidity:5%-95%（No Condensation） |
| Storage Environment | Temperature:-20℃-55℃ Humidity:5%-95%（No Condensation） | ||
