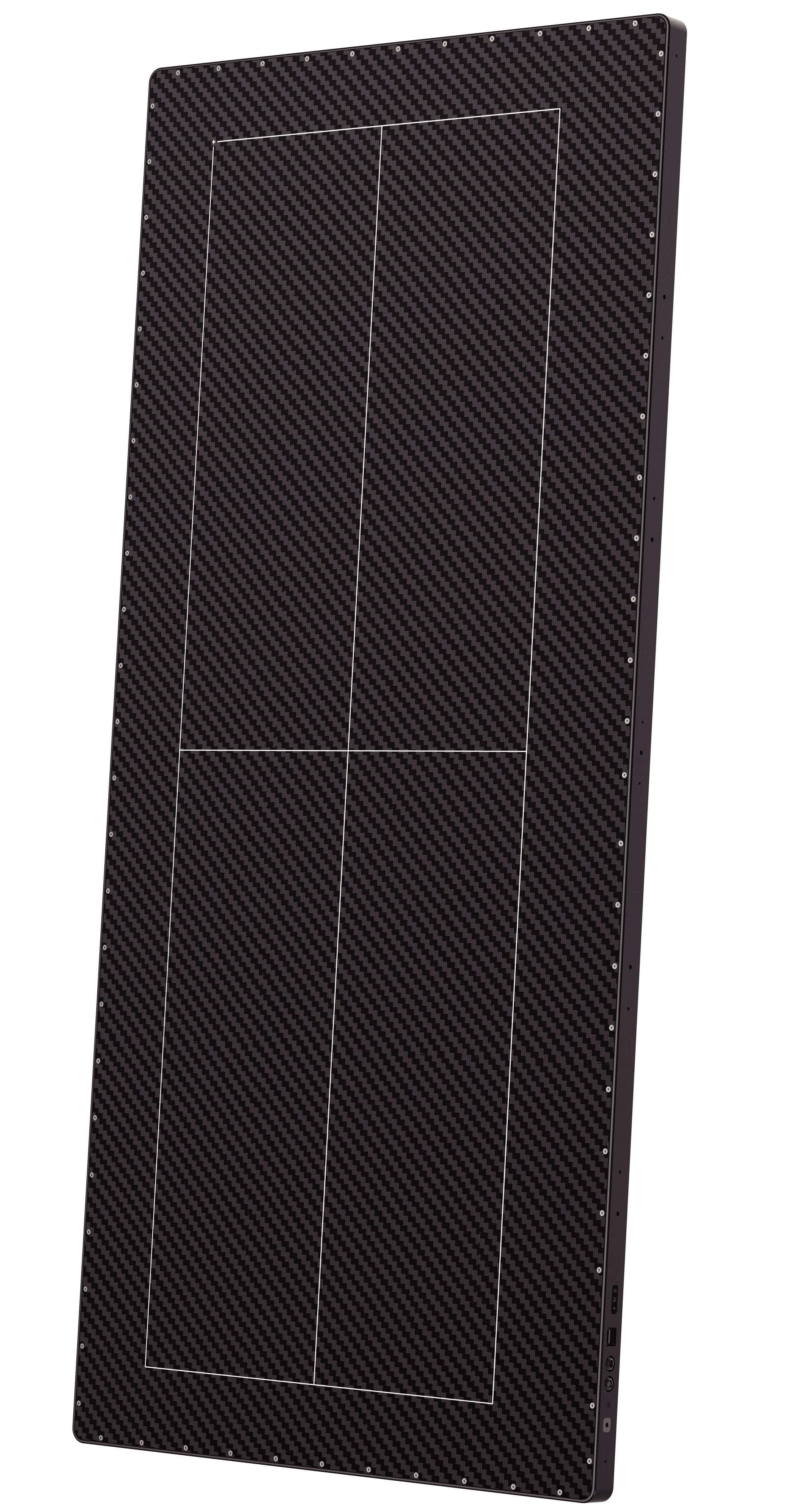

NDT43120HE is a new generation high-resolution 420mm × 1203mm dynamic FPD. It adopts139 μm pixel pitch, and the scintillator uses DRZ-Plus, which provides higher image detail expression and battery life.
| NDT43120HE | |||
| Type of Detector | Amorphous Silicon TFT | Read Mode | 5fps（1X1）；10fps（2X2）；15fps（3X3） |
| Scintillator | DRZ-Plus | Dynamic Range | 73dB |
| Pixel Pitch | 139μm | Energy Range | 40kV-15MeV |
| Imaging Area | 420mmX1203mm | Overall Dimensions | 630mmX1365mmX30mm |
| Pixel Matrix | 3024X8656 | Weight | 30kg |
| ADC | 16bit | Power Dissipation | 40W |
| Trigger Mode | Continuous Acquisition, Pulse Synchronization | Power Supply | AC/DC |
| Data Interface | 2.5G Ethernet | Operate Environment | Temperature:10℃-40℃ |
| Storage Environment | Temperature:-20℃-55℃ | ||
