NDT4360HE is a new generation high-resolution 422mm × 600mm dynamic FPD. It adopts 139 μm pixel pitch, and the scintillator uses CSI/DRZ+, which provides higher image detail expression and endurance.
| NDT4360HE | |||
| Type of Detector | Amorphous Silicon TFT | Read Mode | 10fps（1×1）；25fps（2×2）；35fps（3×3）；45fps（4×4） |
| Scintillator | CSI/DRZ+ | Dynamic Range | 73dB |
| Pixel Pitch | 139um | Energy Range | 40kV-16MeV |

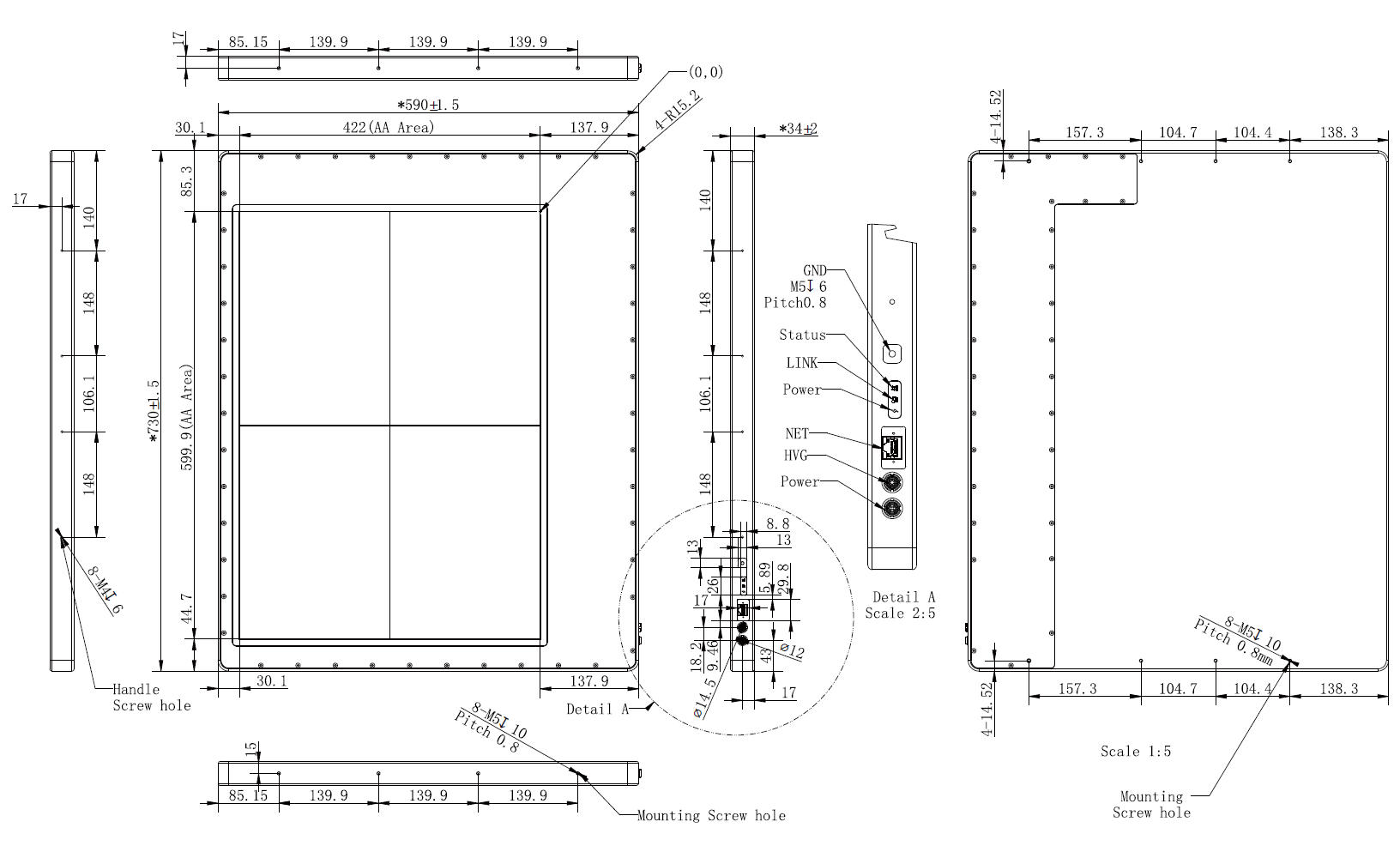

| Imaging Area | 422mm×600mm | Overall Dimensions | 590mmX730mmX34mm |
| Pixel Matrix | 3036×4316 | Weight | 30kg |
| ADC | 16bit | Power Dissipation | 25W |
| Trigger Mode | Continuous Acquisition, Pulse Synchronization | Power Supply | AC/DC |
| Data Interface | 2.5GEthernet/Optical Fiber | Operate Environment | Temperature:10℃-40℃ |
| Storage Environment | Temperature:-20℃-55℃ | ||
