NDT43108HE is a new generation high-resolution 430mm × 1075mm dynamic FPD. It adopts 140 μm pixel pitch, and the scintillator uses DRZ, which provides higher image detail expression and endurance.
| NDT43108HE | |||
| Type of Detector | Amorphous Silicon TFT | Read Mode | 7.5fps（1X1）；15fps（2X2）；22.5fps（3X3）；30fps（4X4） |
| Scintillator | DRZ | Dynamic Range | ≧82dB |
| Pixel Pitch | 140um | Energy Range | 40kV-16MeV |

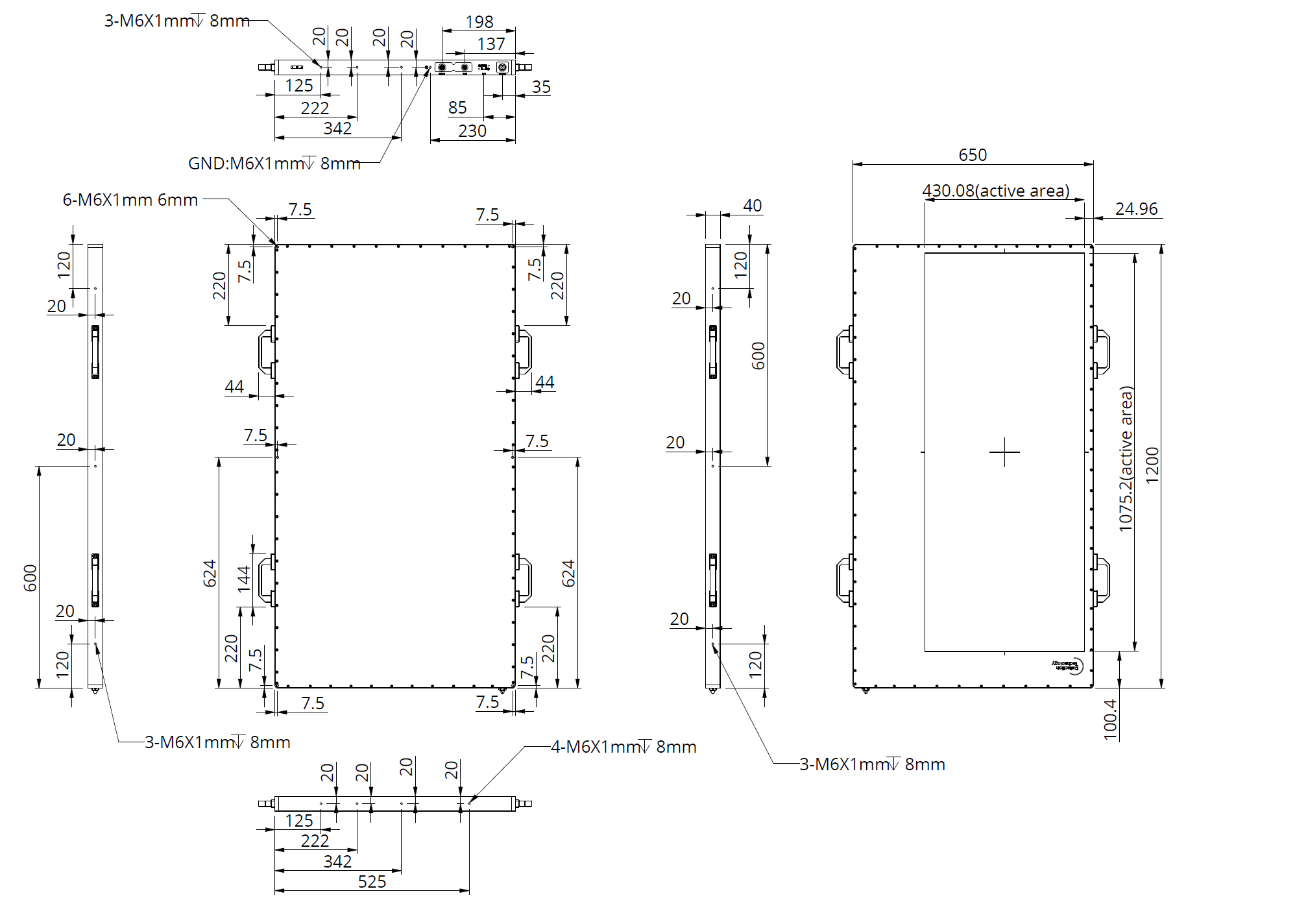

| Imaging Area | 430mmX1075mm | Overall Dimensions | 1200mmX650mmX40mm |
| Pixel Matrix | 3072×7680 | Weight | 35kg |
| ADC | 16bit | Power Dissipation | 35W |
| Trigger Mode | Pulse Synchronization | Power Supply | AC/DC |
| Data Interface | 10G Ethernet | Operate Environment | Temperature:10℃-35℃ |
| Storage Environment | Temperature:-10℃-50℃ | ||
