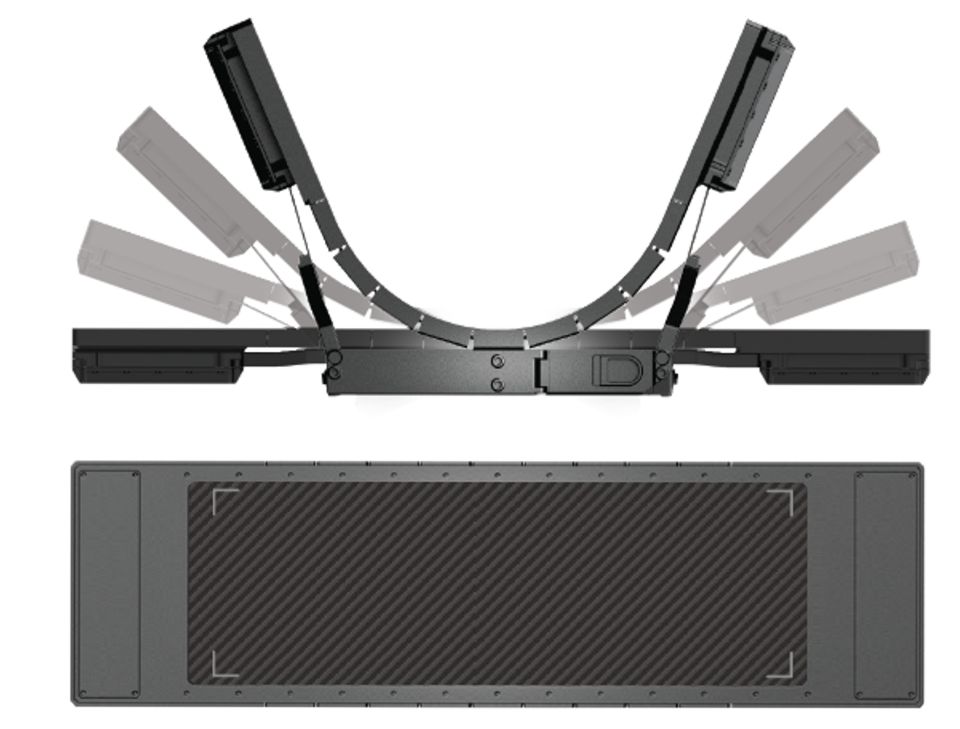

iStar1036BW is a new generation of high-resolution107mm×358.44mm flexible detector. It adopts 140 μm pixel pitch and CsI/DRZ+（GOS） for scintillator, with higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar1036BW | |||
| Type of Detector | Amorphous Silicon | Radius of Curvature | ≧204mm |
| Scintillator | CsI/DRZ+(GOS) | Maximum Exposure Window | 180s |
| Pixel Pitch | 140μm | Image Resolution | 3.5lp/mm |
| Imaging Area | 107mmX358.44mm | Overall Dimensions | 550mmX158.8mmX42.5mm |
| Pixel Matrix | 768X2560 | Weight | 2.3kg |
| ADC | 16bit | Battery Life | 8小时 |
| Trigger Mode | Soft | Operate Environment | Temperature:0℃-45℃ Humidity:30%-85%（No Condensation） |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Storage Environment | Temperature:-15℃-55℃ Humidity:5%-95%（No Condensation） |
