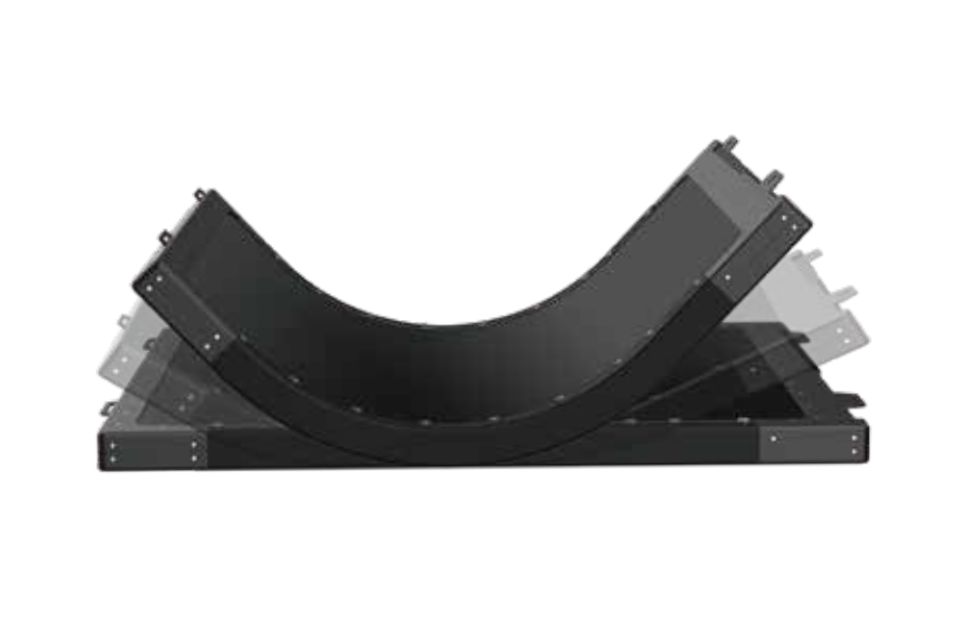

iStar4343BA is a new generation of high-resolution 430mm×430mm flexible detector. It adopts 100 μm pixel pitch and GOS for scintillator, with higher image sensitivity, better penetration, higher image detail expression and endurance.
| iStar4343BA | |||
| Type of Detector | Amorphous Silicon | Radius of Curvature | ≧115mm |
| Scintillator | GOS | Maximum Exposure Window | 180s |
| Pixel Pitch | 100μm | Image Resolution | 5.0lp/mm |

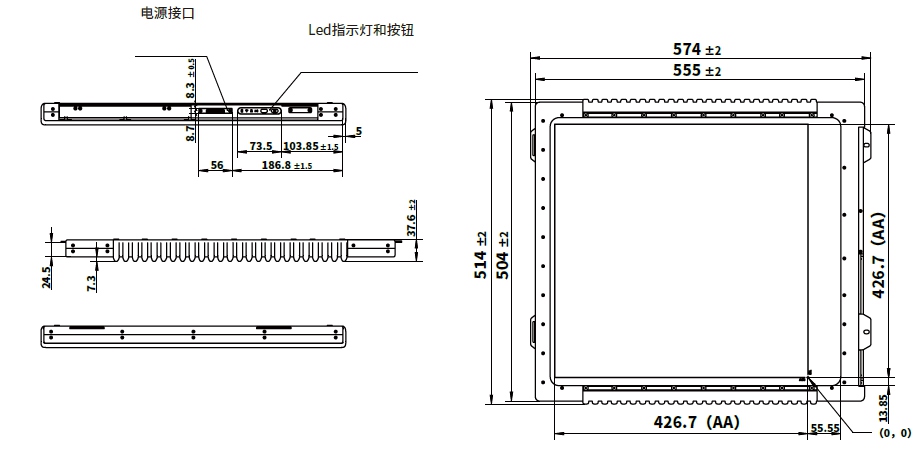

| Imaging Area | 430mm×430mm | Overall Dimensions | 569mm×504mm×30mm |
| Pixel Matrix | 4252×4252 | Weight | <5kg |
| ADC | 16bit | Battery Life | 8小时 |
| Trigger Mode | Soft/AED | Operate Environment | Temperature:-20℃-50℃ Humidity:5%-90%（No Condensation） |
| Data Interface | 2.4G/5.8G IEEE802.11 a/b/g/n/ac Gigabit Network Cable | Storage Environment | Temperature:-20℃-60℃ Humidity:5%-95%（No Condensation） |
