ECO is designed and manufactured in Denmark with advanced EVO technology. These units feature the finest components, including new low-weight composite materials, carefully assembled to make them reliable, durable, and affordable. High-quality cermet X-ray inserts protected by a rugged, rugged housing. The system is IP65 compliant and can fully operate in dusty and wet conditions.
Creating smarter workflows for portable X-rays has always been our driving force in developing ECOs. With its unique aspect ratio, ergonomic design and well-distributed 13 kg, the unit requires only easier handling and repositioning – even if only one person. -The wide operating temperature range of 20 ° C to+50 ° C allows ECO to be very reliable even in extreme environments, while its intuitive interface allows a smarter workflow.
ECO also makes good economic sense: as a one-person tool, you can reduce labor costs and get faster, smarter workflows because it's easier to operate and carry – while small focus offers the possibility of shorter exposure times and higher image quality. This is what we call economy.
 |  | |

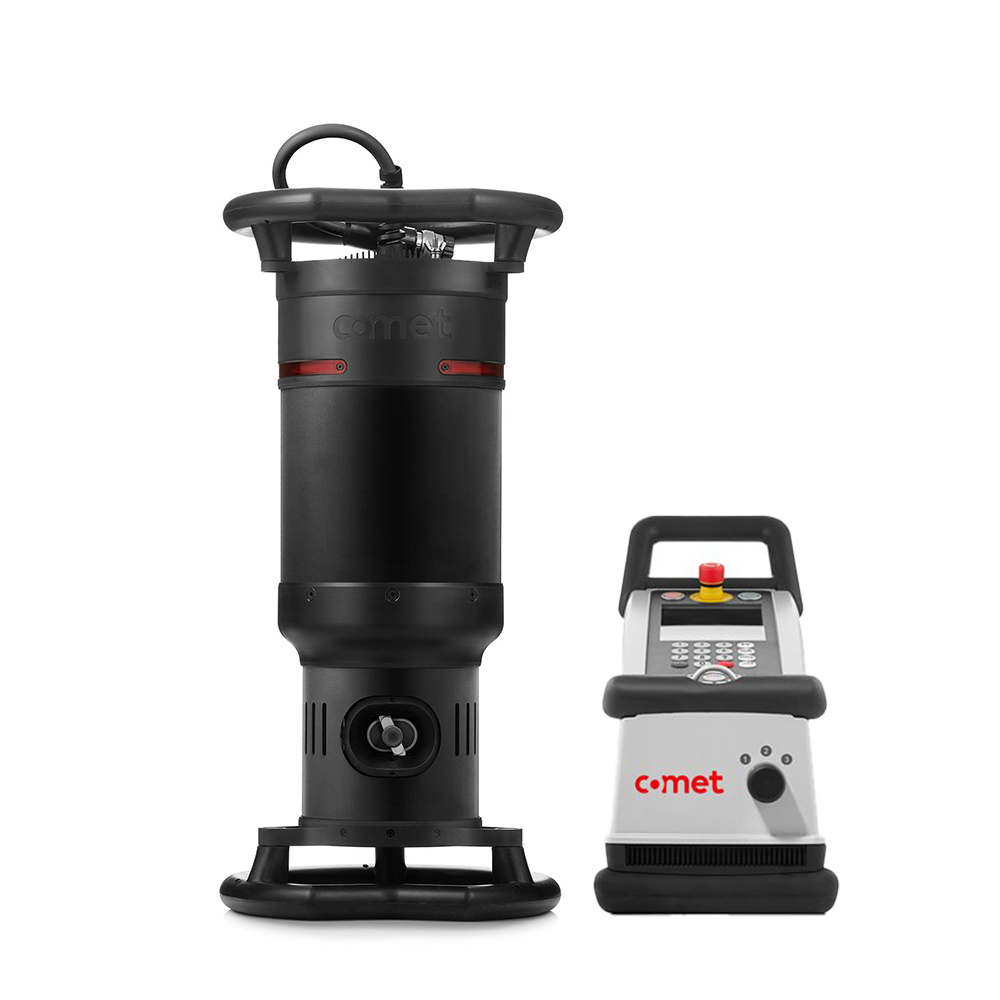

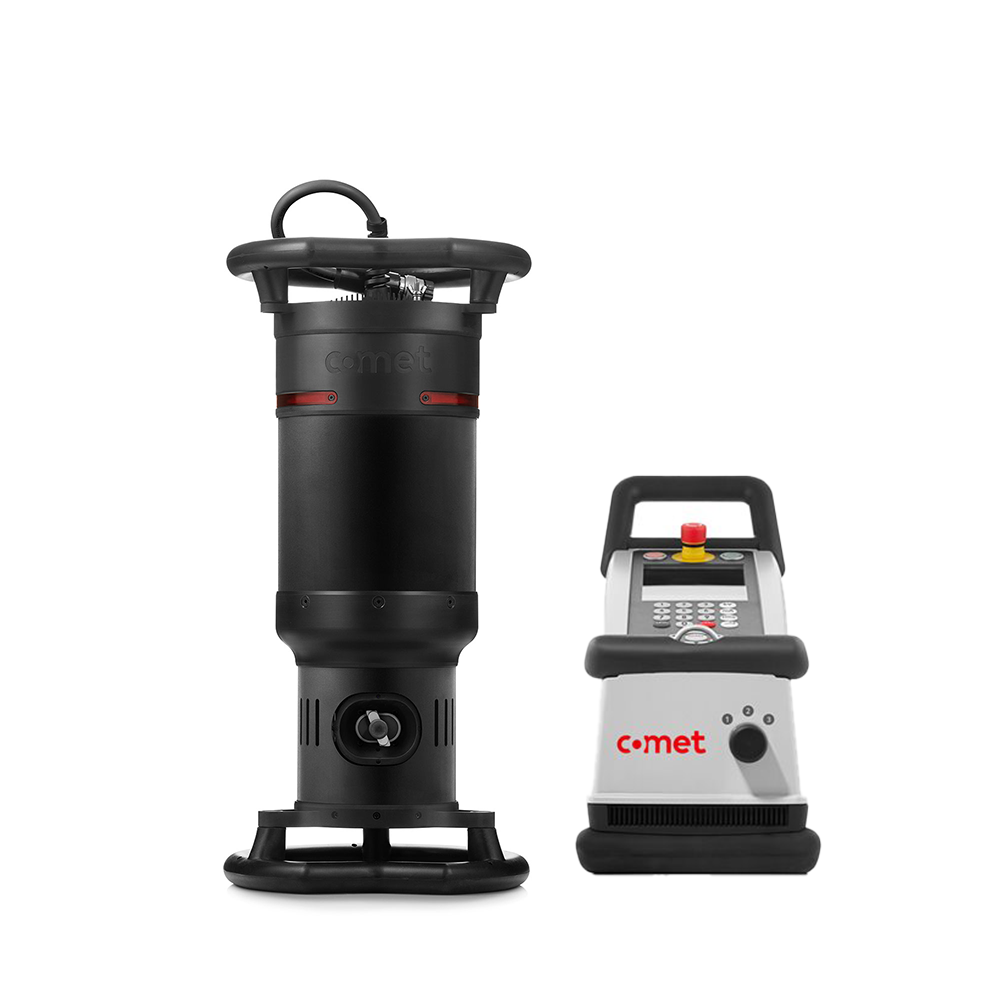

| Model | ECO 160DS | ECO 200DS |
| Type | High-frequency Constant-pressure Ray Machine | High-frequency Constant-pressure Ray Machine |
| Tube Voltage | 20kV~160kV | 30kV~200kV |
| Tube Current | 0.5mA~7.0mA | 0.5mA~6.0mA |
| Tube Power | 750W | 750W |
| Focal Spot Size | 1.0mm | 3.0mm/1.0mm |
| Angle of Radiation | 40°X60° | 40°X60° |
| Weight of Pipe Head | 13kg | 14kg |
| Pipe Head Length | 616mm | 640mm |
| Weight of Controller | 13kg | 13kg |
| IP | IP65 | IP65 |
| Operate Temperature | -20℃~50℃ | -20℃~50℃ |
| Continuous Working Time | Minimum 1 hour | Minimum 1 hour |
| Power Supply Mode | Alternating Current Supply | Alternating Current Supply |
