EVO series portable X-ray system, designed and manufactured in Denmark, is elaborately assembled with top components, providing stable, reliable, durable and value for money. The EVO system is equipped with a quality cermet X-ray tube with a robust composite sleeve to protect all critical components. This series of X-ray systems comply with IP65 standards and can operate normally even in dusty and wet environment.
EVO is ergonomically designed for easy and convenient operation and position adjustment. The EVO series portable X-ray system is suitable for a wide range of ambient temperatures, and operates stably and reliably at - 20 ° C to 50 ° C, even in extreme environments. Intuitive operation interface makes the operation process more intelligent.
Each X-ray source product is manufactured to international safety standards and is individually tested and evaluated to ensure safe and accurate inspection operations. EVO 300DS has 300kV, 1.0mm focus and 900W rated potential X-ray power, with high penetrating power, shorter exposure time and high image resolution, which is very suitable for various difficult on-site inspection operations.
 |  |  | |

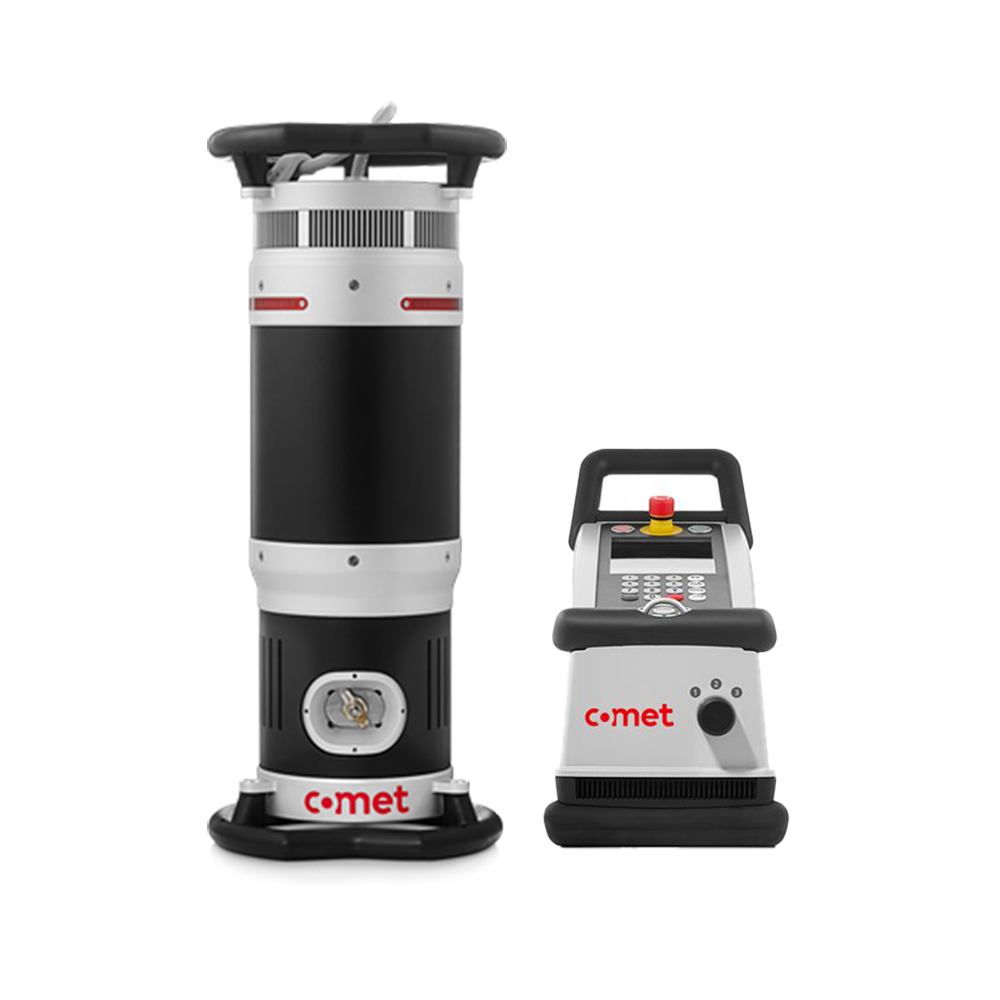

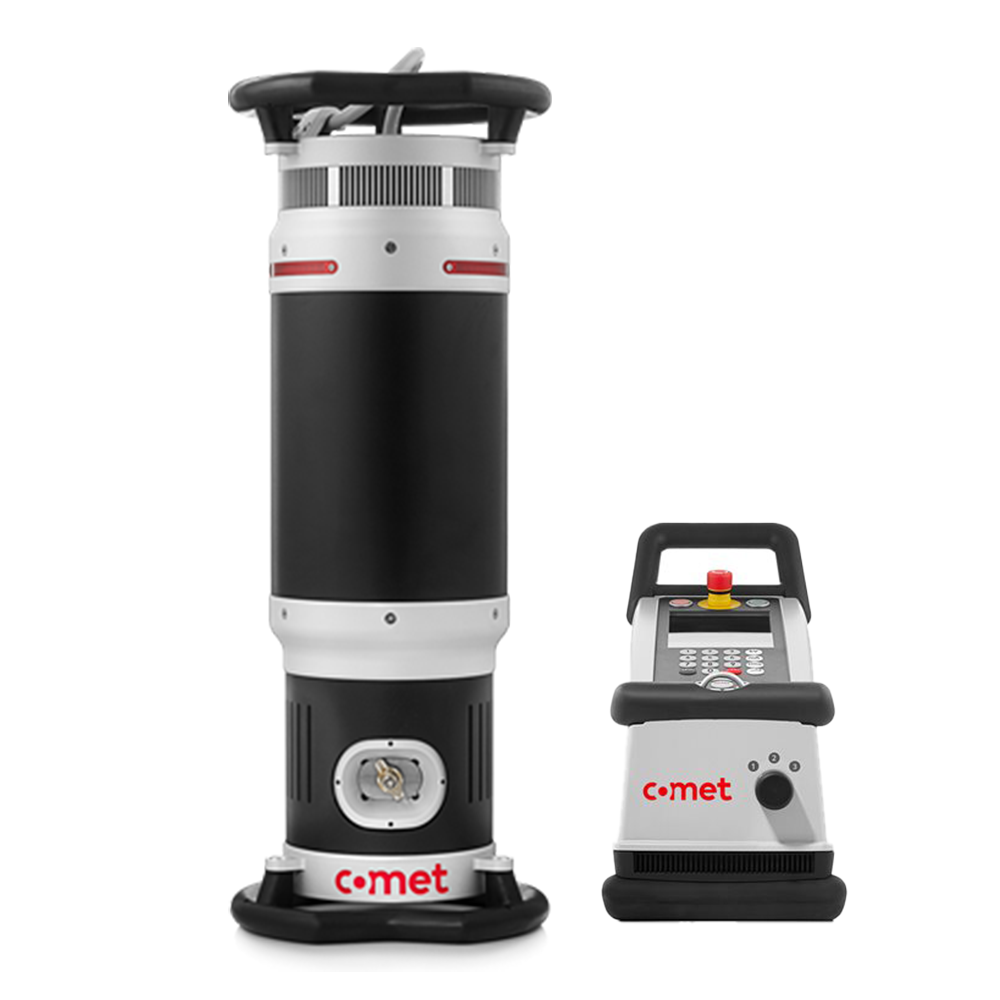

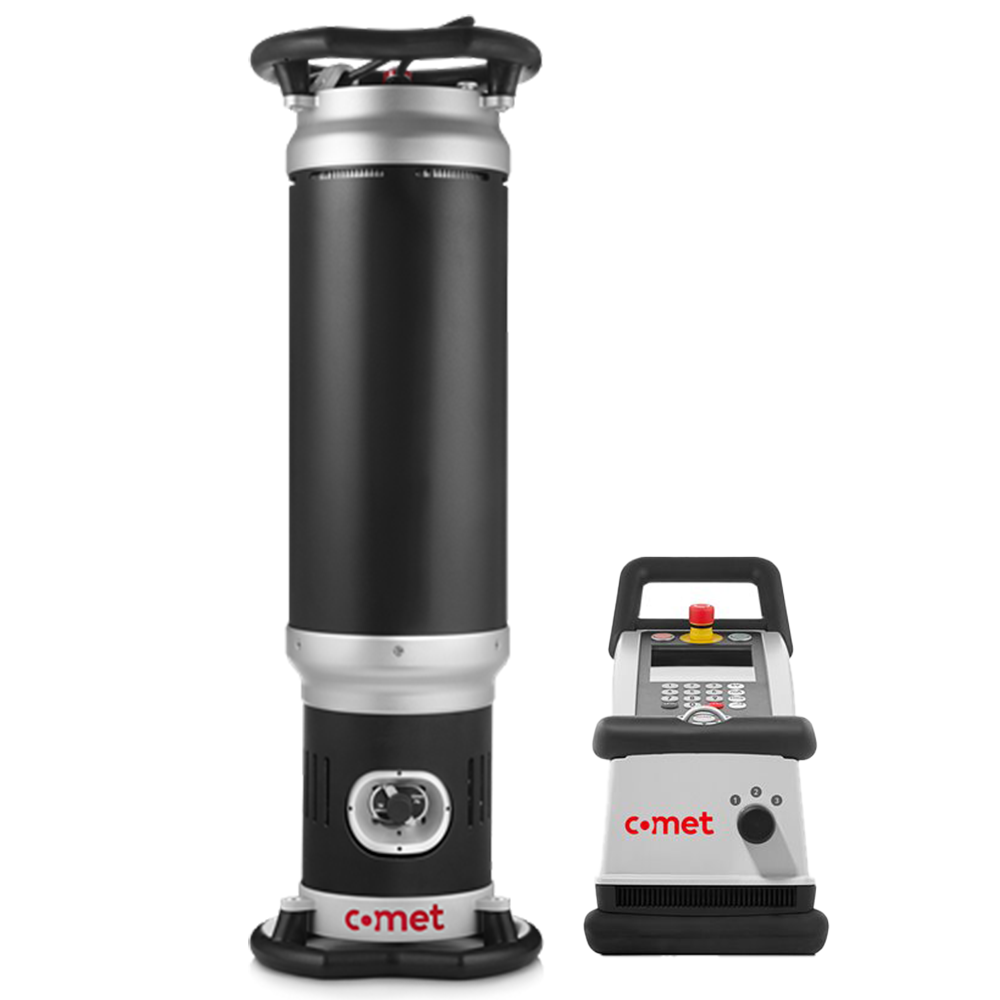

| Model | EVO 225D/EVO 225DS | EVO 300D/EVO 300DS | EVO 300D/1200 |
| Type | High-frequency Constant-pressure Ray Machine | High-frequency Constant-pressure Ray Machine | High-frequency Constant-pressure Ray Machine |
| Tube Voltage | 40kV~225kV | 50kV~300kV | 60kV~300kV |
| Tube Current | 0.5mA~5.5mA | 0.5mA~4.5mA | 0.5mA~6.5mA |
| Tube Power | 900W | 900W | 1200W |
| Focal Spot Size | 3.0mm/1.0mm | 3.0mm/1.0mm | 3.0mm |
| Angle of Radiation | 40°X60° / 30°X60° | 40°X60° / 30°X60° | 40°X60° |
| Weight of Pipe Head | 26kg | 29kg | 36kg |
| Pipe Head Length | 708mm | 774mm | 910mm |
| Weight of Controller | 13kg | 13kg | 13kg |
| IP | IP65 | IP65 | IP65 |
| Operate Temperature | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
| Continuous Working Time | Minimum 1 hour | Minimum 1 hour | Minimum 1 hour |
| Power Supply Mode | Alternating Current Supply | Alternating Current Supply | Alternating Current Supply |
