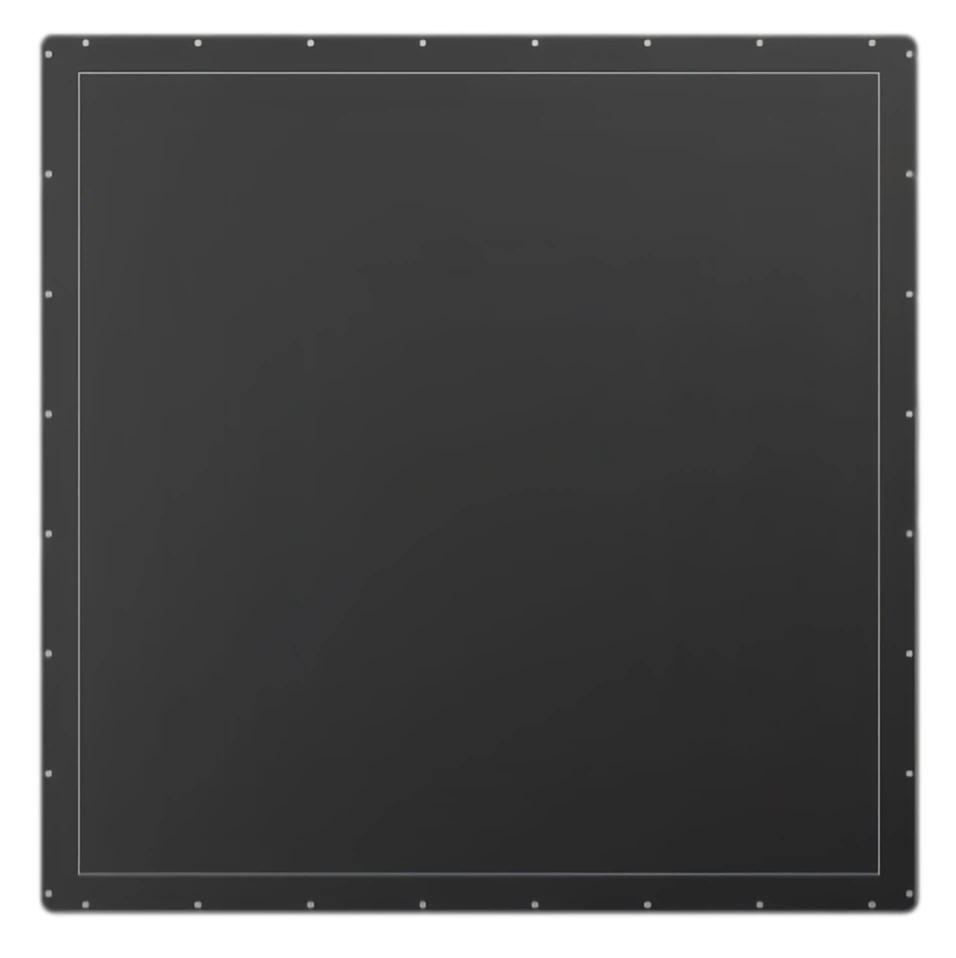

NDT4343MX is a new generation high-resolution 426.7mm x 426.7mm dynamic FPD. It adopts 100 μm pixel pitch, and the scintillator uses CsI:Tl/DRZ-Plus, which provides higher image detail expression and endurance.
| NDT4343MX | |||
| Type of Detector | Amorphous Silicon TFT | Read Mode | 8fps（1×1）；16fps（2×2）；24fps（3×3）；32fps（4×4） |
| Scintillator | CsI:Tl/DRZ-Plus | Pixel Merge | 1 x 1, 2 x 2, 3×3, 4×4 |
| Pixel Pitch | 100um | Energy Range | 40kV-225kV/450kV |

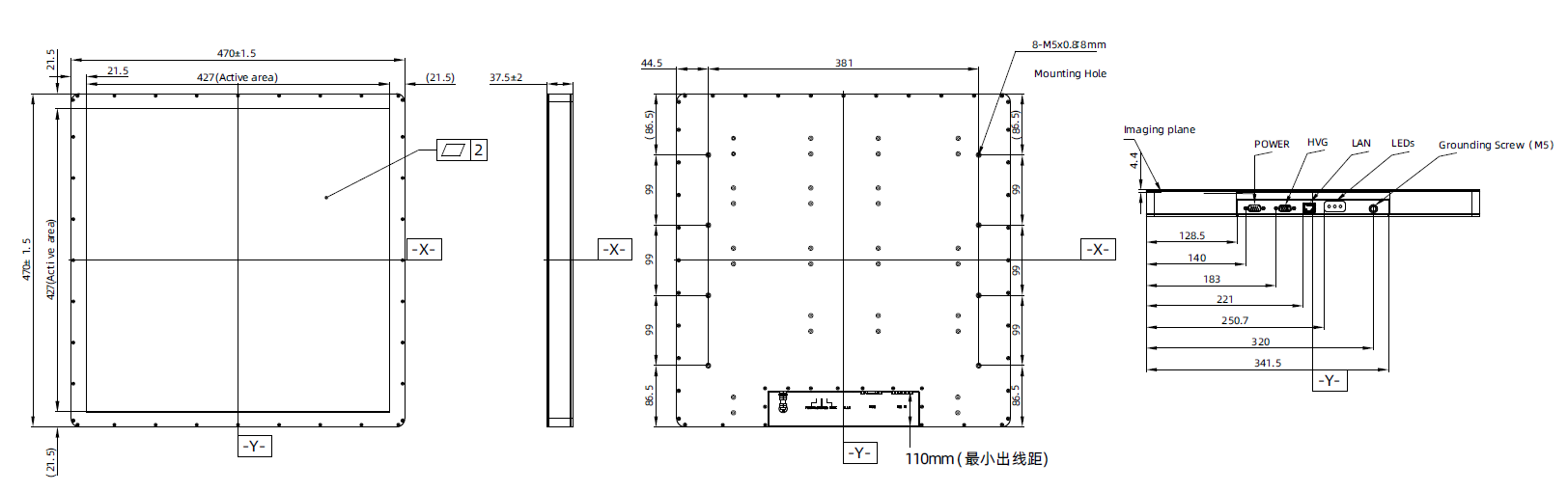

| Imaging Area | 426.7mm x 426.7mm | Overall Dimensions | 470 mm × 470 mm× 37.5 mm |
| Pixel Matrix | 4267 x 4267 | Weight | 17kg |
| ADC | 16bit | Power Dissipation | 30W |
| Trigger Mode | Continuous Acquisition, Pulse Synchronization | Power Supply | AC/DC |
| Data Interface | 10G Ethernet | Operate Environment | Temperature:10℃-40℃ |
| Storage Environment | Temperature:-10℃-55℃ | ||
